ODS for VS Code

The extension brings ODS's answers into the editor where the SQL is written. It is a thin TypeScript client (ADR-0002: other languages are thin consumers only). The logic stays in Rust:

• ods lsp: the clean-room language server planned in M5 (#67–#72). It supplies code lenses, hovers, diagnostics and quick fixes.
• The CLI: runs ods state … in the integrated terminal and returns JSON (--output json) for the views.
• Views: reuse the dashboard's page (ods-web) in a webview, so lineage and plan views have one implementation.

The mock-ups use VS Code's default dark theme and generic window chrome, with a plain hexagon as the ODS icon in the activity bar. They show no real logos and no other extensions' names.

Screens

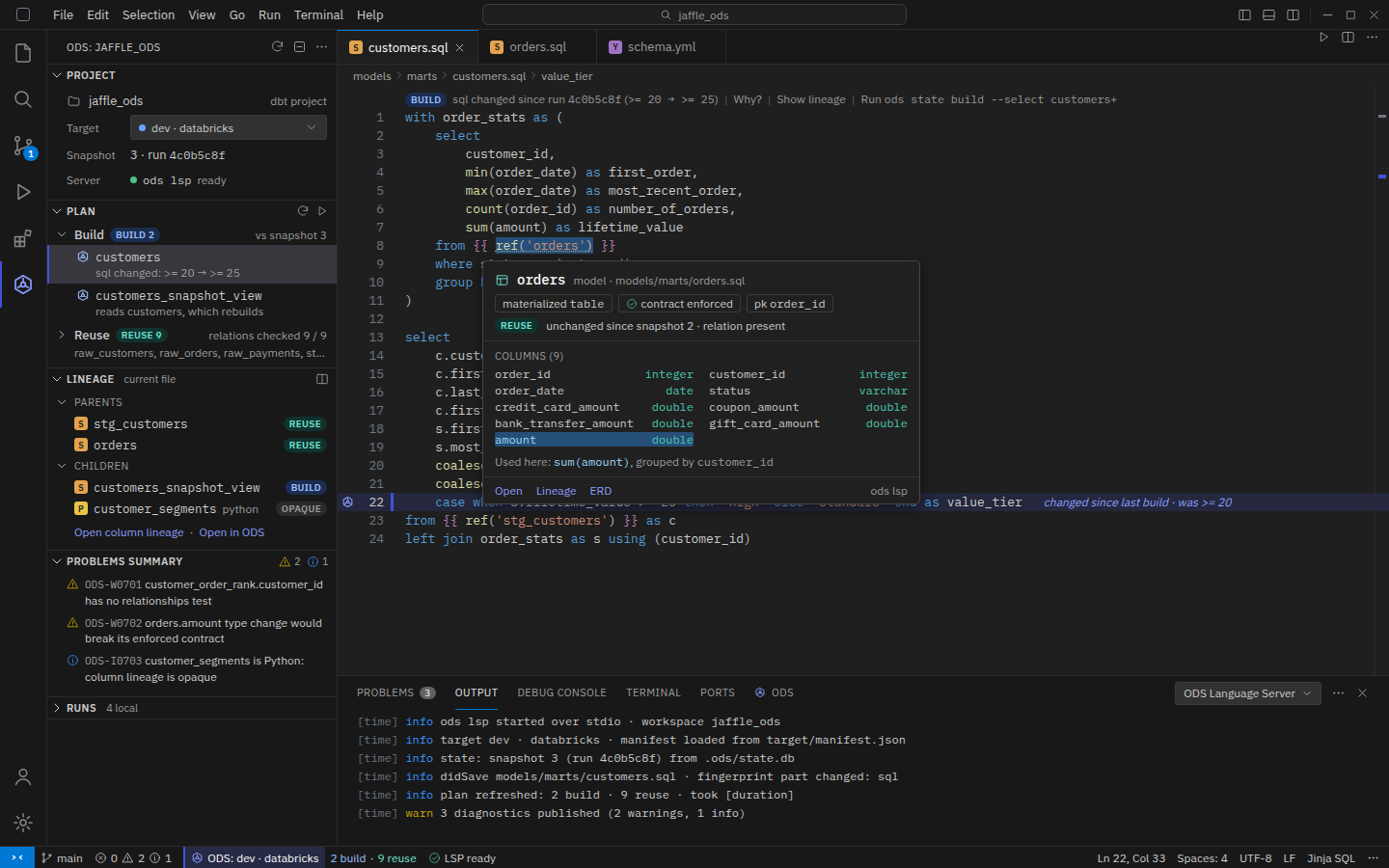

Editing a model

• Side bar: the project and target, the current plan (Build and Reuse, each with a short reason), the current file's parents and children, a problems summary, and local runs.
• Code lens above the model: BUILD · sql changed since run 4c0b5c8f (>= 20 → >= 25) | Why? | Show lineage | Run ….
• Changed line: the line that caused the decision is marked in the gutter.
• Hover on a ref():
• the model's materialization, contract and key;
• its current decision;
• its columns with types, with the ones this file uses highlighted.
• Status bar: target, plan counts and language-server state.

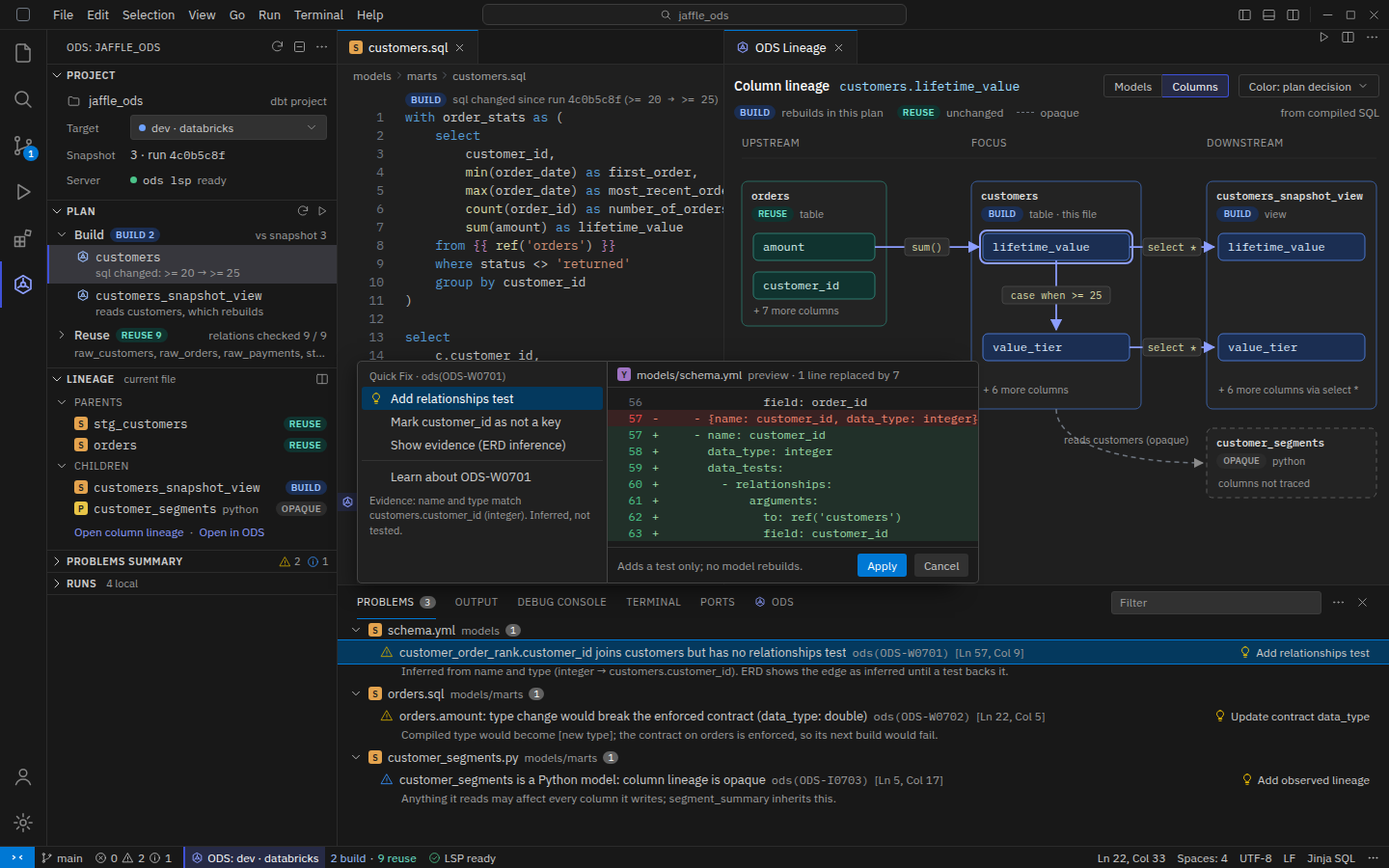

Lineage and diagnostics

• Split editor: the SQL next to a column-lineage view coloured by plan decision. Opaque (Python) models are drawn dashed.
• Problems panel: ODS diagnostics, each with a code and a quick fix. The codes are illustrative; ODS has no warning codes yet.
• A join key with no relationships test. The quick fix previews the YAML test it would add, and says it adds a test only, with no model rebuilds.
• A type change that would break an enforced contract.
• A Python model whose column lineage is opaque.

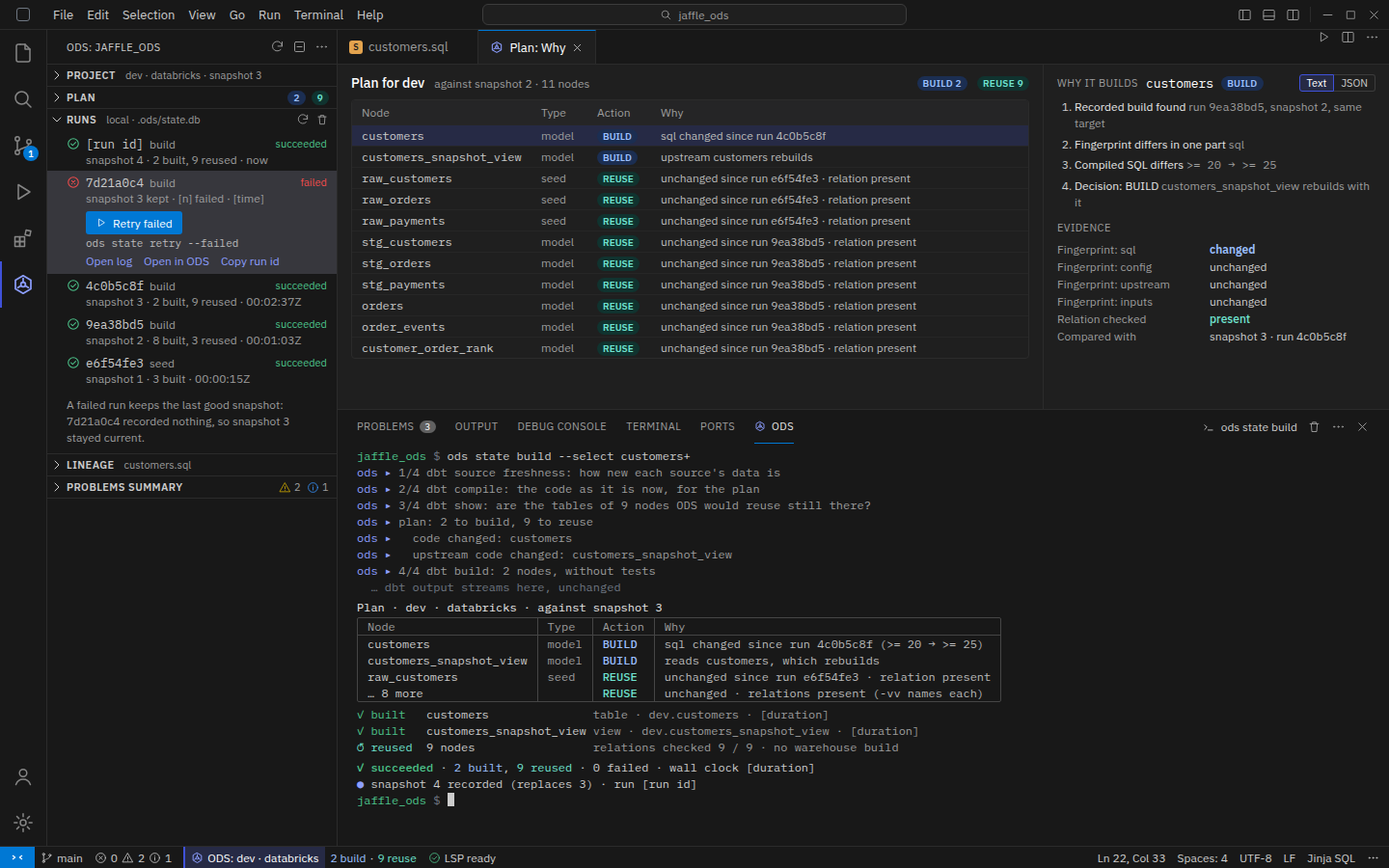

Runs and why

• ODS output panel: an ods state build --select customers+ run as the CLI prints it: the plan, per-node results, then "2 built, 9 reused" and the snapshot recorded.
• Side bar: local runs from the state store. A failed run offers Retry failed (ods state retry --failed).
• Plan: Why view:
• the reason chain for a node;
• evidence rows: the fingerprint components that changed, and the relation check.

What it needs from ODS

Feature	Source	Exists today?
Plan, reasons, evidence	ods state plan --output json	yes
Runs	ods state history	yes
Column lineage, impact	ods lineage columns/impact	yes (preview)
Relationship findings	ods erd generate	yes
Code lenses, hovers, diagnostics, quick fixes	ods lsp	no: M5 (#67–#72)
The extension itself	#107	no

Still to design

• The first-run experience when no state store or compiled manifest exists.
• A light theme.
• Settings for choosing the ods binary and the target.
