Expanded CLI 0.0.9 release

Status: published 2026-09-22. Merged in #195 as c645220 and released by the protected workflow in dependency order: rs-rich-v0.0.5, rs-rich-ext-v0.0.7, rs-rich-art-v0.0.7, rs-rich-cli-v0.0.9. Each run's registry-consumer step built the exact published versions.

The cohort is core 0.0.5, ext 0.0.7, art 0.0.7, CLI 0.0.9. Live registry checks on 2026-09-21 returned 404 for all four proposed versions and 200 for the previous core 0.0.4/ext 0.0.6. Publish core first, then ext/art, then CLI. Recheck registry state at publication time; no release tag or upload is part of this preparation.

Evidence

• Default formatting, Clippy and workspace tests pass, including core goldens.
• All-feature Clippy/tests, defaultless ext/art/CLI builds and Rust 1.90 checks pass.
• Cross-feature tests cover nested transformed images, diagnostic HTML/SVG and identical serial/parallel Bayer batch exports with exact planned names.
• Live virtual-screen tests and real PTY resize/ordinary-write/cleanup checks pass.
• Python release automation regressions pass.
• Staged package verification passed for all four publishable crates, including packaged examples and dependency manifests. This is not registry publication readiness.
• Final default suite: 642 passing tests. The initial all-feature workspace suite passed 647 tests; after review fixes, the affected ext/art all-feature suites passed 142 tests, with all-feature workspace Clippy and Rust 1.90 rechecked. Strict MkDocs and generated CLI/version references pass.
• Independent review found six Important defects and one Minor issue, all reproduced and fixed with regressions. No Critical issues. See the review and disposition. The reviewer assessed the earlier commit; no second review approval is claimed.

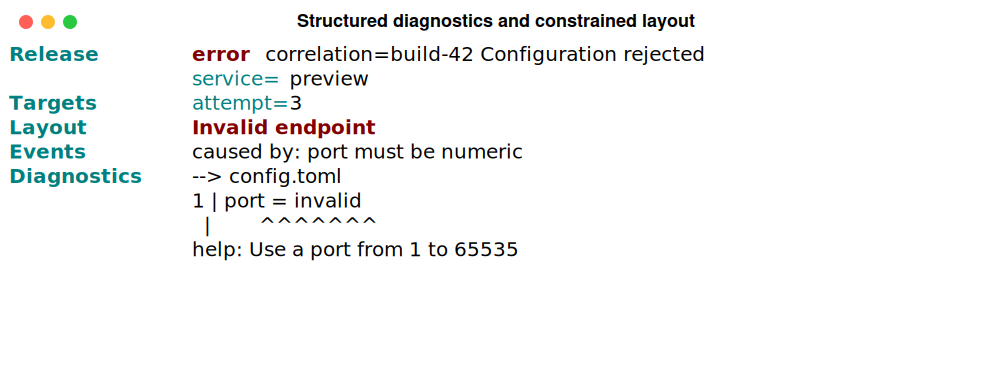

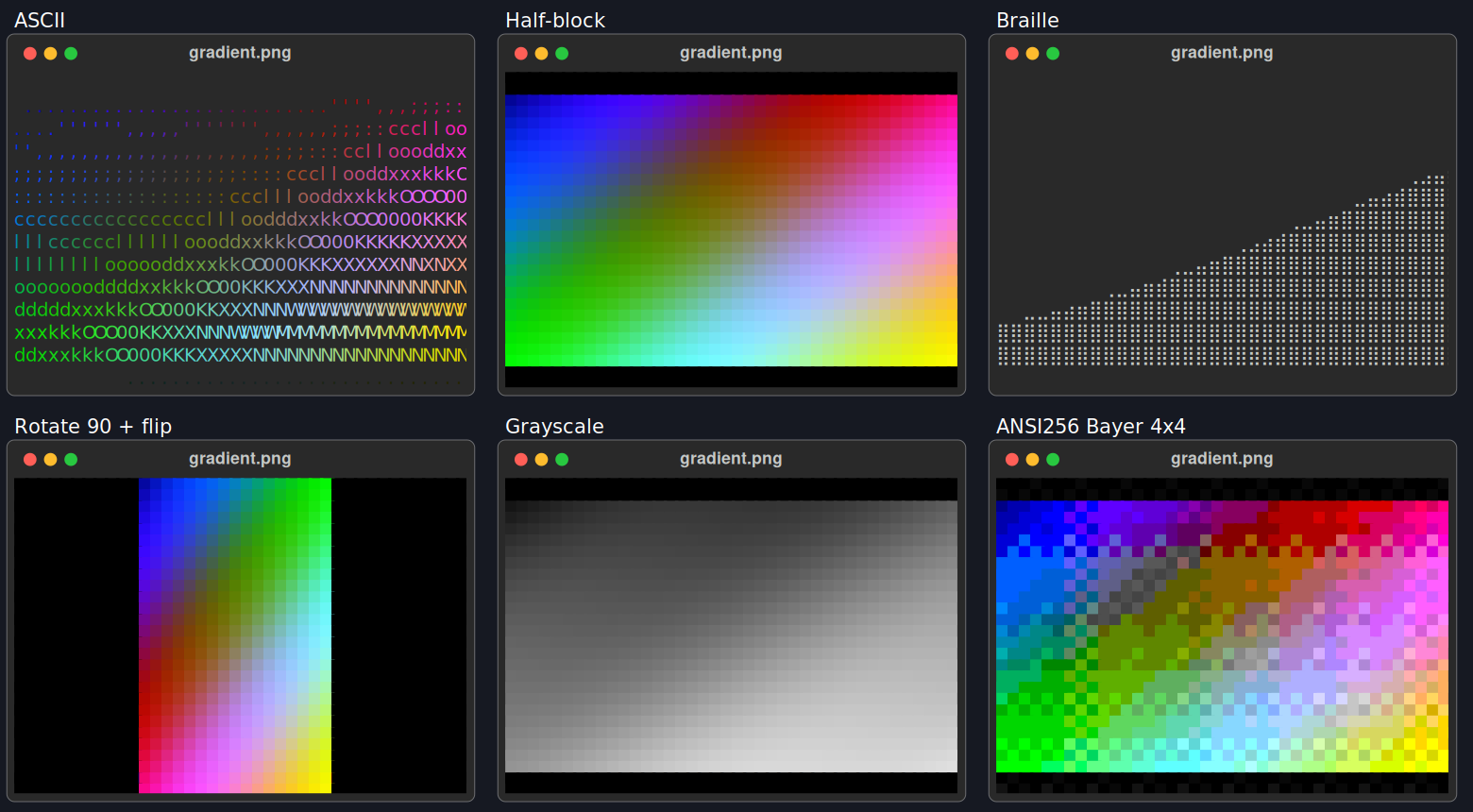

Reproduce with python scripts/capture_expanded_v9.py. Raw source, HTML/SVG and hash provenance are in docs/media/expanded-v9. The same-source Sixel artifact contains actual PTY protocol output, not a terminal-emulator screenshot. The comparison contains actual exports; only captions and grid placement are added. No synthetic terminal image.

Release test (2026-09-22)

Run on the release branch after the two P2 review fixes (tiny-viewport Live writes, CRLF diagnostic snippets), with Rust 1.98.1 stable, NO_COLOR unset.

Check	Result
python scripts/validate_release.py --tag rs-rich-v0.0.5	All 15 steps pass: fmt, three Clippy configurations, 830 Rust tests (0 failed), lean CLI tests, 33 Python release tests, version/CLI-reference checks, locked check, staged packages
capture_golden.py against real rich 15.0.0 (dedicated venv, no rich-cli)	Fixtures regenerate byte-identically
release.py plan per tag	rs-rich-v0.0.5, rs-rich-ext-v0.0.7, rs-rich-art-v0.0.7, rs-rich-cli-v0.0.9 each select exactly their own package
release.py plan v0.0.9	Rejected: rs-rich-art: manifest says 0.0.7, tag says 0.0.9
crates.io API	404 for all four new versions; 200 for published core 0.0.4 and CLI 0.0.8
Consumer install	cargo install from the packaged rs-rich-cli-0.0.9 source, with siblings patched only to their packaged .crate contents: release build succeeds, rich --version reports 0.0.9
Codex P2 (serial --collision suffix with output aliases, reported on 54d651f)	Does not reproduce after #196: a symlinked output directory is refused before any write (exit 3); a symlinked output file is replaced rather than written through. Pinned by serial_suffix_never_writes_through_output_aliases
Library consumer	Fresh crate pinned to =0.0.5/=0.0.7 packaged core/ext renders a CRLF snippet with no carriage returns and a width-1 Live print that delivers every character

The patched consumer stands in for registry resolution until the dependencies are published; the release workflow's exact-version registry consumers remain required.

Tags to publish

Independent, annotated tags on the merged main commit, in this order. Verify each registry consumer before tagging dependents. Do not use a coordinated v0.0.9.

1. rs-rich-v0.0.5
2. rs-rich-ext-v0.0.7 and rs-rich-art-v0.0.7
3. rs-rich-cli-v0.0.9

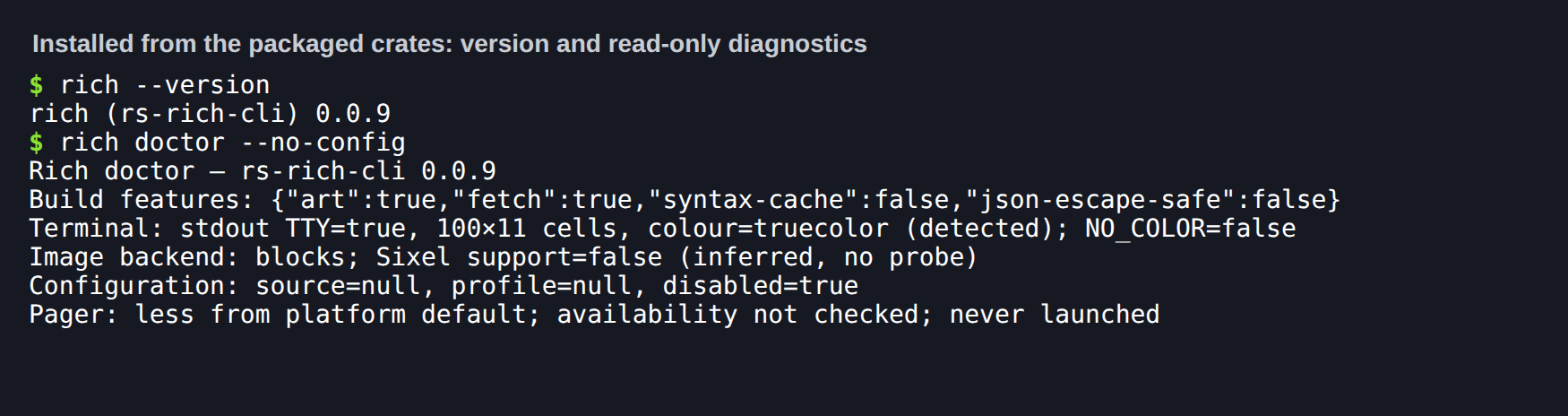

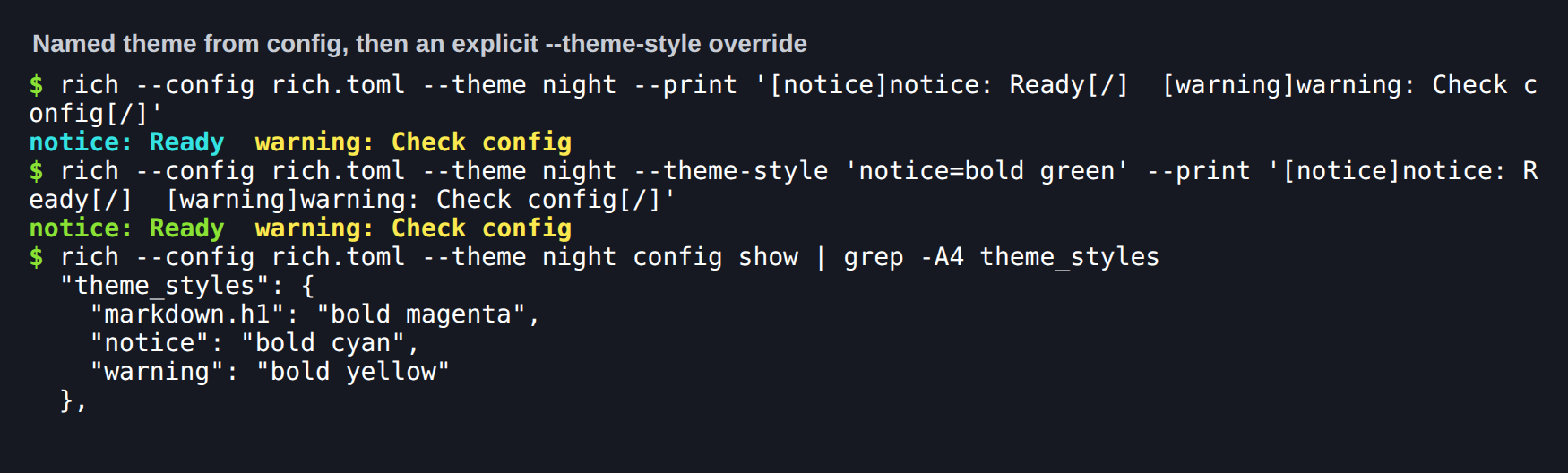

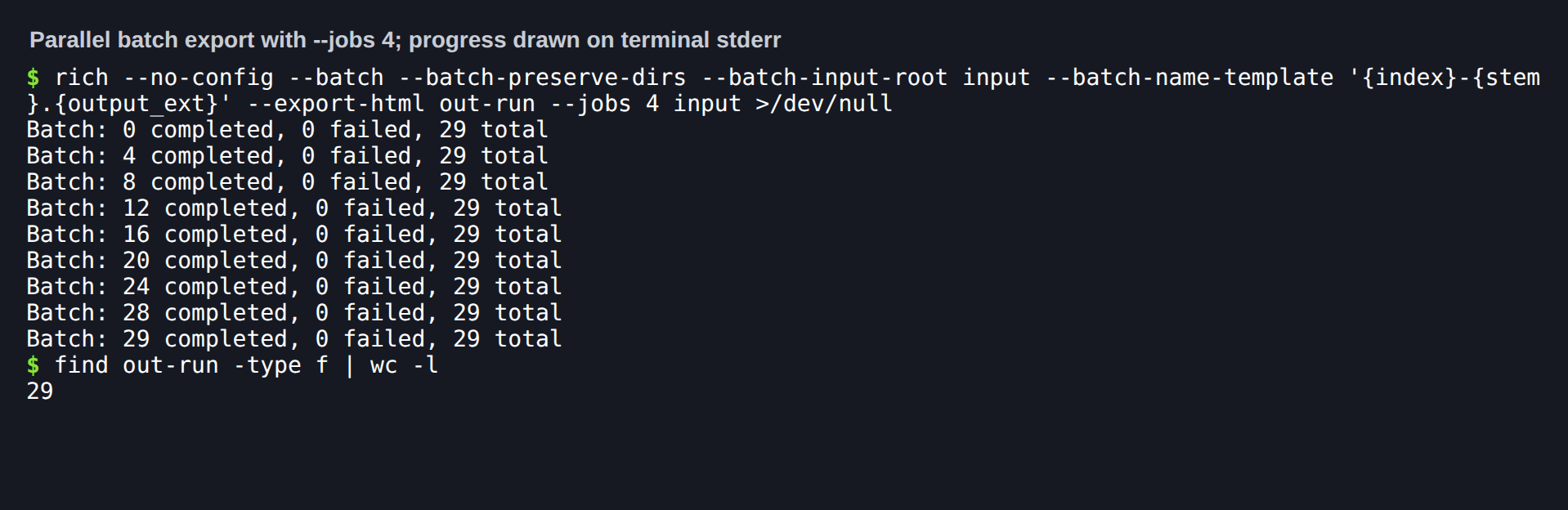

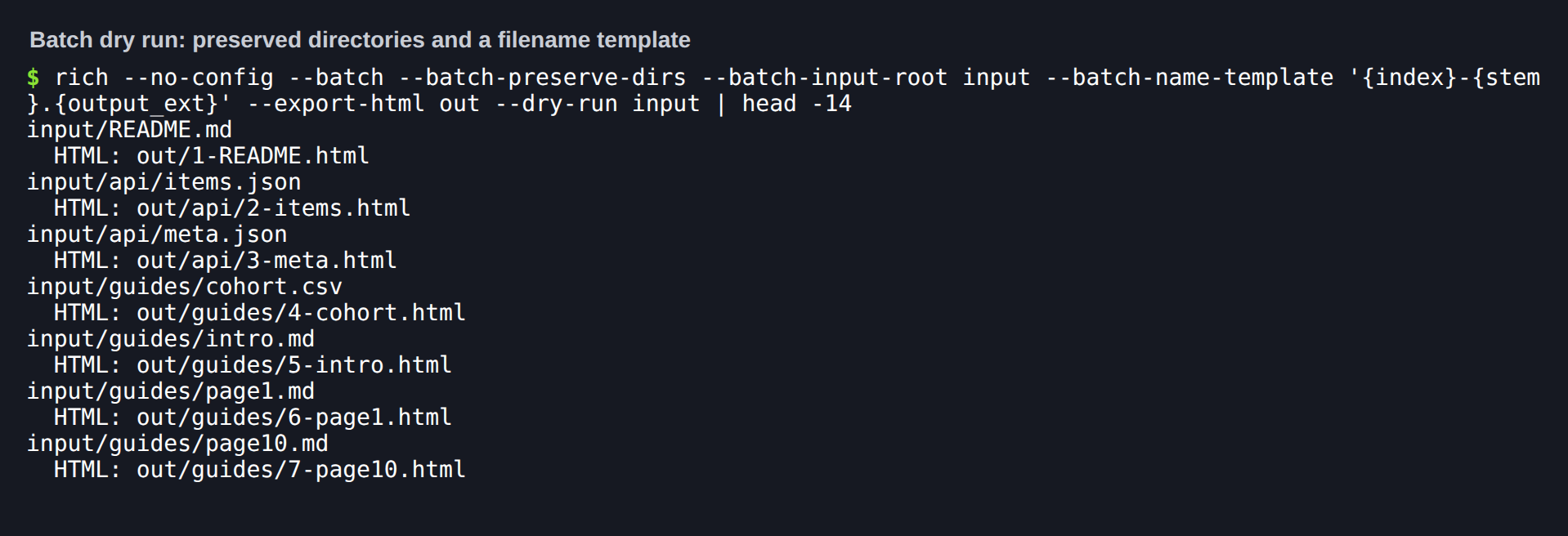

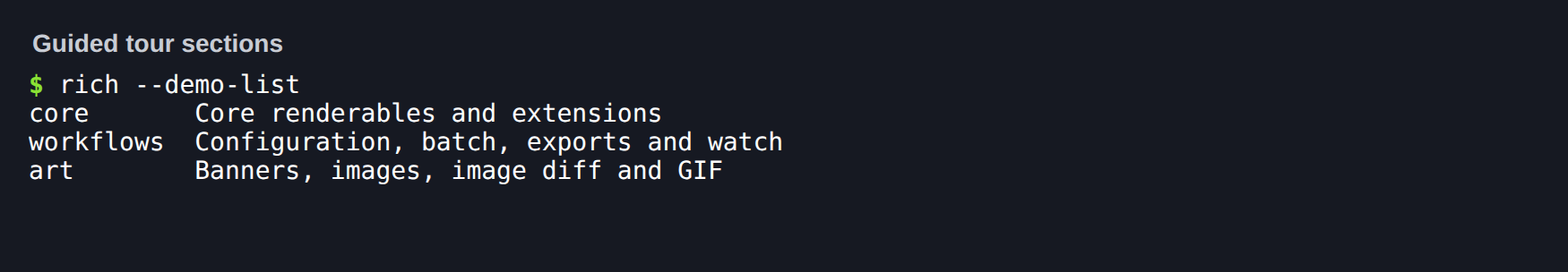

Installed-binary screenshots

Each image is a real PTY run of the installed consumer binary (TERM=xterm-256color, truecolor); the captured bytes are replayed verbatim into xterm.js in headless Chromium. Only the caption line is added. Hashes of the raw PTY bytes and PNGs are in provenance.json; reproduce with scripts/terminal_shots/.

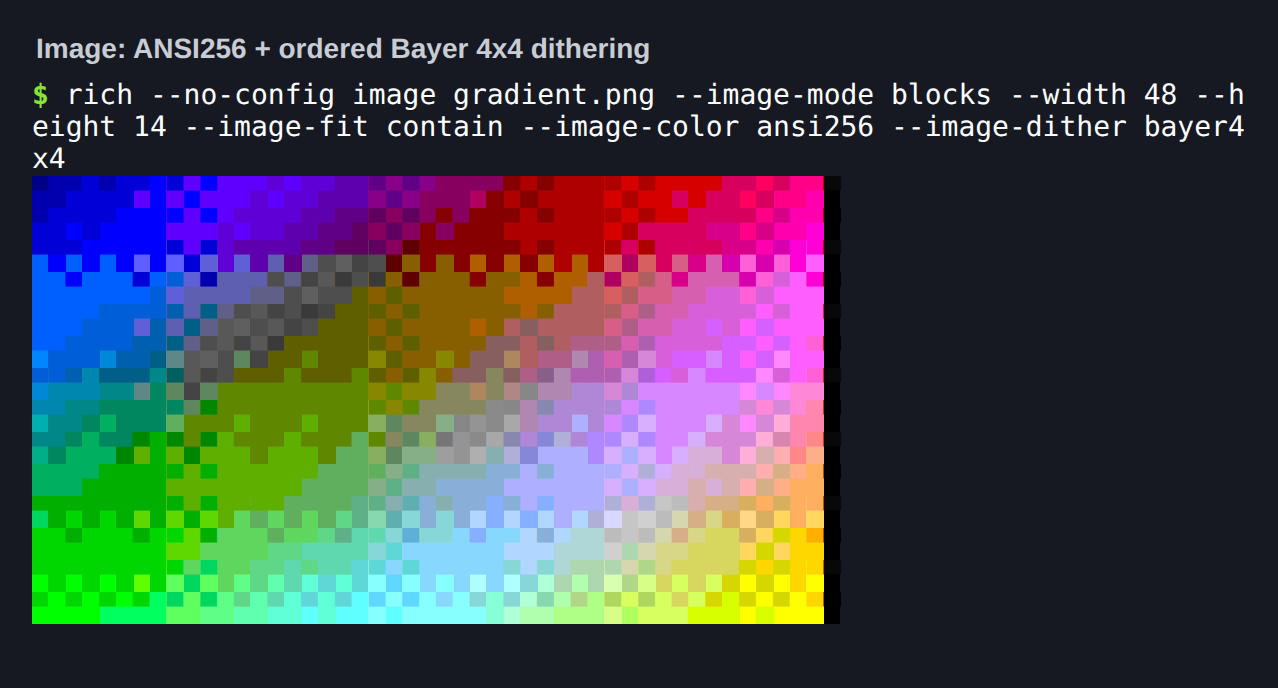

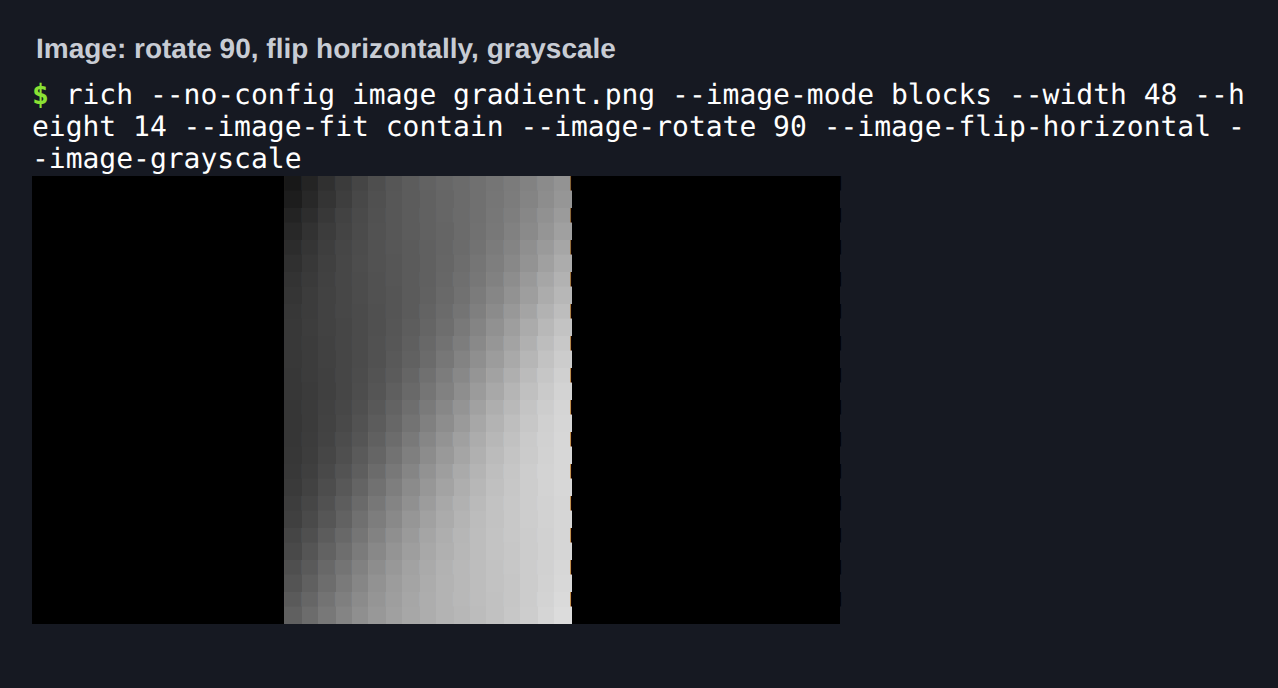

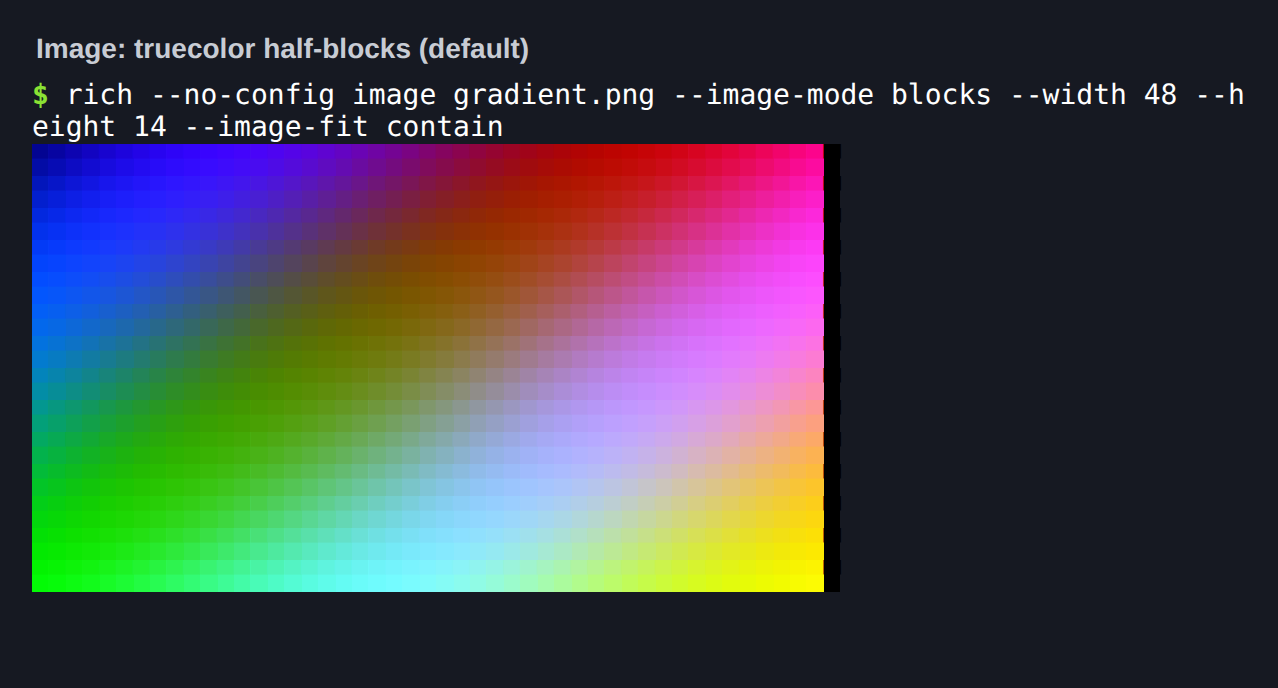

The one-column black edge on the contained images is letterboxing: the 160×96 source fitted into a 48×28-pixel box is 46.7 pixels wide.

Acceptance mapping

Issues	Delivered branch acceptance	Disposition before merge
#132, #133	Explicit nested context/targets, injectable capabilities, doctor provenance	Review; close after merged acceptance
#134, #149	Deterministic bounded constraints, intrinsic sizing, shared overflow	Review; existing core Layout remains usable
#136, #146, #151	Typed events, ordered fields, diagnostics, supplied snippets, adapters, export fidelity	Review; existing logging/traceback unchanged
#145	Single-writer independent regions, log routing, bounded resize, cleanup	Review; coordinated writes must use the handle
#150	Optional target-controlled JSON/ANSI/segment snapshots and first-difference output	Review; raw render line endings preserved
#142, #157	Templates, preserved subdirectories, preflight, collision rules, bounded workers	Review; UTF-8 CLI path limitation documented
#123, #124	All dot mappings, partial/odd cells, transparency and same-source outputs	Review; optional quadrants deferred
#6, #10	Selected Live prerequisites and optional log/tracing integration	Keep open for broader upstream parity
#125	Ordered Bayer for ANSI256 ASCII/blocks	Keep open for broader color roadmap
#126	Rotation/flips/grayscale and compositing/contain behavior	Keep open for remaining transforms/alpha roadmap
#144	Explicit target routing and migration documentation	Keep open for future renderer/backend APIs

Boundaries and migration

New rendering implementations live in ext/art. The sole core addition is the sanctioned optional environment trait seam, preserving legacy defaults. No required Renderable methods or ConsoleOptions/ImageOptions fields were added.

Source snippets are caller-supplied UTF-8 strings; no source-file discovery occurs. Snippet and underline rows crop together while prose can fold. Applications install and filter their own optional log/tracing adapter. Expanded Value and Dither enums require downstream exhaustive matches to account for new variants.

A Live coordinator owns one writer for its lifetime. All concurrent console text must route through its handle. One guard column and one insertion row are reserved; resize requires callers to rerender region contents. Finish and create a new coordinator to switch terminal/pipe policy. Cleanup cannot run after SIGKILL/abort.

New batch naming modes accept export directories. Existing flat naming and the three actual collision policies are retained. No new skip policy is introduced. Generic one-shot CLI streams retain one capture pass; decoded images can render separately against terminal and export targets. Exports filter terminal controls.

Batch filesystem hardening (#196)

The parent now retains output directory handles and publishes successful worker exports from private staging. Descendant symlink/junction traversal is rejected; missing directories are created relative to retained handles. Overwrite replaces entries rather than truncating existing inodes, protecting other hard links and symlink targets. No-overwrite uses exclusive creation, including for collisions introduced after planning. The exact directory-object boundary, metadata changes, partial-new-file behavior and cancellation semantics are documented in the CLI batch contract.

Controlled tests cover late leaf links/collisions, parent replacement, missing-root ancestor replacement, traversal rejection and failed overwrite copies. Windows CI also exercises hard links, exclusive creation and junction rejection. Local follow-up verification: 655 default tests pass, including 12 focused Unix race/privacy/cancellation tests; default and lean CLI Clippy, Rust 1.90 all-feature checks, Windows lean all-target cross-check, strict MkDocs and real batch cancellation/progress checks pass. Fresh independent review found permission and cancellation defects; both were reproduced and fixed, and the final review found no remaining blockers within the documented threat model. Real Windows ACL, junction and publication behavior is gated by the extended Windows CI job.
