Authoring micro assets¶

A micro asset is small: 2×1 cells by default, which a terminal with the usual 8×16-pixel cells draws from a 16×16-pixel image (1×1 is 8×16). Anything you give it is scaled to exactly that, so an asset reads best when it is drawn for that size: a bold silhouette, two or three colours, a one-pixel outline, nothing thinner than a pixel.

This page covers making one: the pipeline (rich micro create, or rich_micro::pipeline in code), the package it writes, what to put in the manifest, and how to check it before you share it. See the CLI for every rich micro command.

From an image to a package¶

rich micro create logo.png --name team/logo --alt "our logo, a blue fox" \
    --emoji 🦊 --text TL --license MIT --add

create reads a PNG, APNG, GIF or JPEG (up to 8192 pixels a side and 32 MiB), runs every frame through the pipeline, and writes a package the registry accepts; it reads the package back before it reports success, and removes it if it would not load. By default it writes ./team.logo/ (the name, with / as .); --output PATH puts it elsewhere, --archive writes one .richmicro zip file, and --add writes it into your user layer (~/.config/rich/micro/, or the project's .rich/micro/ with --project).

The pipeline, in order, for every frame:

Step	Options	Default
Adjust	`--brightness F`, `--contrast F`, `--gamma F`, `--grayscale`	as is
Transparency from a background colour	`--transparency key:#rrggbb`	off
Fit to the cells	`--fit contain\\|cover\\|stretch`, `--anchor center\\|top\\|…\\|bottom-right`, `--size 2x1\\|1x1`, `--cell WxH`	contain, 2x1, 8x16
Sharpen	`--sharpen RADIUS` (an unsharp mask, e.g. `0.8`)	off
Transparency	`--transparency threshold[:ALPHA]\\|keep\\|flatten:#rrggbb`	`threshold:128`
Palette	`--colors truecolor\\|256\\|16\\|grayscale`, `--dither none\\|floyd-steinberg\\|bayer\\|atkinson`	truecolor

Then an animation is deduplicated (a frame equal to the one before it only lengthens it) and rate-limited (frames under 40 ms merge into the next), up to 240 frames. Everything here is rs-rich-art's image code: the same fitting, adjustments and dithering rich --image uses.

Some advice:

Fit. contain keeps the whole picture and leaves transparent margins; cover fills the cells and crops (use --anchor to keep the part that matters); stretch distorts. A square source in 2×1 cells fits exactly.
Downscaling blurs. A 512-pixel logo shrunk to 16 pixels loses its edges; --sharpen 0.6 to 1.0 brings them back. Better still, start from a source drawn small.
Transparency. Terminal backgrounds vary, so leave the background transparent. GIF animations and most terminal protocols draw pixels either on or off, which is why the default cuts alpha at half; keep keeps soft edges in the still PNG only. A JPEG has no alpha: key:#ffffff makes its white background transparent.
Palette. --colors 256 makes an asset look the same on a 256-colour terminal as on a true-colour one.

In code the pipeline is rich_micro::pipeline::Pipeline and the writer rich_micro::create::write_package:

use rich_art::image::{DynamicImage, Rgba, RgbaImage};
use rich_micro::create::{write_package, PackageSpec};
use rich_micro::pipeline::Pipeline;
use rich_micro::CellSize;

let image = DynamicImage::ImageRgba8(RgbaImage::from_pixel(32, 32, Rgba([0, 160, 0, 255])));
let processed = Pipeline::new(CellSize::default()).process_image(&image);
let spec = PackageSpec::new("team/ok", "a green square").text("ok");
let asset = write_package(std::path::Path::new("team.ok"), &spec, &processed, false)?;

From Python, rs_rich.micro.micro_create_package(image, dest, name=…, alt=…) does the same.

Recorded, start to finish¶

A 128×128 rocket drawn for these docs (rocket.png), previewed through the pipeline, then made into an asset and used:

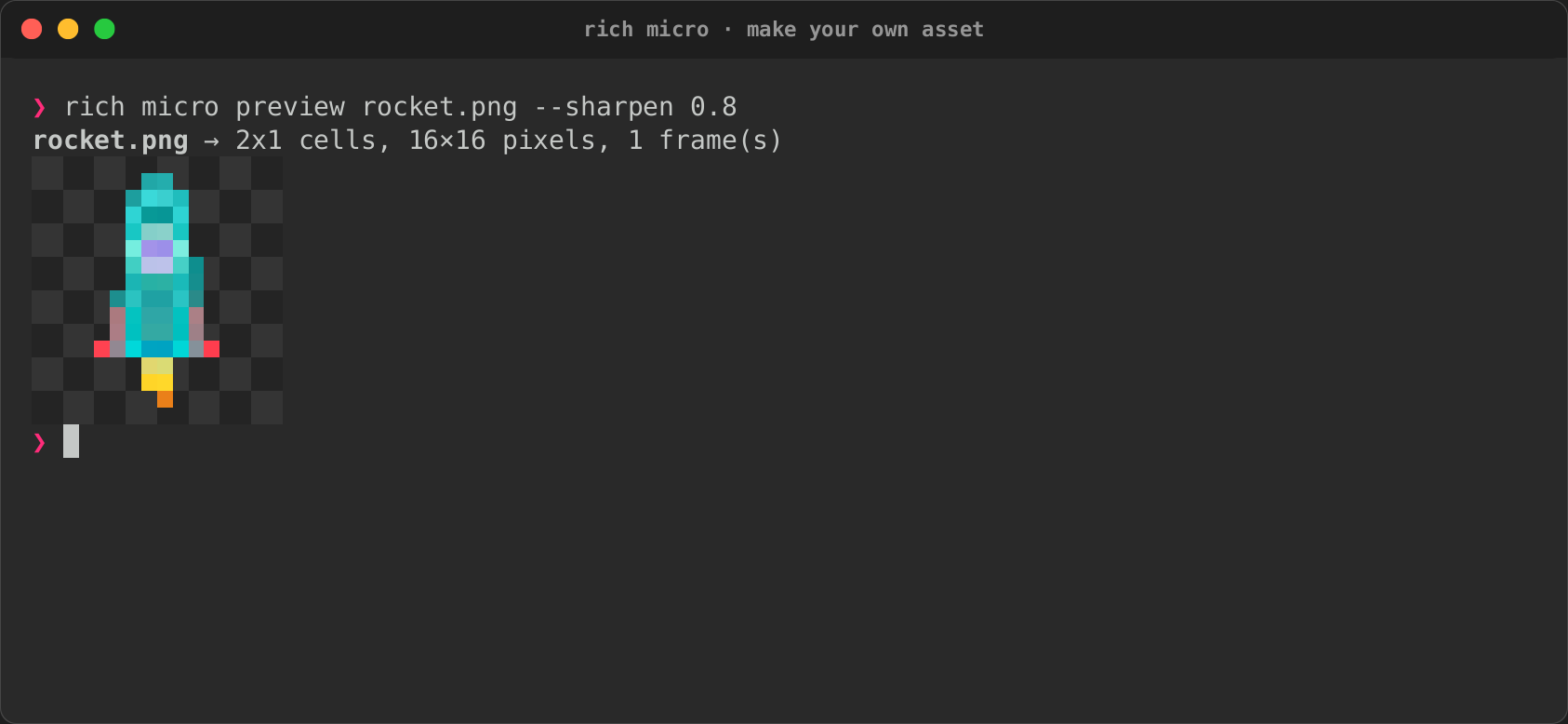

rich micro preview rocket.png --sharpen 0.8
rich micro create rocket.png --name team/rocket --alt 'teal rocket, lifting off' \
    --emoji 🚀 --text '^^' --license MIT --sharpen 0.8 --add

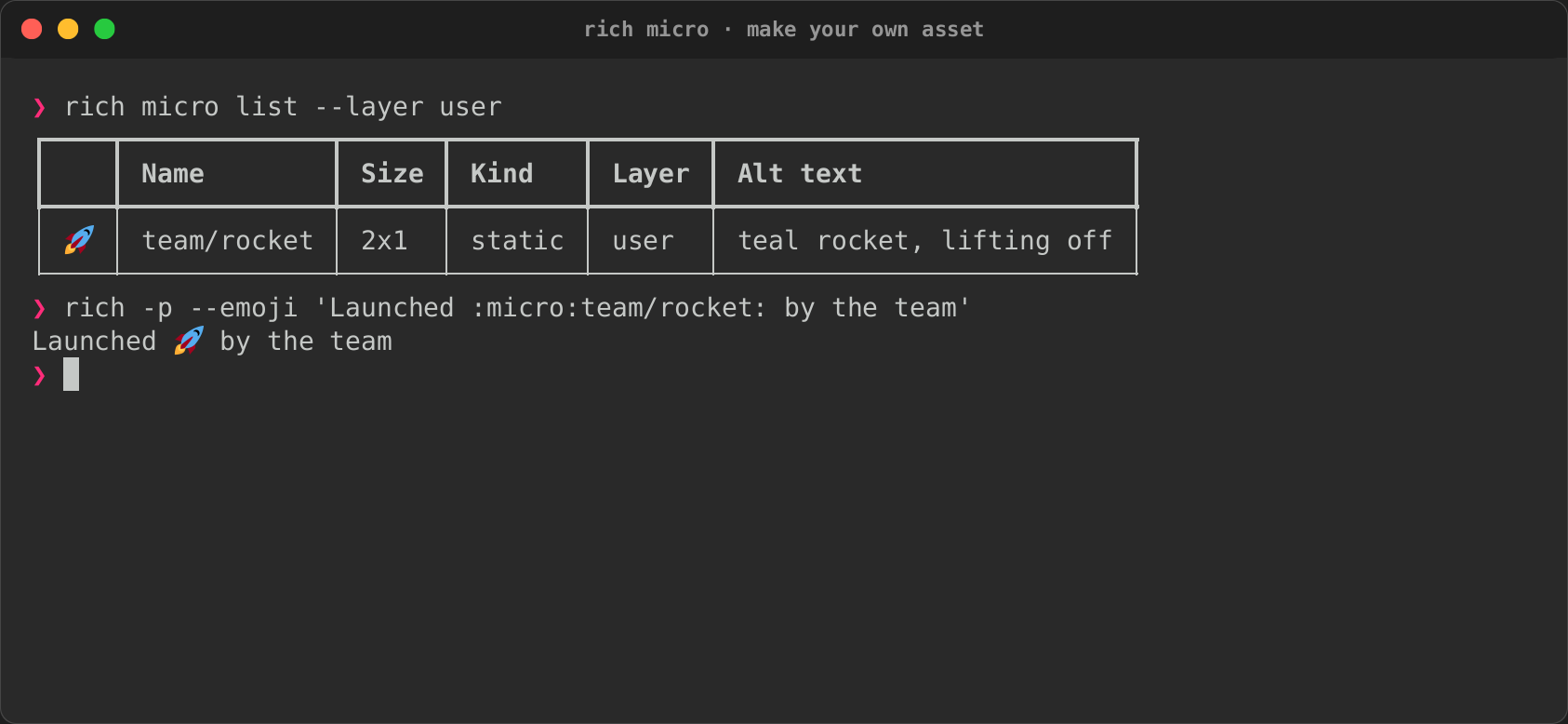

rich micro list --layer user
rich -p --emoji 'Launched :micro:team/rocket: by the team'

Through the pipeline	Added and used

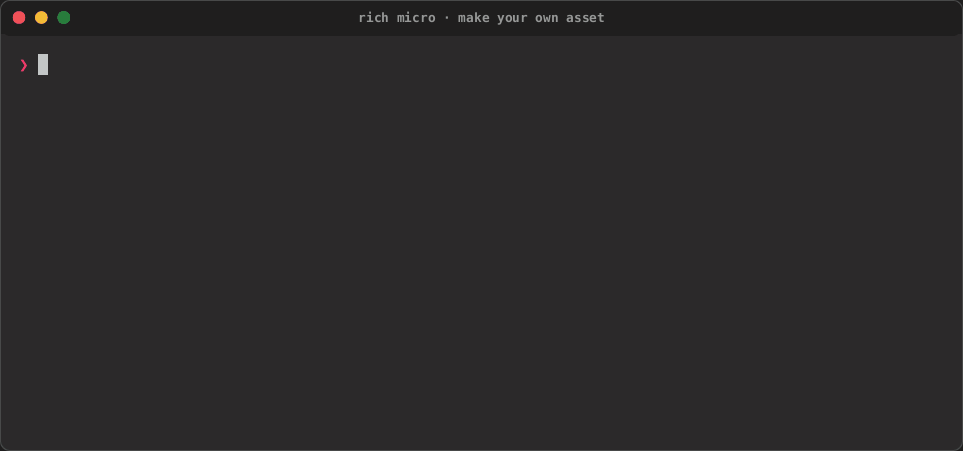

The authoring tape playing

Tape · Cast · GIF

The rocket is tall and thin, so contain leaves transparent columns on either side. That costs nothing in a pixel mode, but the 2×2 half-block samples of a mostly transparent asset come out nearly empty, which is one more reason to give every asset an emoji. --fit cover crops to fill the cells instead.

Preview at the real cell size¶

rich micro preview team/logo        # an asset by name
rich micro preview team.logo        # a package on disk
rich micro preview logo.png --fit cover --sharpen 0.8   # the pipeline, before you create

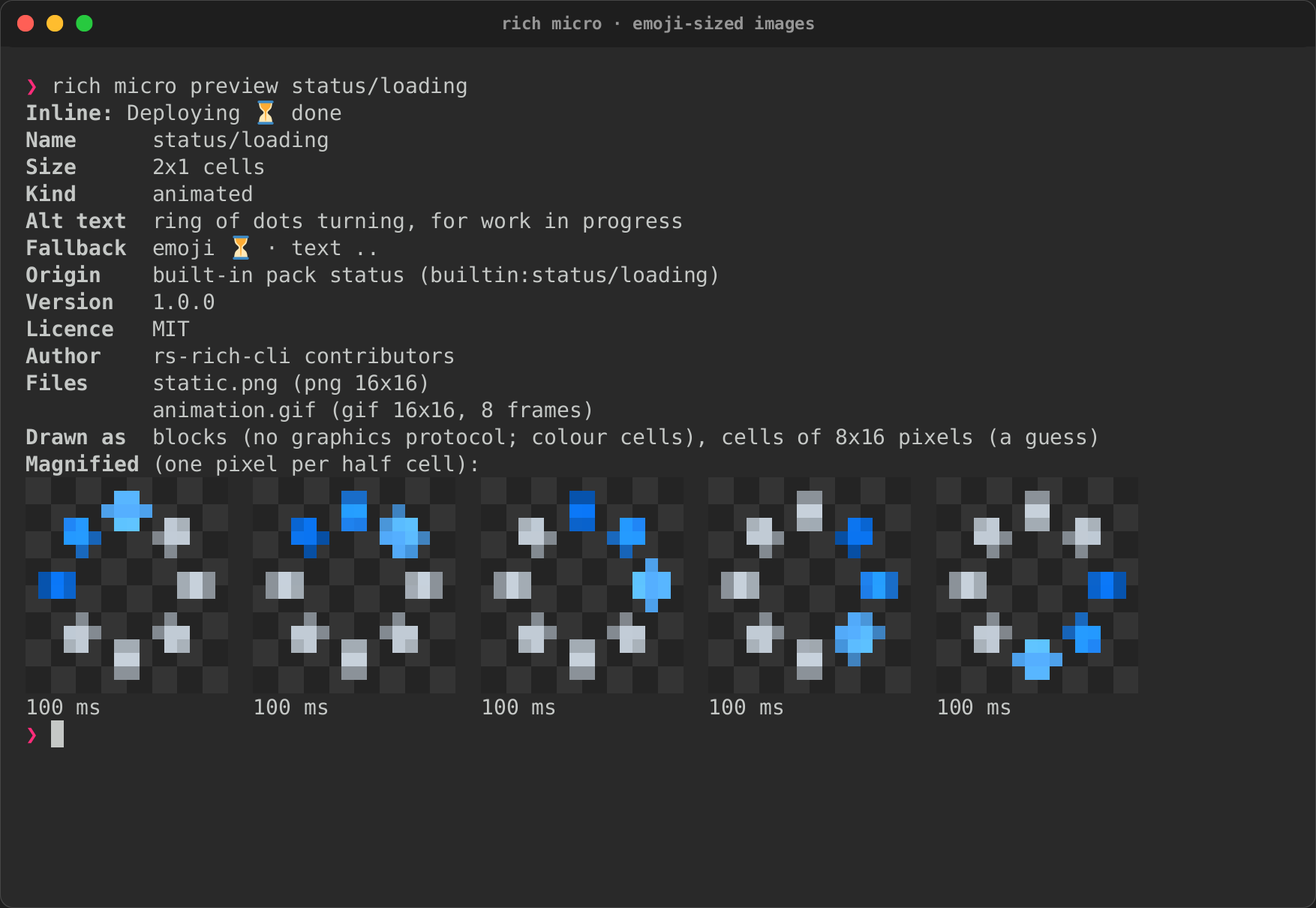

preview draws the asset inline (Deploying ▯▯ done) the way this terminal shows it, and magnified: one image pixel per half cell, over a dark checkerboard where it is transparent, fitted to this terminal's cell size in pixels (from RICH_CELL_PIXELS, the window size, or a CSI 16 t query), which is what a graphics protocol will show. An animation shows its frames side by side with their times; a still image, its one frame. Give an image file instead and it shows what the pipeline would make of it, with the same options as create.

rich micro preview

The recording is from a PTY with no image protocol, so the inline asset is its emoji fallback; the magnified frames are half-blocks on any colour terminal.

The manifest¶

create writes the manifest for you. By hand, a package is a folder (or a zip file ending .richmicro) holding manifest.json and its images:

{
  "schema_version": 1,
  "name": "team/logo",
  "alt": "our logo, a blue fox",
  "size": "2x1",
  "kind": "static",
  "fallback": { "emoji": "🦊", "text": "TL" },
  "static": "static.png",
  "animation": "animation.gif",
  "version": "1.0.0",
  "license": "MIT",
  "author": "Team"
}

name: lowercase letters, digits, _ and -, with / between namespaces. Use a namespace of your own (team/…): names are what people type, and a bare name like rocket reads like the emoji code :rocket:. None of the built-in names is an emoji code, and yours should not be one either.
alt: mandatory, at most 200 characters, describing what the picture shows (green circle with a white check mark), not what it means. Screen readers, logs and plain exports show it where nothing else fits.
fallback: an emoji, a short text, or both. Each must fit the asset's columns (two for 2×1) with no spaces. The emoji is what most terminals without graphics show; the text is for consoles that cannot show emoji. Give both.
license: an SPDX identifier. Say what you may share it under; do not package logos or artwork you have no right to redistribute.
aliases (optional): other names, resolved within the same layer.

Packages are untrusted input and are read under hard limits: 8 MiB for an archive, 2 MiB a file, 256 pixels a side, 240 frames, 32 MiB decoded. Keep yours far below them: a 16×16 PNG is a few hundred bytes.

Packs¶

A pack is a folder or zip file with a pack.json and its packages:

{ "schema_version": 1, "name": "team", "version": "1.0.0",
  "license": "MIT", "packages": ["logo", "deploy.richmicro"] }

rich micro install PATH copies one into your user layer (--project for the project's), rich micro packs lists what each layer has, and rich micro uninstall NAME removes it. One bad package does not reject the pack: it is reported, and the rest load.

The built-in library¶

The built-in assets are drawn for this project, in code: crates/rich-micro/examples/gen_builtin.rs describes each one as shapes on a 16×16 grid, renders them at 64×64 with supersampling and runs the result through the same pipeline. Run it after changing a drawing:

cargo run -p rs-rich-micro --example gen_builtin

It rewrites crates/rich-micro/builtin/ (the packs, and files.rs, the table the crate embeds). A test regenerates everything and fails when the committed files do not match; another checks every built-in asset has alt text, an emoji and a text fallback and a licence, and that no name is an emoji code or a third-party logo.

Pack	Assets
`status`	`status/success`, `status/warning`, `status/error`, `status/info`, `status/loading` (animated)
`dev`	`dev/bug`, `dev/branch`, `dev/terminal`, `dev/package`
`fun`	`fun/heart` (animated), `fun/star`, `fun/cat`, `fun/coffee` (animated)

The built-in library shows each one magnified, with its animation. All are MIT, like the rest of the project. There are no third-party logos (git, Rust, Python, Docker and the like): their trademark and licence terms keep them out of a default library. Package them yourself if you have the right to.
