0.0.12 cohort: plugin platform and extensibility

Published 2026-09-26. Every workstream in the 0.0.12 plan shipped, and the release test below passed on the integrated tree. All eight crates are on crates.io, three of them new (rs-rich-plugin-api, rs-rich-mermaid, rs-rich-lumis), and the first rs-rich Python package is on PyPI. See Publication.

0.0.12 makes rs-rich something other crates plug into, not just something they call:

• one public, documented way to register extensions: the new rs-rich-plugin-api crate;

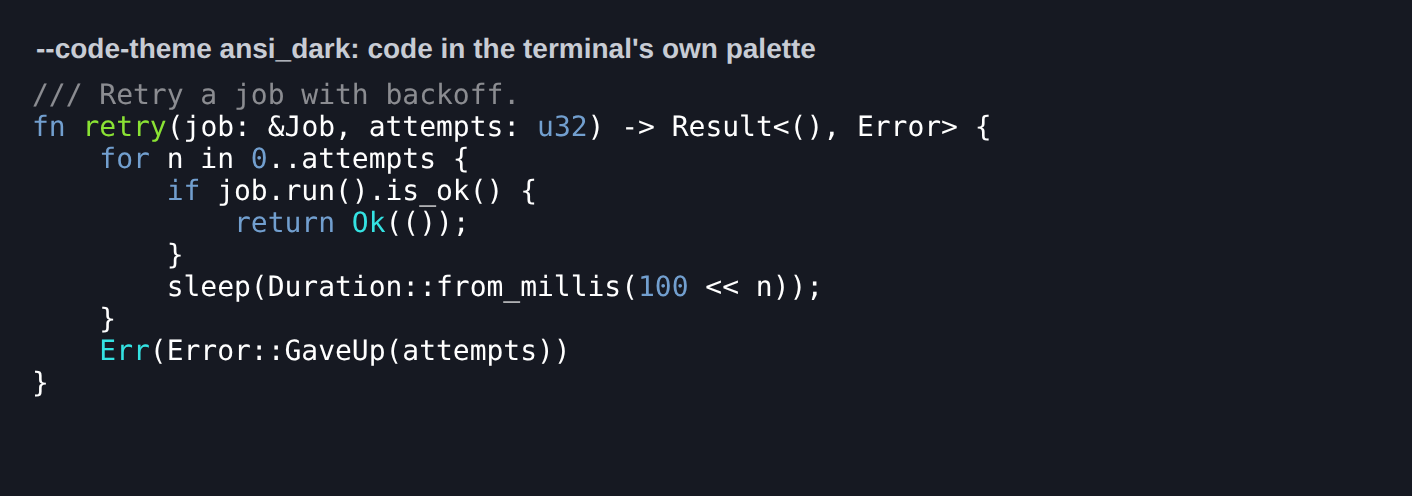

• a pluggable code highlighter, with syntect as the default and lumis (tree-sitter) as a second engine;

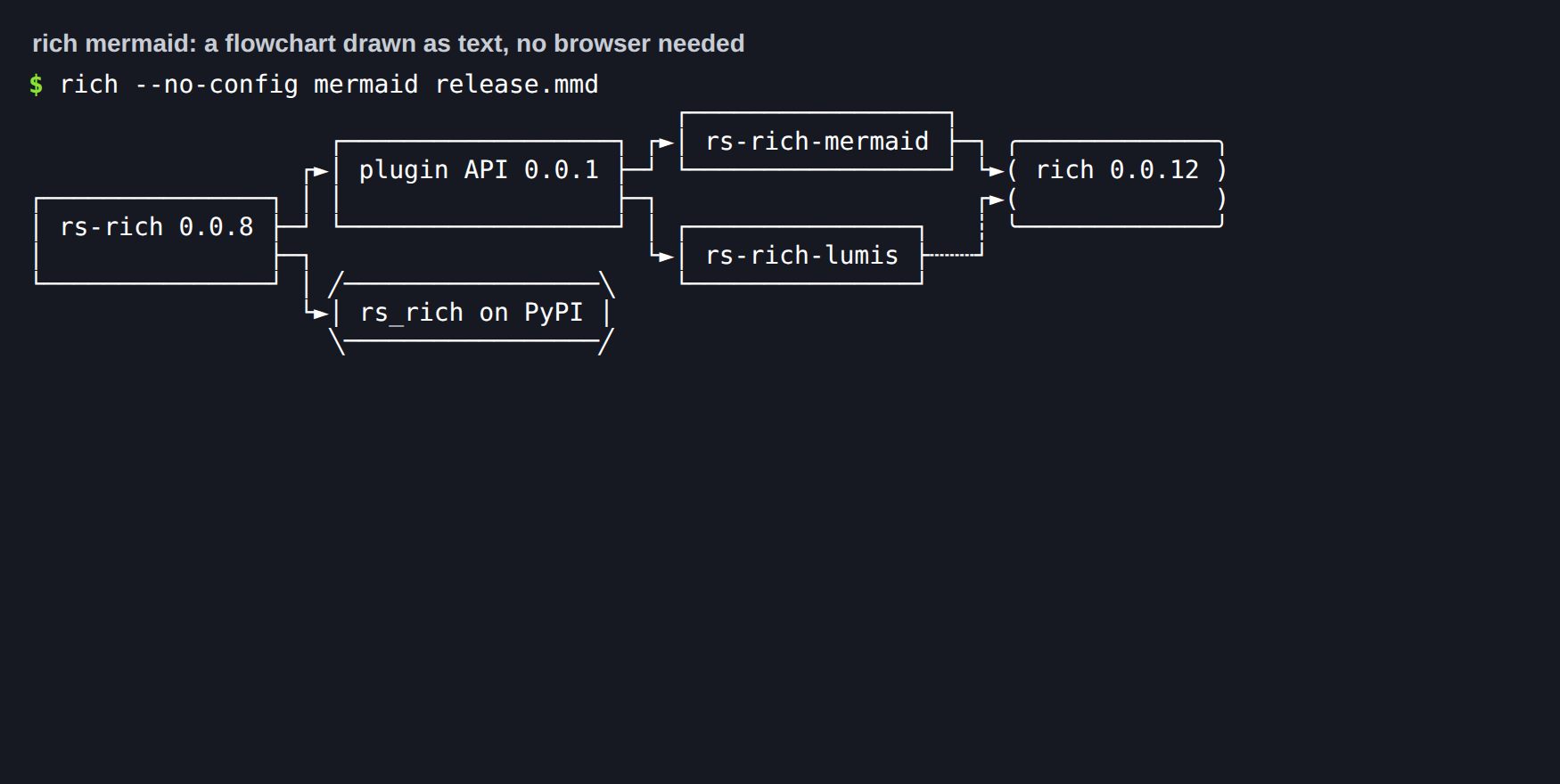

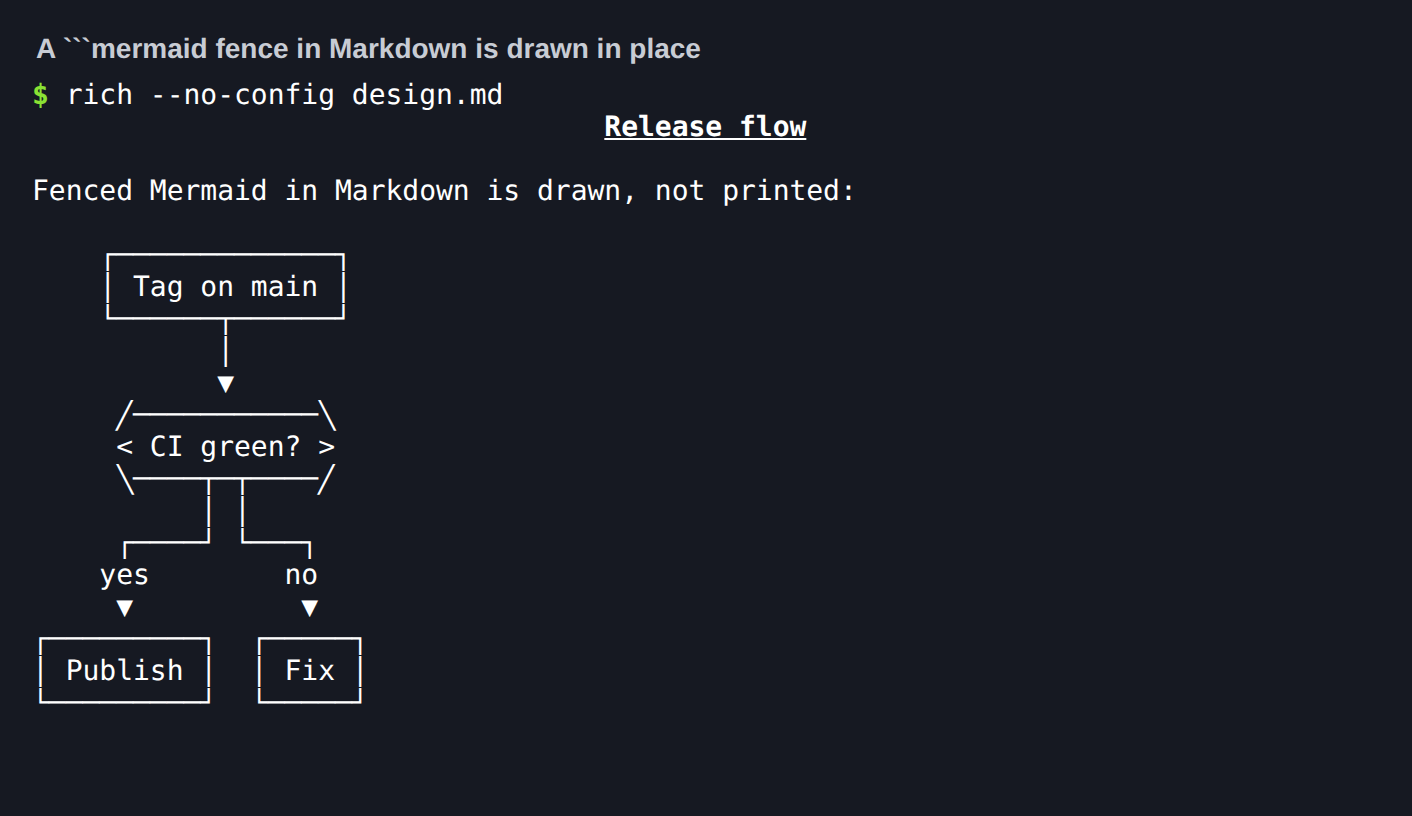

• Markdown code fences that plugins can draw, starting with Mermaid flowcharts as text;

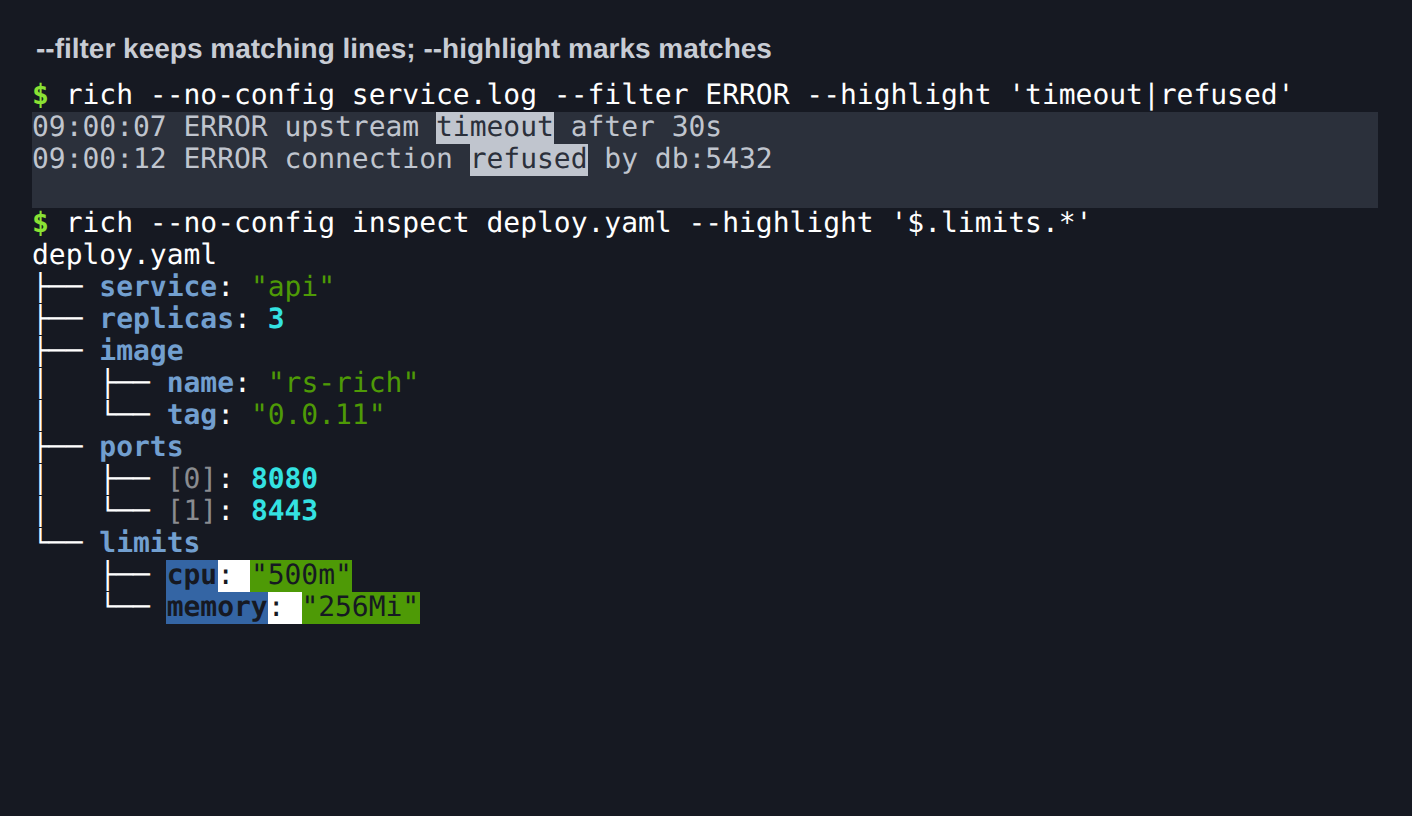

• composable transforms, behind the CLI's --filter and --highlight;

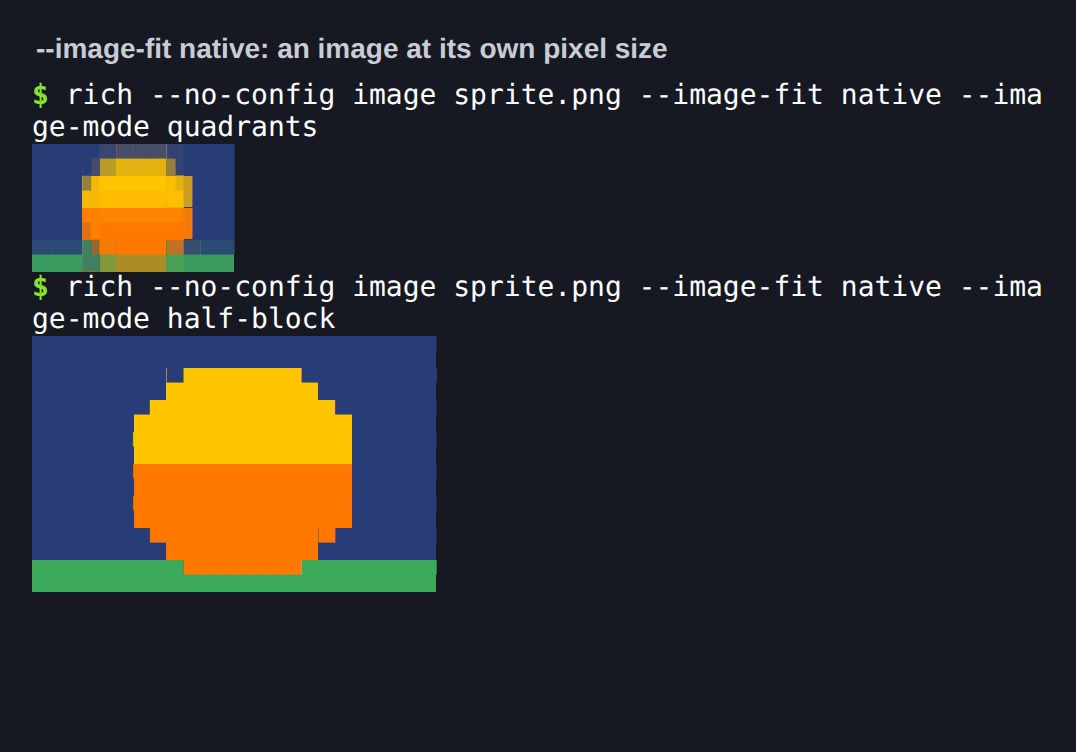

• native image sizing;

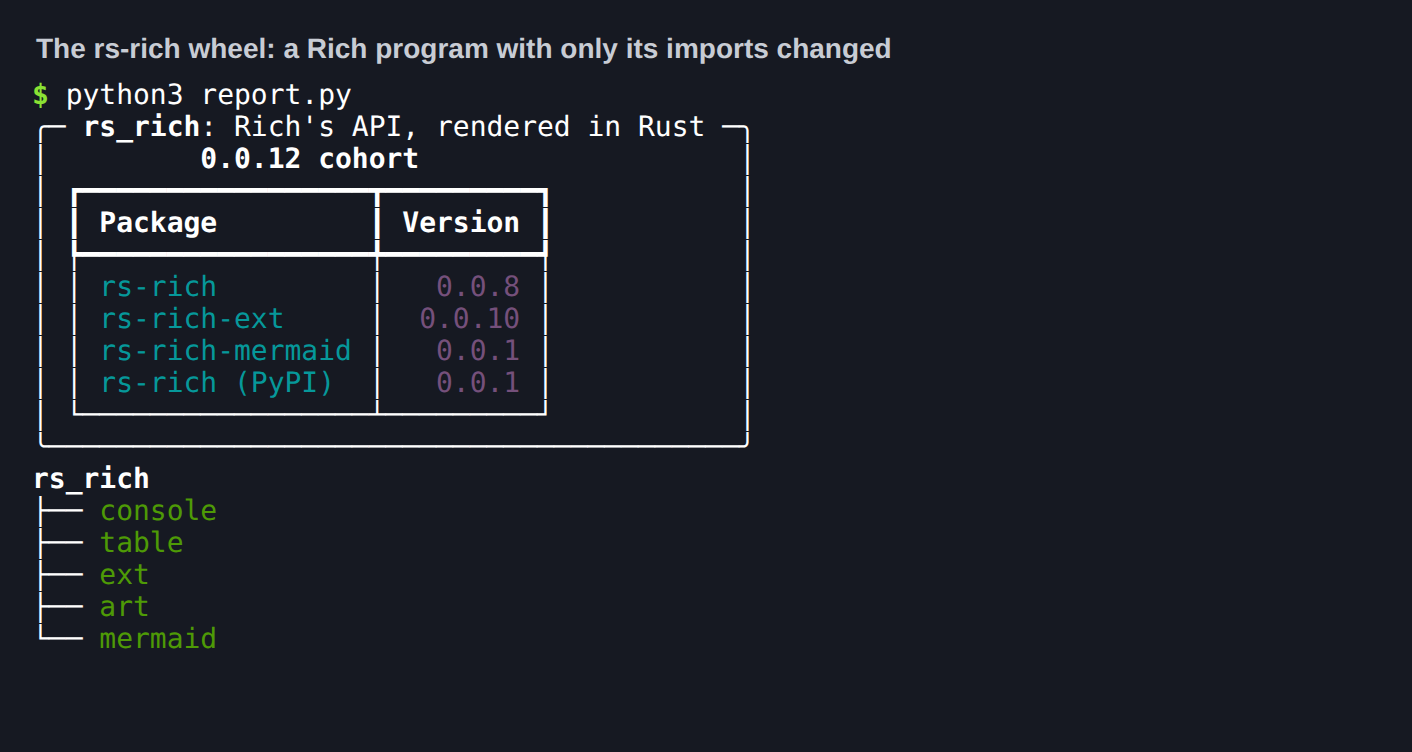

• a first slice of Python bindings, rs-rich on PyPI.

Core still learns nothing about any one extension. It gains extension-point traits only, and a default build still renders exactly like upstream rich 15.0.0.

Independent package versions

Package	Version	Release role
rs-rich	0.0.8	The CodeHighlighter and FenceRenderer seams, the syntect adapter with ANSI themes, and parity fixes (header-less table boxes, a lone \r in code, a zero-width Panel)
rs-rich-plugin-api	0.0.1 (new)	The plugin contract: Plugin, PluginRegistrar, capabilities and PLUGIN_API_VERSION
rs-rich-macros	0.0.2	Exact core pin
rs-rich-ext	0.0.10	The plugin host, transforms, and the highlighter conformance kit
rs-rich-art	0.0.10	Core pin and ImageFit::Native
rs-rich-lumis	0.0.1 (new)	The lumis highlighter as a plugin
rs-rich-mermaid	0.0.1 (new)	Mermaid flowcharts as text, and an optional mmdc backend
rs-rich-cli	0.0.12	rich mermaid, --highlighter, --code-theme, --filter, --highlight, --image-fit native
rs-rich on PyPI	0.0.1 (new)	Python bindings, imported as rs_rich; built from crates/rich-py, which is never on crates.io

Internal requirements are exact 0.0.x pins, so the cohort moves together and cargo tree holds one rs-rich.

What changed

The changelog has the full list. By workstream:

Workstream	Pull requests
1. Pluggable code highlighters: the core trait, the syntect adapter and ANSI themes (#522, #523), rs-rich-lumis (#524), choosing one (#525), the conformance kit (#526)	#531, #534, #535, #536
2. The public plugin API and ext's host	#532
3. Markdown fences and Mermaid (#222)	#533
4. Composable transforms (#216)	#538
5. Render tree spike (#226), a design note only	#539
6. Native image sizing (#519)	#540
7. Python bindings, first slice (#197)	#541

Migration

• New crates. Plugins depend on rs-rich-plugin-api, not on rs-rich-ext. Plugin and capability names are lowercase letters, digits, -, _ and ., and start with a letter or digit.
• Default output is unchanged. With no plugin registered and no highlighter chosen, every golden and the differential corpus are byte-identical to rich 15.0.0. Three parity fixes change output only where it was wrong:
• a table without a header draws head-styled boxes plain, as upstream does;
• a lone \r in Syntax code breaks the line;
• a Panel in no width renders nothing.
• CLI. mermaid is a default feature; lumis and mmdc are off by default. mermaid_backend = "mmdc" in a user config, on a build without mmdc, now warns and draws text instead of failing.

Release test (2026-09-26)

Check	Result
python scripts/validate_release.py --tag rs-rich-cli-v0.0.12	All 15 steps pass: fmt, three Clippy configurations (default, all features, lean CLI), 1,894 Rust tests in 130 suites (0 failed, 2 ignored), lean CLI tests, 36 Python release tests, version and CLI-reference checks, locked build and check, staged packages for all eight crates, tag plan
capture_golden.py against real rich 15.0.0 (dedicated venv, no rich-cli)	All 33 fixture files regenerate byte-identically
release.py plan per tag	rs-rich-v0.0.8, rs-rich-plugin-api-v0.0.1, rs-rich-macros-v0.0.2, rs-rich-ext-v0.0.10, rs-rich-art-v0.0.10, rs-rich-mermaid-v0.0.1, rs-rich-lumis-v0.0.1, rs-rich-cli-v0.0.12 each select exactly their own package; python-v0.0.1 belongs to pypi-release.yml, which checks it against pyproject.toml
crates.io API	404 for all eight new versions
Consumer install	cargo install from the packaged rs-rich-cli-0.0.12 source, with siblings patched only to their packaged .crate contents (cargo tree confirms every sibling resolves to its package): release build succeeds, rich --version reports 0.0.12, rich mermaid draws a flowchart
Library consumer	A fresh crate pinned to =0.0.8 core, =0.0.10 ext (data, yaml) and art, =0.0.1 Mermaid and plugin API, all packaged: a Mermaid diagram, MermaidPlugin registered on ExtensionRegistry and its fences routed into Markdown through registry.fences(), MermaidFences directly, YAML through data::parse into an Explorer
Python wheel	maturin build --release, installed into a fresh venv with rich==15.0.0 and pytest: the whole suite passes against the installed wheel (1,052 passed, 1 skipped), rich-rs --version reports 0.0.12
Python sdist	Installed from source into a fresh venv: builds, renders a Table and a Mermaid diagram, rich-rs works
CI scripts against the installed binary	test_cli_terminal.py, test_demo_pty.py (5 process checks), test_batch_v9.py, snapshot_cli.py (workflow snapshots), test_watch_workflows.py (12), test_live_regions_pty.py, and the differential corpus (57 of 57 match rich 15.0.0)
Security	cargo audit: no vulnerabilities (one unmaintained warning, bincode 1 via syntect)
Docs	mkdocs build --strict passes for the main site and the Python site (mkdocs-python.yml); gen_python_api.py --check (96 pages), gen_versions.py --check and gen_cli_reference.py --check match

The patched consumer stands in for registry resolution before publication; each release run builds an exact-version registry consumer after upload.

What the release test found and fixed

Five independent audits covered the whole 0.0.12 delta: core, the plugin API and ext host, Mermaid, art and the CLI flags, and the Python bindings. Each finding was reproduced by a test that failed first. 30 were fixed; the changelog lists every one. The main ones:

• Denial of service in Mermaid. A Markdown file of under 1 KiB could hang rich README.md for four minutes: link dashes set the rank span with no cap, and the layout was quadratic before any size check. Links now span at most 10 ranks, the layout budget is checked first, and crossings are counted in O(E log V). The same input is refused in 0.1 s.
• mmdc process hygiene. Ctrl-C left mmdc (and Chromium) running and its temporary directory behind; its output was read into memory with no cap. Both are fixed.
• Plugins. A plugin that panics while registering is refused instead of crashing the host. Names that read as flags or paths are refused.
• Python bindings. Using a Console, Table or Panel from a second thread raised PanicException; deep nesting could crash the interpreter; huge sizes aborted it. The objects are now thread-safe, and the limits raise Python exceptions.
• Parity. A lone \r in code joined two lines (and Panel.fit then lost one), a zero-width Panel printed two blank lines, and a huge column ratio overflowed. Each now matches rich 15.0.0.
• CLI. rich doctor failed on the very setting it is meant to explain; config validate accepted names every render rejects; --filter and --highlight changed --syntax output even when nothing matched.
• Workflows. The PyPI release now tests the wheel before publishing, and third-party actions are pinned by commit.

A second round then covered the Python package end to end, now that it wraps every crate: the console and threads, live displays, renderables (by differential fuzzing against rich 15.0.0: about 7,000 generated programs), and the ext, art, plugin and CLI surface. Its findings are fixed the same way, with regression tests in crates/rich-py/tests/test_robustness_*.py, and 22 new golden cases. The main ones:

• Crashes. A print re-entered from what it prints, deeply nested data in Pretty, and leaving a Live just before the interpreter exits could each kill the interpreter; a tiny, very tall image could hang or abort rich --image. All now raise, render as Rich does, or stay within a cell budget.
• Performance. Printing text with many styled spans was quadratic in core (print(list(range(10000))) took 83 s); it is linear now, with output unchanged. Markdown with many brackets, Text.stylize and deep task trees were quadratic too.
• Parity. markup=False now reaches strings inside containers; a print's end keeps its newline when cropped; Markdown inherits overflow; the Windows palette, markup error positions, blank lines for empty renderables and explicit justify="default" match rich 15.0.0.

Known gap: rich-cli options

Screenshot checks against upstream rich-cli 1.8.1 found that the rich binary (and rich-rs, which runs it) still lacks some of rich-cli's rendering options: --head/--tail, -n/--line-numbers, --guides, --lexer, --emoji, --soft, --no-wrap, --max-width, the --text-* alignments, --rule-style/--rule-char, --rst, --force-terminal, and most short aliases. This is not new in 0.0.12 (0.0.11 lacks them too); they are planned for 0.0.13 (#542) and listed in PORTING.

Publication

Independent annotated tags on main at 69dc7fe (#543), published one at a time in dependency order on 2026-09-26. No coordinated v0.0.12 tag exists; the release script rejects it.

Package	How	Run	Registry
rs-rich 0.0.8	rs-rich-v0.0.8, Trusted Publishing	36233976125	crates.io
rs-rich-plugin-api 0.0.1	By hand with a maintainer API token	—	crates.io
rs-rich-macros 0.0.2	rs-rich-macros-v0.0.2, Trusted Publishing	36234588352	crates.io
rs-rich-ext 0.0.10	rs-rich-ext-v0.0.10, Trusted Publishing	36234677455 (attempt 2)	crates.io
rs-rich-art 0.0.10	rs-rich-art-v0.0.10, Trusted Publishing	36234686496	crates.io
rs-rich-lumis 0.0.1	By hand with a maintainer API token	—	crates.io
rs-rich-mermaid 0.0.1	By hand with a maintainer API token	—	crates.io
rs-rich-cli 0.0.12	rs-rich-cli-v0.0.12, Trusted Publishing	36235801321	crates.io
rs-rich 0.0.1 (Python)	python-v0.0.1, PyPI Trusted Publishing from the pypi environment	36236294253	PyPI

Why three crates were uploaded by hand. crates.io offers Trusted Publishing only on a crate that already exists, so a new crate's first version needs a maintainer token. Each went up once its own dependencies were on crates.io: the plugin API after core 0.0.8 (and before ext, which depends on it), lumis after the plugin API, and Mermaid after art 0.0.10 (its optional mmdc dependency, which crates.io resolves at upload too). All three came before the CLI tag. Later versions publish from the workflow once their Trusted Publishing entries are added. See Registry authentication.

Registry check. Each tag's release run waited for its version on crates.io, then built an exact-version registry consumer. Independently, from the registries themselves (no path patches):

• cargo install --locked rs-rich-cli --version =0.0.12 reports 0.0.12 and draws a Mermaid flowchart;
• a new crate pinned to =0.0.8 core, =0.0.10 ext (data, yaml, macros) and art, =0.0.1 plugin API, Mermaid and lumis, and =0.0.2 macros resolves every one from crates.io, registers MermaidPlugin and LumisPlugin, routes Mermaid fences into Markdown, and parses YAML;
• pip install rs-rich==0.0.1 in a fresh Python 3.13 venv installs the manylinux wheel (PyPI carries wheels for Linux x86-64 and arm64, macOS arm64 and x86-64, Windows x86-64, and the sdist); rich-rs --version reports the 0.0.12 CLI, and the whole Python suite passes against it (1,051 passed, 2 skipped, with rich==15.0.0 as the reference).

Installed-binary screenshots

Each image is a real PTY run of the installed consumer binary, and for the last one of the installed wheel's python3 (TERM=xterm-256color, truecolor). The captured bytes are replayed verbatim into xterm.js in headless Chromium, and only the caption line is added. Hashes of the raw PTY bytes, the PNGs, the binary, the wheel and the packaged crates are in provenance.json. Reproduce with scripts/terminal_shots/make_cases.py --release 0.0.12.
