0.0.11 cohort: developer ergonomics and core usability

Published 2026-09-24. Every workstream in the 0.0.11 plan shipped, and the release test below passed on the integrated tree. All five packages are on crates.io; rs-rich-macros is new. See Publication.

Independent package versions

Package	Version	Release role
rs-rich	0.0.7	Parity fixes #442–#449, Markdown styled table cells (#9), the rest of Progress (#6), LogRender (#10), markup/measurement, Columns/Tree and no_color/spinner/prompt parity, and the release-test fixes
rs-rich-macros	0.0.1 (new)	Checked markup and styles (richf!, style!, theme_key!, markup!) and #[derive(Rich)]
rs-rich-ext	0.0.9	Diagnostics and stack traces, structured data and serde, CLI authoring and clap, diffs and test reports, capabilities and accessibility, tracing spans, inspectors, and the workflow renderables
rs-rich-art	0.0.9	Atkinson dithering, OKLab colour distance, Sixel/GIF colour modes, terminal-default and checkerboard alpha backgrounds
rs-rich-cli	0.0.11	inspect, diff, view, hex, unicode, env, capture, ansi explain, doctor, bench compare, rich-rendered help, completions and docs, --format, --theme-file

Internal requirements are exact 0.0.x pins, so the cohort moves together and cargo tree holds one rs-rich. Publish in dependency order, one tag at a time: core, then macros, then ext and art, then the CLI.

What changed

The changelog has the full list. By workstream:

Workstream	Pull request
1. Core parity fixes (#442–#449)	#497
2. Markdown styled table cells (#9); Progress pulse, columns, live display, track(), grid, transient, file reading (#6); LogRender and RichHandler (#10)	#501, #502, #503, #504
3. Diagnostics, hyperlinks, stack traces, dashboard, error adapters	#505
4. Structured data, serde helpers, rich inspect, --format	#506
5. rs-rich-macros 0.0.1	#505
6. CLI authoring: help, errors, completions, docs, config reference, clap	#506
7. Tracing spans, span views, editor links, Live-safe logging	#514
8. Diff engine, source/patch/test-report views, assertions, QA tooling, rich diff, rich bench compare	#507
9. Capabilities, fidelity, accessibility, rich ansi explain, rich doctor	#507
10. Commands, task trees, summaries, transfers, countdowns, notifications, streaming/sorted tables, badges, size bars, formatters, redaction	#517
11. rich view, hex, unicode, env, capture	#515
12. Atkinson, OKLab, Sixel/GIF colour modes, alpha backgrounds, --theme-file	#516

Redaction (rich_ext::redact, rich capture --redact) is experimental and best effort: check redacted output before sharing it, and report anything that gets through.

Migration

• Markup in cells and labels (core). A plain-string table header, cell or tree label is now parsed as markup, as upstream does. Pass Text or markup::escape to keep it literal; Tree::new/add take impl Into<Cell>. Malformed markup prints literally (DIVERGENCES §2).
• LogRender (core). The old one-line LogRender::new(level, message) is now LogRecord with the same builders plus .line(n); LogRender::new() takes no arguments and renders each record with .render(...). Table::grid() has upstream's defaults (no padding, collapse_padding).
• Exhaustive matches. ProgressColumn gains BarWith and WithTableColumn; art's Dither gains Atkinson.
• Art background. The internal ImageArt background field is an ImageBackground; the background([r, g, b]) builder is unchanged.
• Release-test additions. StackTrace has a public omitted_causes field; unicode_inspect::Kind gains Bidi and ImageArtError gains SixelTooLarge and SixelNotSupported. richf! now prints a value's \[ literally. A truncated JUnit file is an error. rich view and text rich diff sanitise terminal controls by default (--no-sanitize opts out), and a working-directory rich.toml can no longer set theme_file, export_html or export_svg, or turn sanitising off. Move those settings to ~/.config/rich/config.toml, a file given with --config, or the command line.

Release test (2026-09-24)

Run on the integrated tree (main through #517, plus this branch's release fixes), with Rust 1.98.1 stable and NO_COLOR unset.

Check	Result
python scripts/validate_release.py --tag rs-rich-cli-v0.0.11	All 15 steps pass: fmt, three Clippy configurations, 1,691 Rust tests (0 failed), lean CLI tests, 36 Python release tests, version and CLI-reference checks, locked build and check, staged packages for all five crates, tag plan
capture_golden.py against real rich 15.0.0 (dedicated venv, no rich-cli)	All 31 fixture files regenerate byte-identically
release.py plan per tag	rs-rich-v0.0.7, rs-rich-macros-v0.0.1, rs-rich-ext-v0.0.9, rs-rich-art-v0.0.9, rs-rich-cli-v0.0.11 each select exactly their own package
release.py plan v0.0.11	Rejected: rs-rich-art: manifest says 0.0.9, tag says 0.0.11
crates.io API	404 for all five new versions; 200 for the published 0.0.10 cohort
Existing tags	None of the five new tags exist on the remote
Consumer install	cargo install from the packaged rs-rich-cli-0.0.11 source, with siblings patched only to their packaged .crate contents: release build succeeds, rich --version reports 0.0.11
Library consumer	A fresh crate pinned to =0.0.7/=0.0.9 packaged core/ext with macros, data and yaml: richf! keeps hostile values literal, formatters, experimental redaction, TaskTree on a ManualClock, TableData::sort_by, YAML through data::parse
CI scripts against the installed binary	test_cli_terminal.py (3), test_demo_pty.py (5 process checks), test_batch_v9.py, snapshot_cli.py (6 workflow snapshots), test_watch_workflows.py (12), test_live_regions_pty.py, and the differential corpus (57 of 57 match rich 15.0.0)
Security	cargo audit: no vulnerabilities (one unmaintained warning, bincode 1 via syntect)
Docs	mkdocs build --strict passes; gen_versions.py --check and gen_cli_reference.py --check match

The patched consumer stands in for registry resolution before publication; each release run builds an exact-version registry consumer after upload.

What the release test found and fixed

Six independent audits covered the whole 0.0.11 delta: core, diagnostics and macros, structured data and CLI authoring, diff and inspectors, the CLI, and art. Each finding was confirmed by reproduction and fixed with a regression test that failed first. About 70 were fixed; the changelog lists every one. The main ones:

• Terminal-control injection. Markdown link destinations now go through ports of markdown-it's normalizeLink and validateLink, so an escape sequence in a link can't reach the terminal. OSC 8 links could be broken out of in LiveCoordinator, Hyperlinker and diff templates. Stack-trace labels, patch paths and test-report names decoded from escapes now render inert. rich view could pass a clipboard-writing OSC 52 to the terminal: view and text diff now sanitise by default. Bidi controls show as escapes.
• Secrets. rich env masks secret names by whole segment, and credentials inside any value. --redact covers dash spellings, containers under a secret key, and XML text. Redaction stays experimental.
• Resource exhaustion. YAML alias and nested-anchor memory bombs, JSONPath overflow and nesting, GIF decoding (a 35-byte GIF asked for 17 GB), Sixel rasters, deep JSON, Tree and stack-trace recursion. capture stops reading 1 s after the command exits, even while a background child holds the pipe.
• Quadratic paths. Minified XML and TOML parsing (35 s to 0.3 s for 200,000 elements), libtest reports, wrapped SourceView lines, and core Text::divide: rendering 40,000 highlighted lines in rich view went from 132 s to 11 s. That change matches upstream's own line lookup.
• Config trust. A working-directory rich.toml can no longer set theme_file, choose export files (export_html, export_svg) or turn off sanitising. Theme files must be regular files of at most 1 MiB.
• Parity. Justify padding, zero-width table cells, negative byte columns, and TextColumn format specs (3,836 golden cases) now match rich 15.0.0.
• Generated scripts. zsh and fish completions and man pages can no longer be injected into. Completions offer each subcommand's own options and the global options.
• Dependencies. rustls 0.23.45 (RUSTSEC-2026-0285, fetch only). Core loads syntect's bundled dumps, which drops yaml-rust and plist. cargo audit reports no vulnerabilities; bincode 1 is flagged unmaintained (a syntect dependency).
• Tests. Two intermittent failures were root-caused. test_batch_v9.py stopped a worker inside posix_spawn's vfork, which suspended the parent. A timing test used a wall-clock limit; it now compares two sizes, which is how the quadratic XML parse was found.
• Screenshot tooling. node-pty dropped output still buffered when the command exited, so a large image came out cut off. shoot.js now holds the PTY open after exit. It also loads xterm.js's Unicode 11 widths, so emoji take two cells.
• Help. --image help now lists quadrants, and the Sixel fallback message names RICH_GRAPHICS=sixel.

Publication

Independent annotated tags on main at 433c1b1 (#520), published one at a time in dependency order. No coordinated v0.0.11 tag exists; the release script rejects it.

Package	How	Run	crates.io
rs-rich 0.0.7	rs-rich-v0.0.7, Trusted Publishing	36063309820	rs-rich 0.0.7
rs-rich-macros 0.0.1	By hand with a maintainer API token	—	rs-rich-macros 0.0.1
rs-rich-ext 0.0.9	rs-rich-ext-v0.0.9, Trusted Publishing	36065371117	rs-rich-ext 0.0.9
rs-rich-art 0.0.9	rs-rich-art-v0.0.9, Trusted Publishing	36065405590 (attempt 3)	rs-rich-art 0.0.9
rs-rich-cli 0.0.11	rs-rich-cli-v0.0.11, Trusted Publishing	36065429562 (attempt 2)	rs-rich-cli 0.0.11

Why macros was uploaded by hand. crates.io offers Trusted Publishing only on a crate that already exists, so a new crate's first version needs a maintainer token. It went up after core 0.0.7 and before the ext tag, whose optional macros dependency must resolve. Later versions publish from the workflow once its Trusted Publishing entry is added. See Registry authentication.

Registry check. Each tag's release run waited for its version on crates.io, then built an exact-version registry consumer (the CLI run installs rs-rich-cli@=0.0.11 --locked); all four passed. Independently, a fresh cargo install --locked rs-rich-cli@=0.0.11 from crates.io reported 0.0.11. A new crate pinned to =0.0.7/=0.0.9 with ext's macros, data and yaml features resolved rs-rich-macros 0.0.1 from the registry and ran richf!, a formatter and YAML parsing.

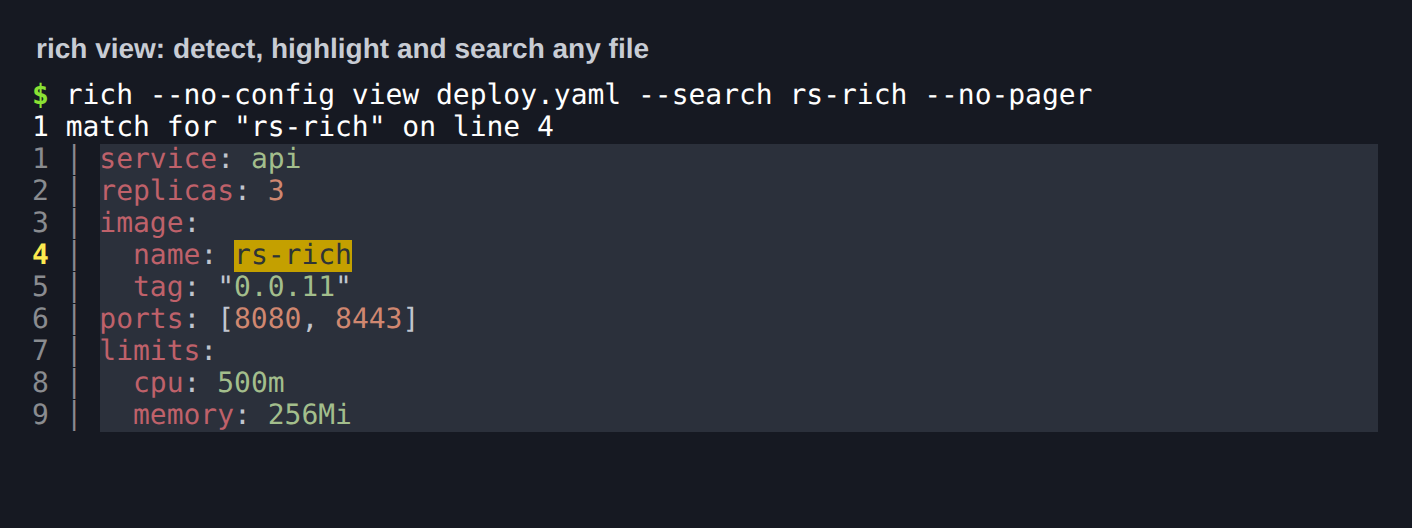

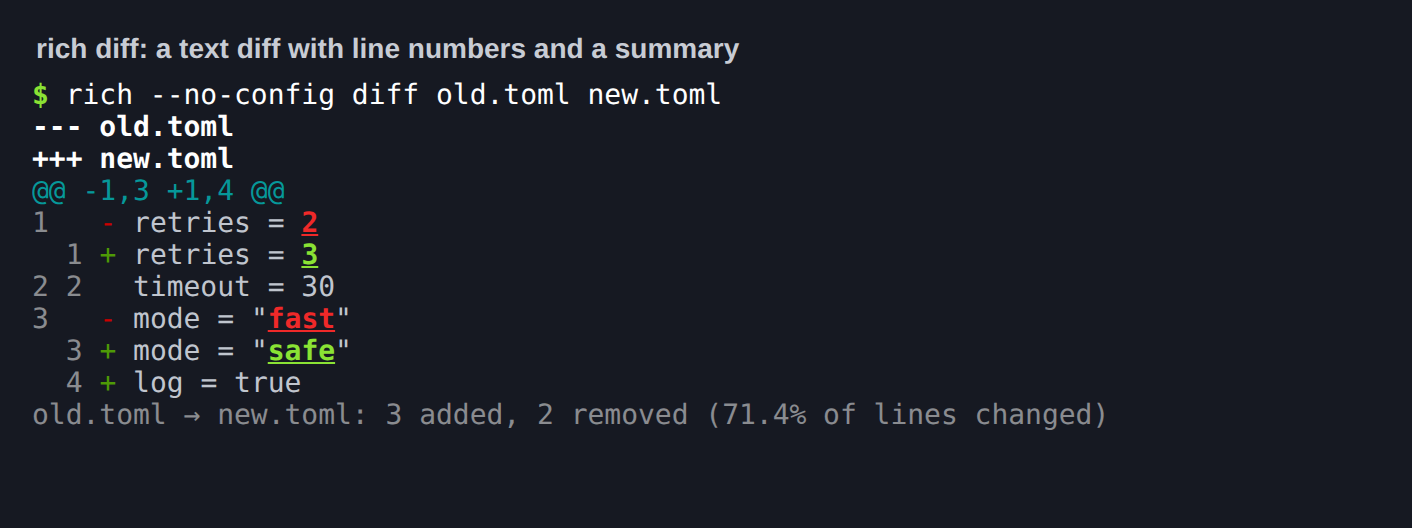

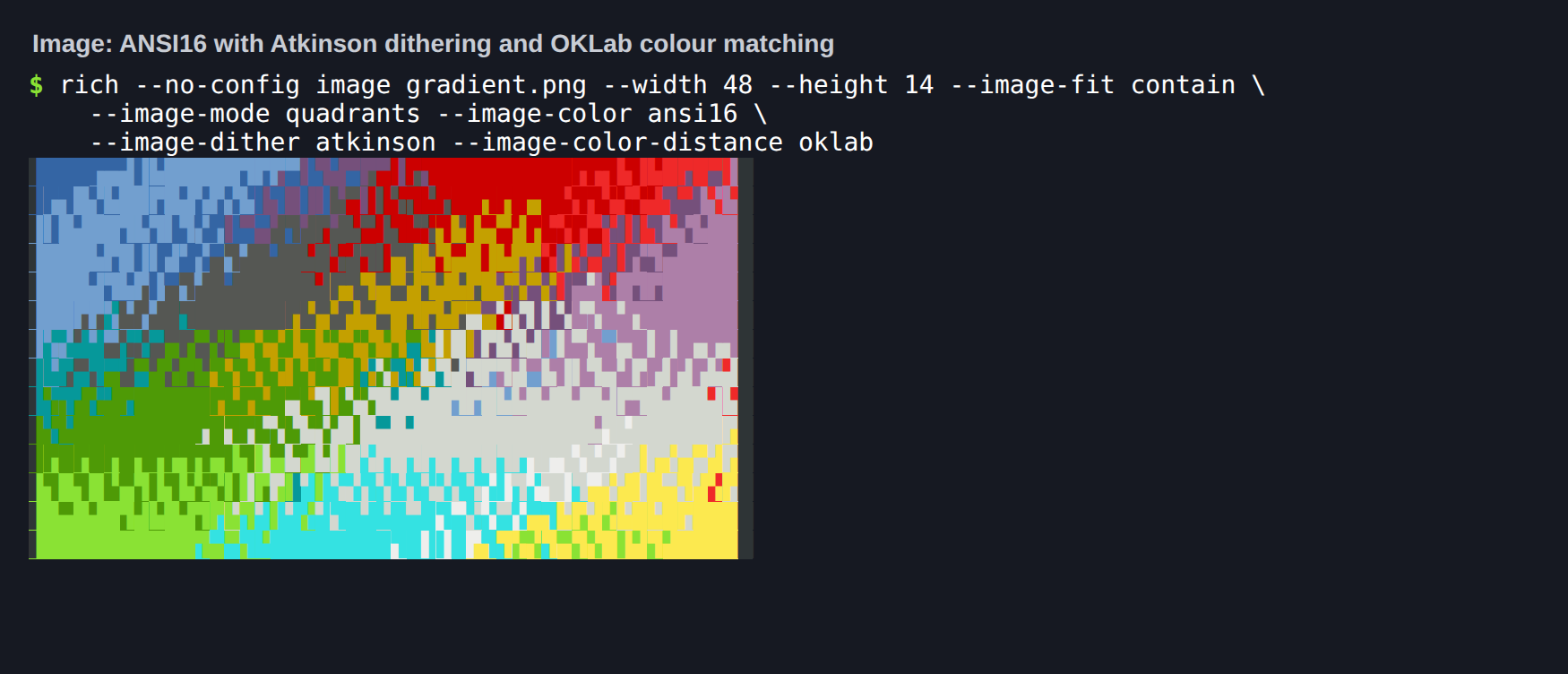

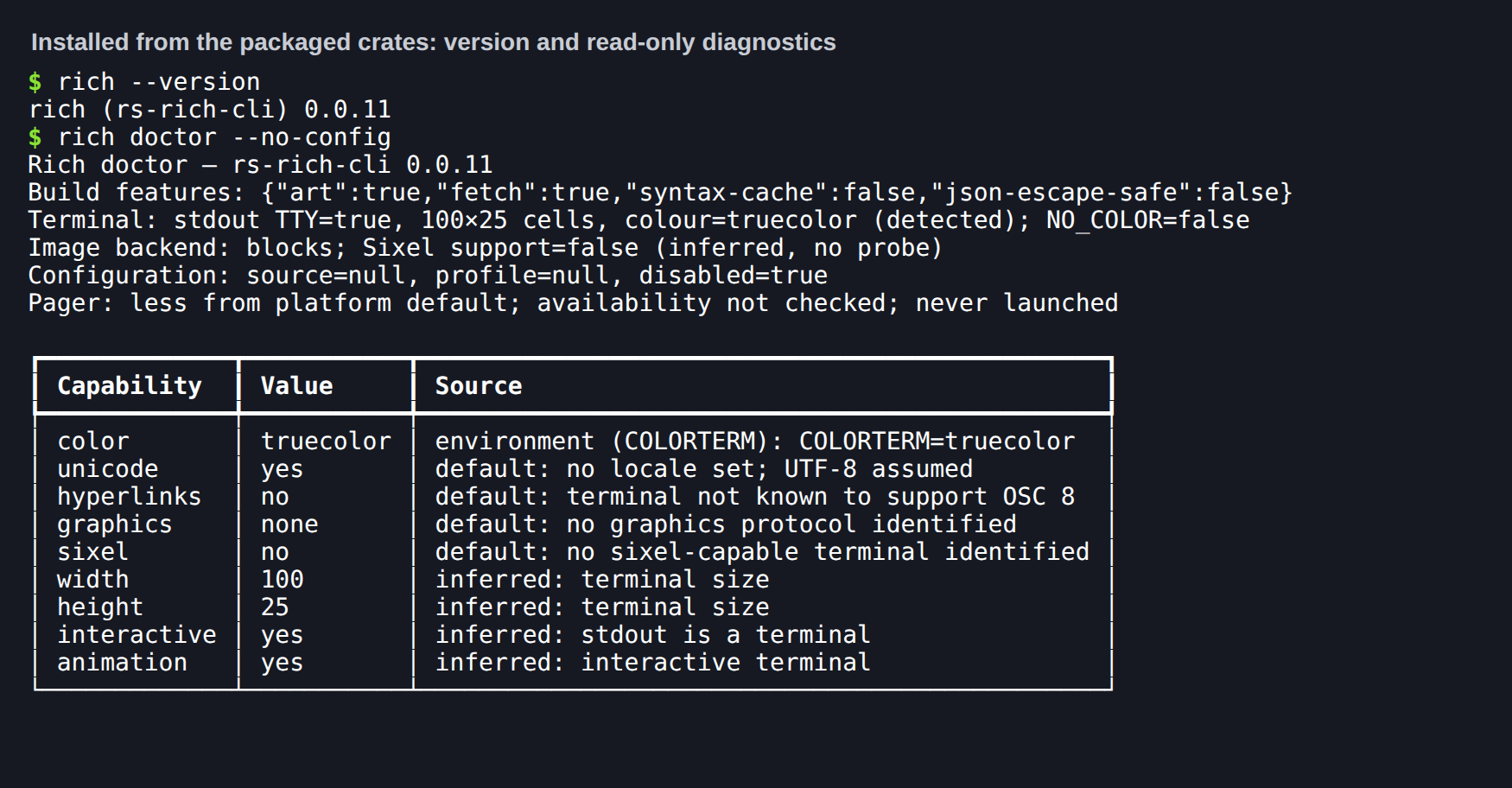

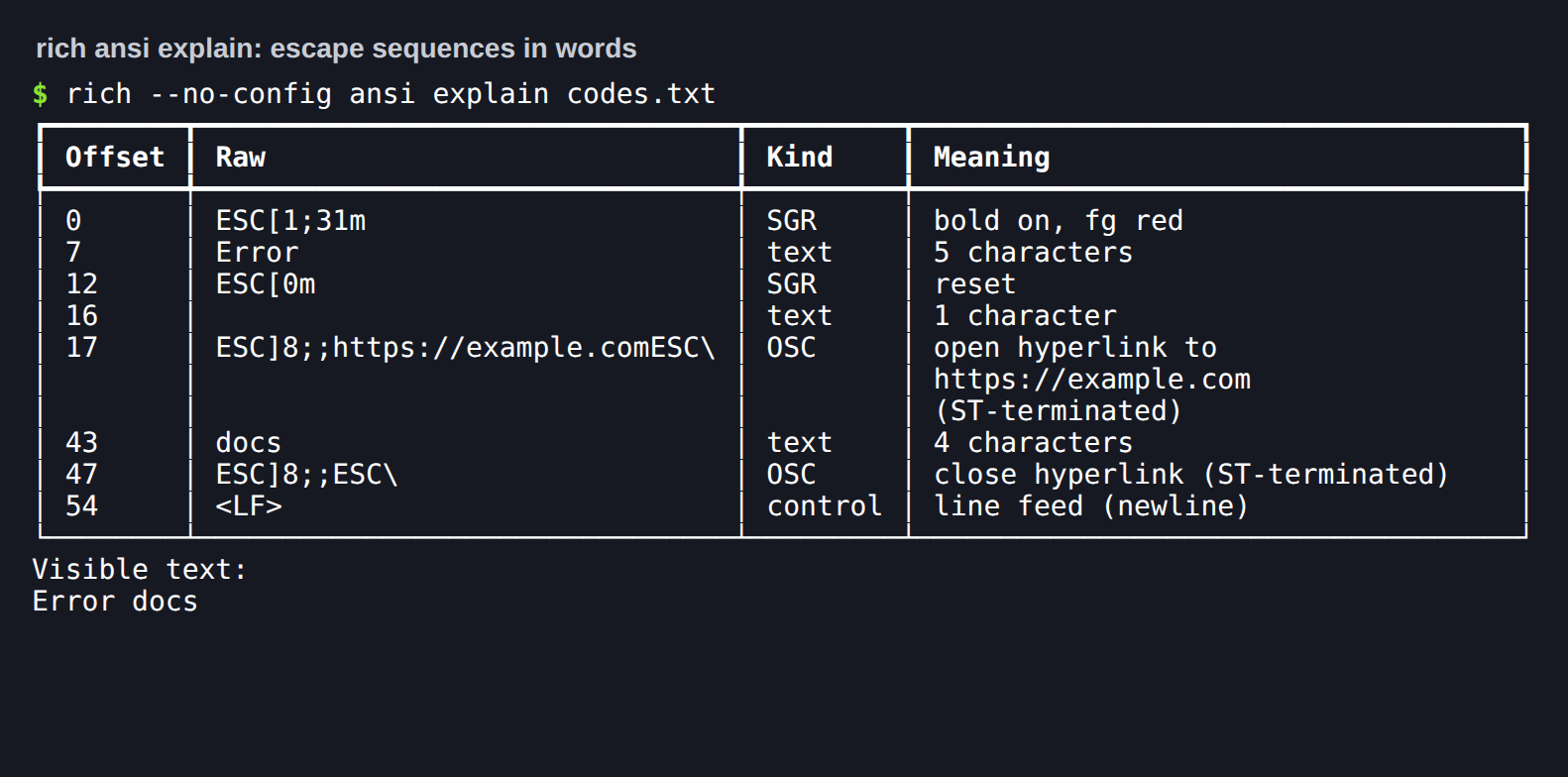

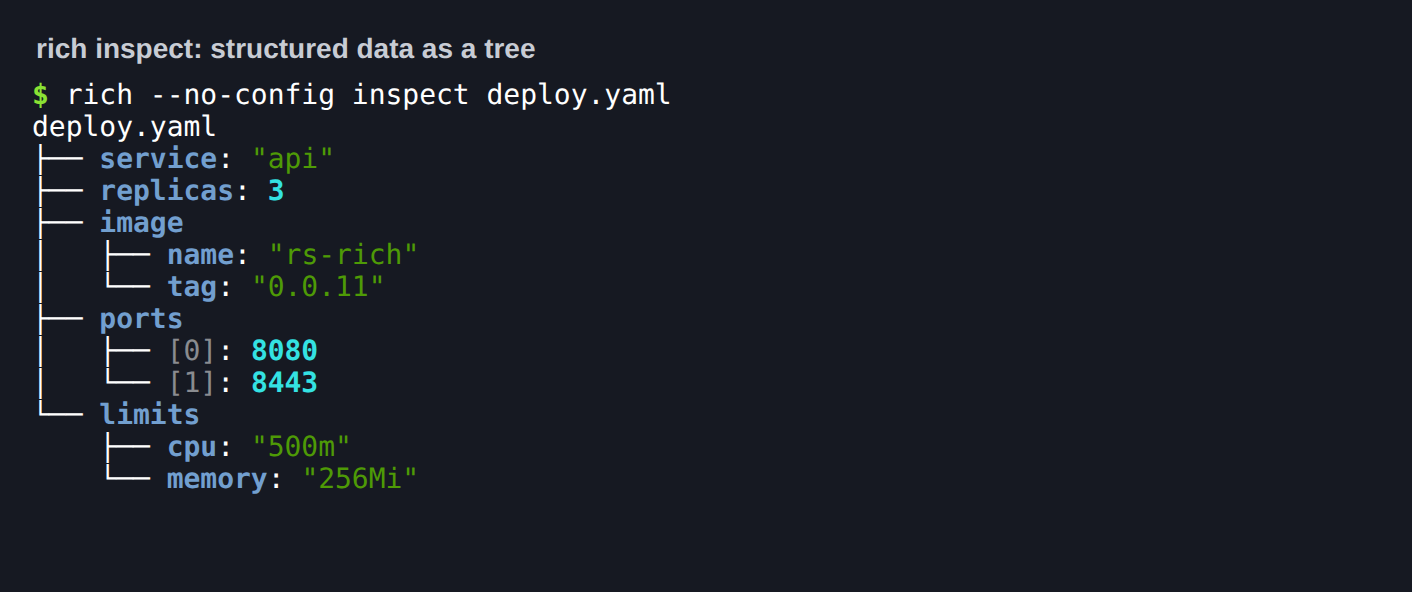

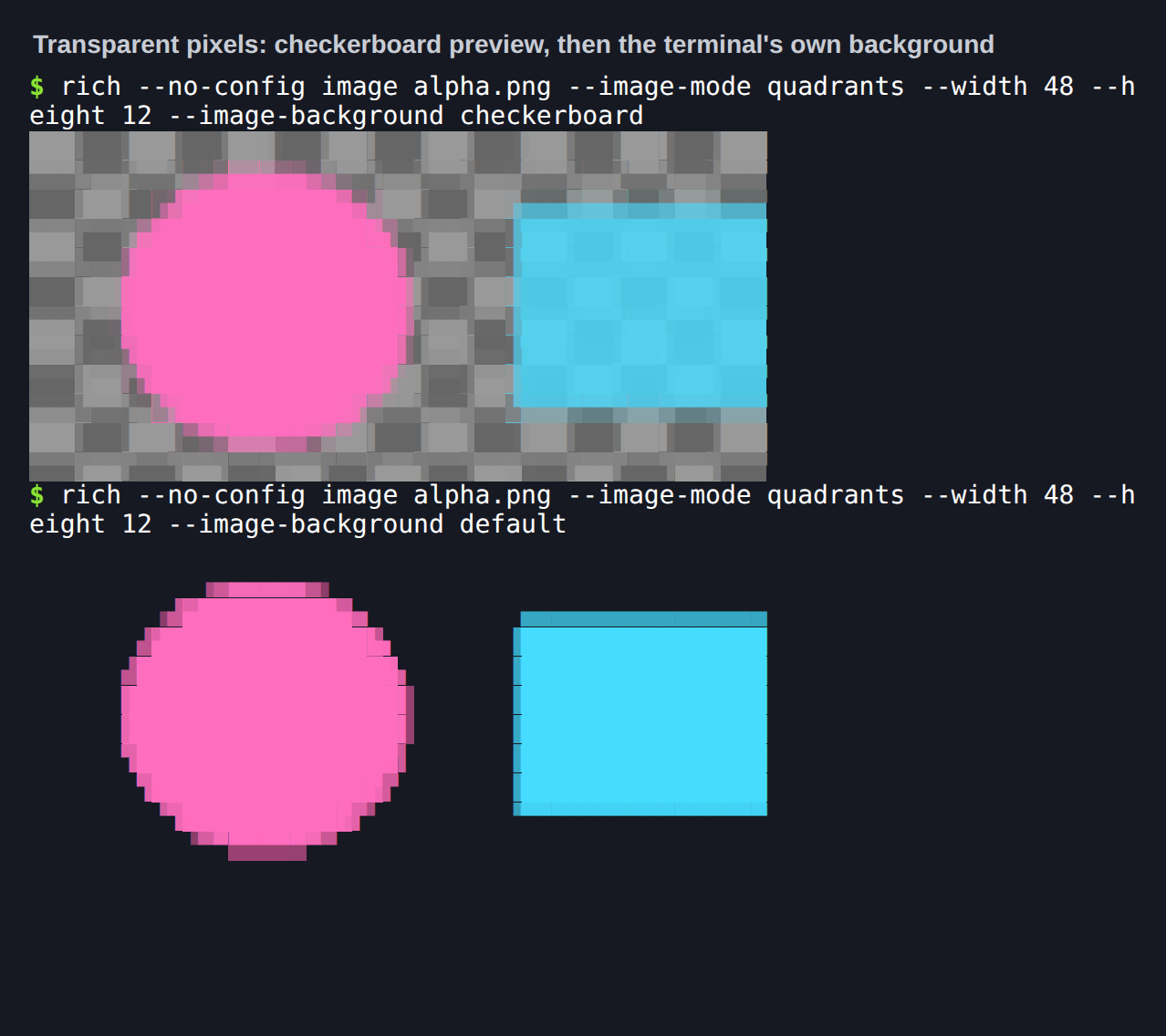

Installed-binary screenshots

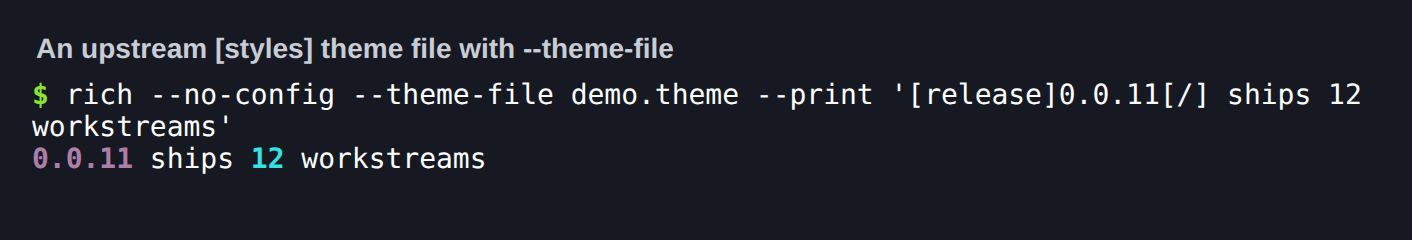

Each image is a real PTY run of the installed consumer binary (TERM=xterm-256color, truecolor). The captured bytes are replayed verbatim into xterm.js in headless Chromium, and only the caption line is added. Hashes of the raw PTY bytes, the PNGs, the binary and the packaged crates are in provenance.json. Reproduce with scripts/terminal_shots/make_cases.py --release 0.0.11.

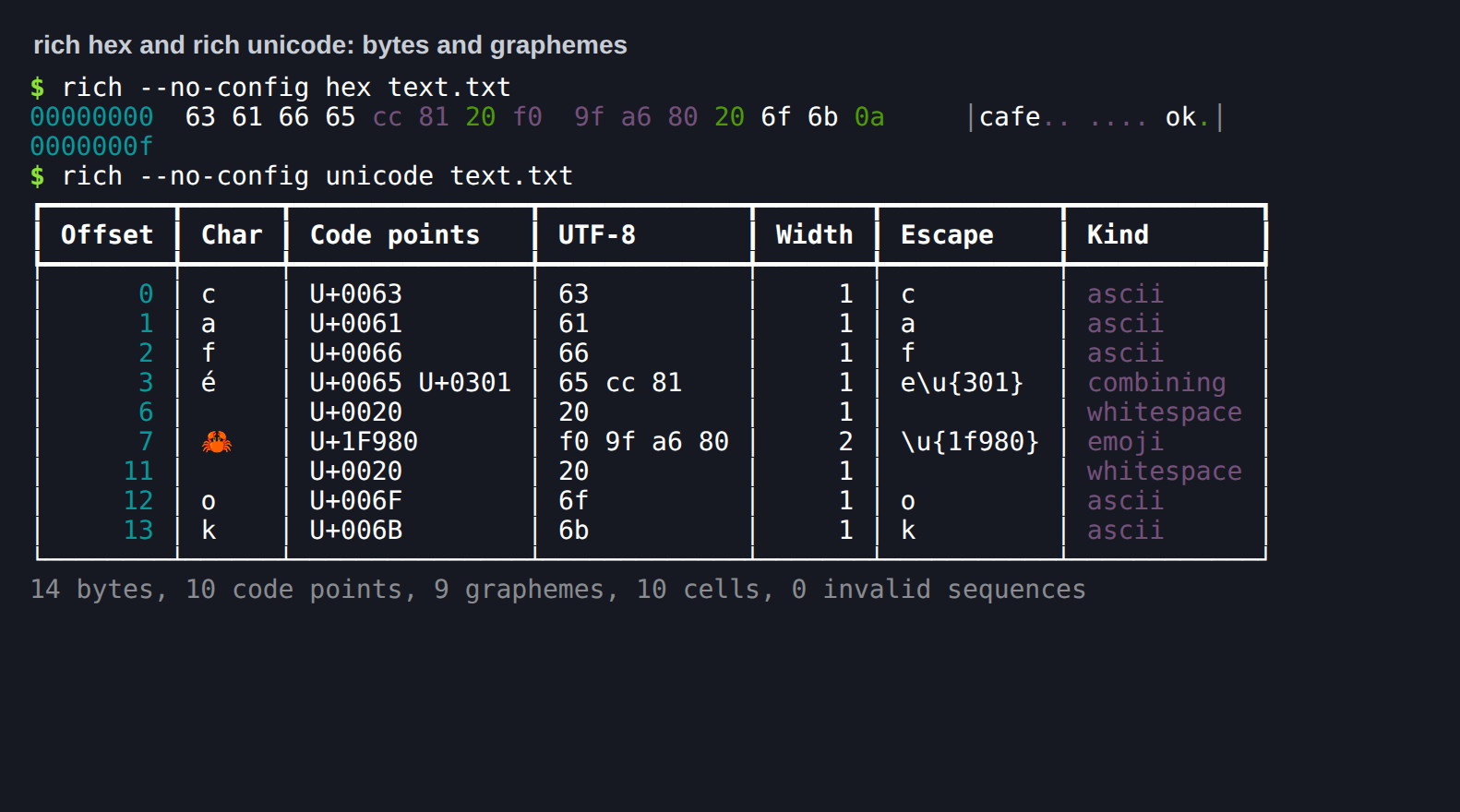

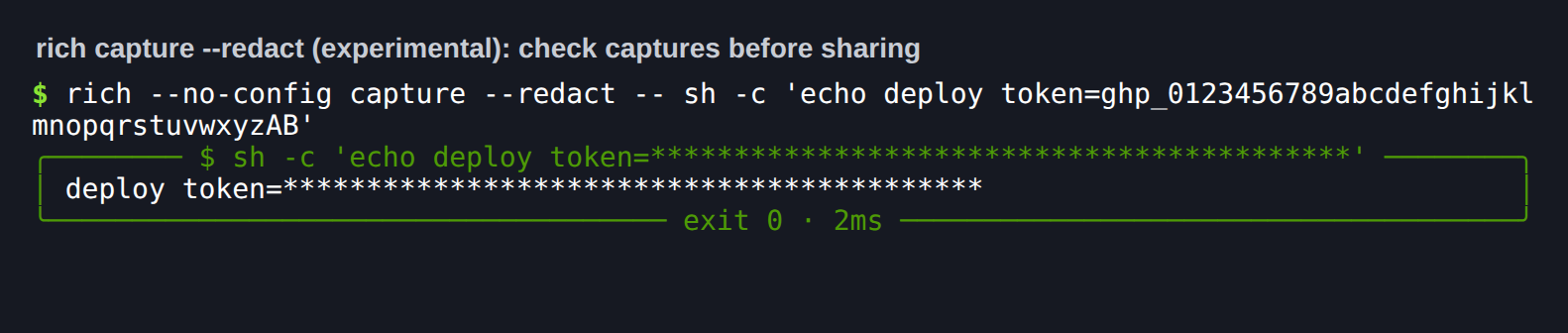

In the unicode capture, e plus a combining acute is one grapheme of two code points. The fixture avoids a ZWJ emoji sequence because xterm.js 5 has no grapheme clustering and would draw it six cells wide. The redacted capture masks the token in both the title and the body. The guided tour recording is also re-recorded from the installed 0.0.11 binary.

Issue disposition

Issue	State	Suggested disposition
Every other issue the plan assigns to a workstream, including #442–#449, #6, #9, #10, #34, #498 and #499	Closed	Done
#126 image transforms	Closed	Done. The one remaining item, native sizing (an image at its own pixel size), moved to #519 for 0.0.12
#144 art in the CLI	Open	Keep open for future renderer and backend APIs
#500 tracker	Closed	Published

Known gaps

• By design. rich capture without --sanitize passes C1 controls to the panel, as it does other controls.
• Registry. Add rs-rich-macros's Trusted Publishing entry on crates.io, if not done yet, so 0.0.2 can publish from the workflow.
• Coverage. The CLI's 20,000-line view cap stays; the library renders larger files, more slowly. Windows is covered by CI (windows-latest), not by this local run.
