Terminal recordings

Every recording on this page is a real terminal session. A script called a tape types into bash on a pseudo-terminal, runs the rich binary built from this repository, and waits for the screen before each step. Nothing is drawn by hand. Press play, pause anywhere, and select the text: the recordings are asciinema casts, not videos.

The screenshots under each recording are taken from the same run. CI re-runs every tape and fails when any screenshot's text no longer matches, so this page cannot drift from what the CLI does. How it works is at the end.

Gallery

Point at a card, or move to it with Tab, to play its recording. With reduced motion turned on in your system settings the cards stay still.

One binary, every format Watch a file Page and search Ask for a line Components Ask for more in a script Explore a document An interactive component Overlays and chrome Charts from data Dependency trees DOT in Markdown Micro assets The guided tour The 0.0.13 release

One binary, every format

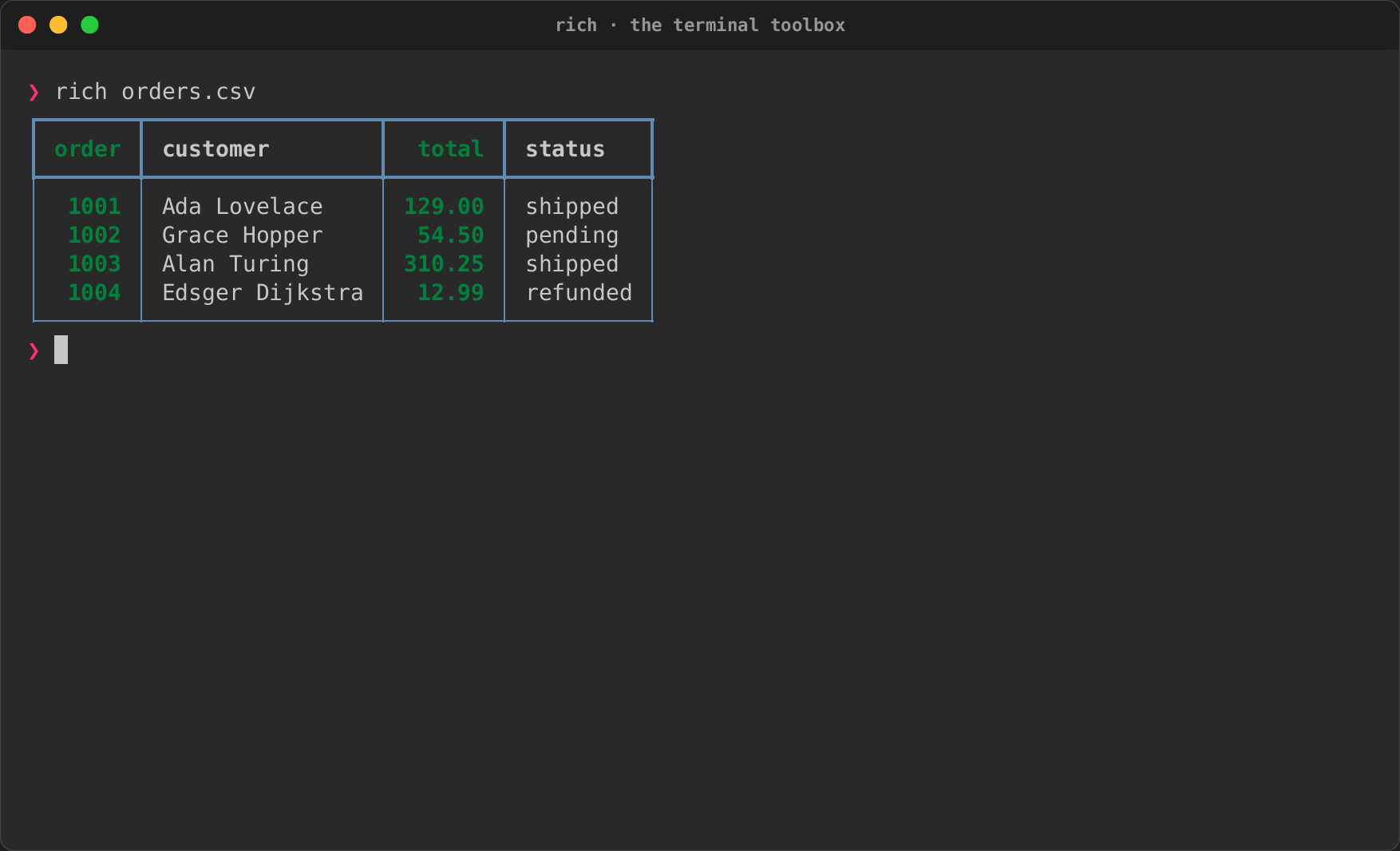

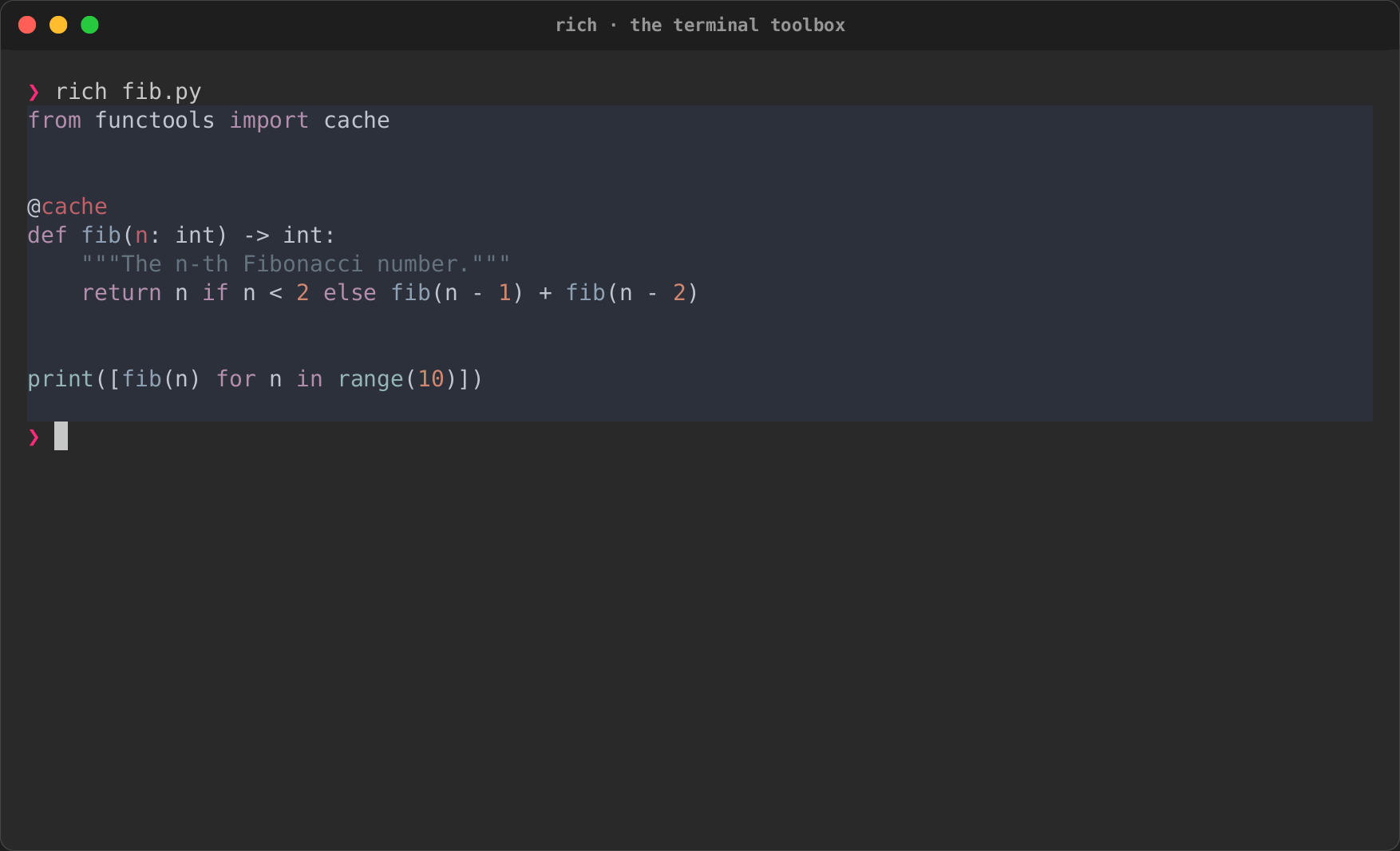

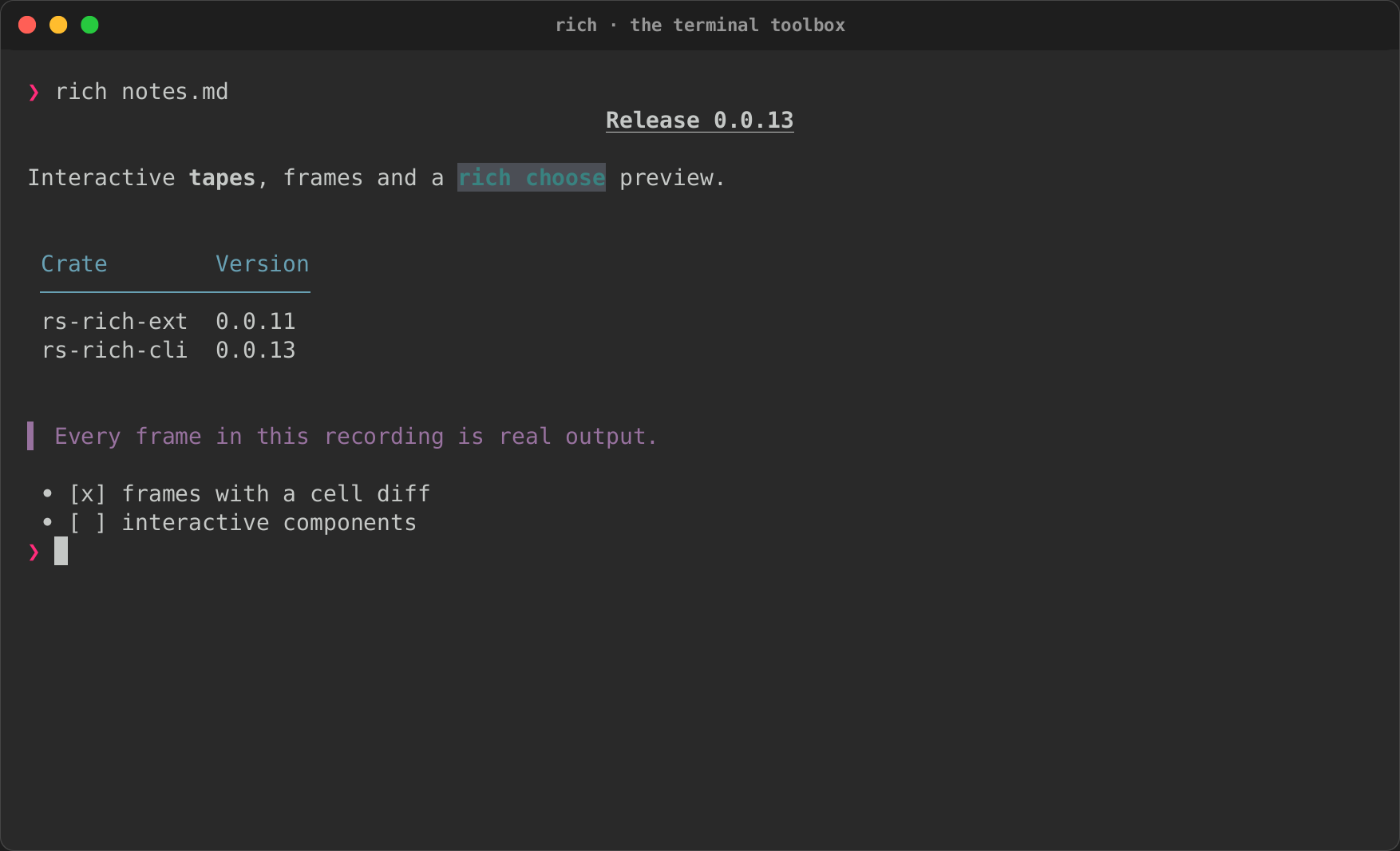

Markdown, CSV and source code, each rendered from a plain rich FILE.

Markdown	CSV	Code

Tape · Cast · GIF · Page

Watch a file

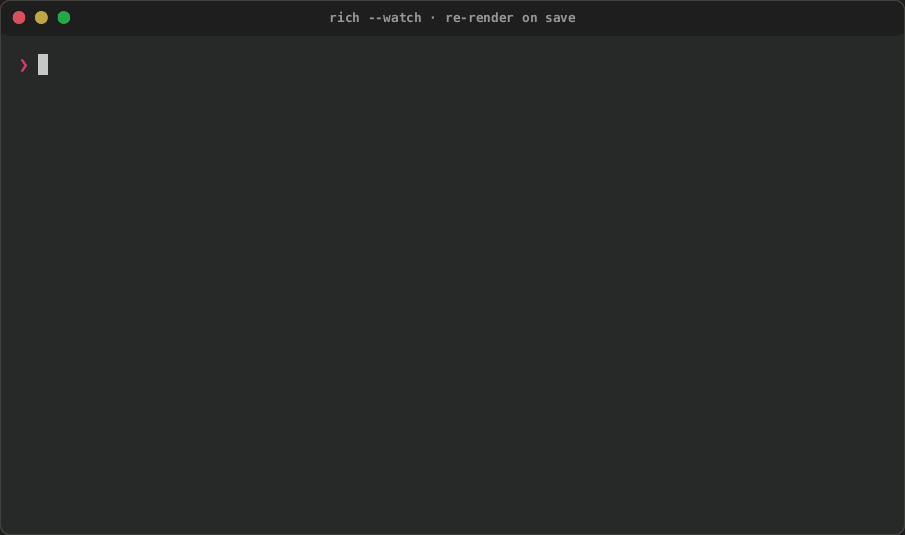

rich --watch renders a file and renders it again on every save. Here the tape edits service.json from outside the terminal while rich watches it.

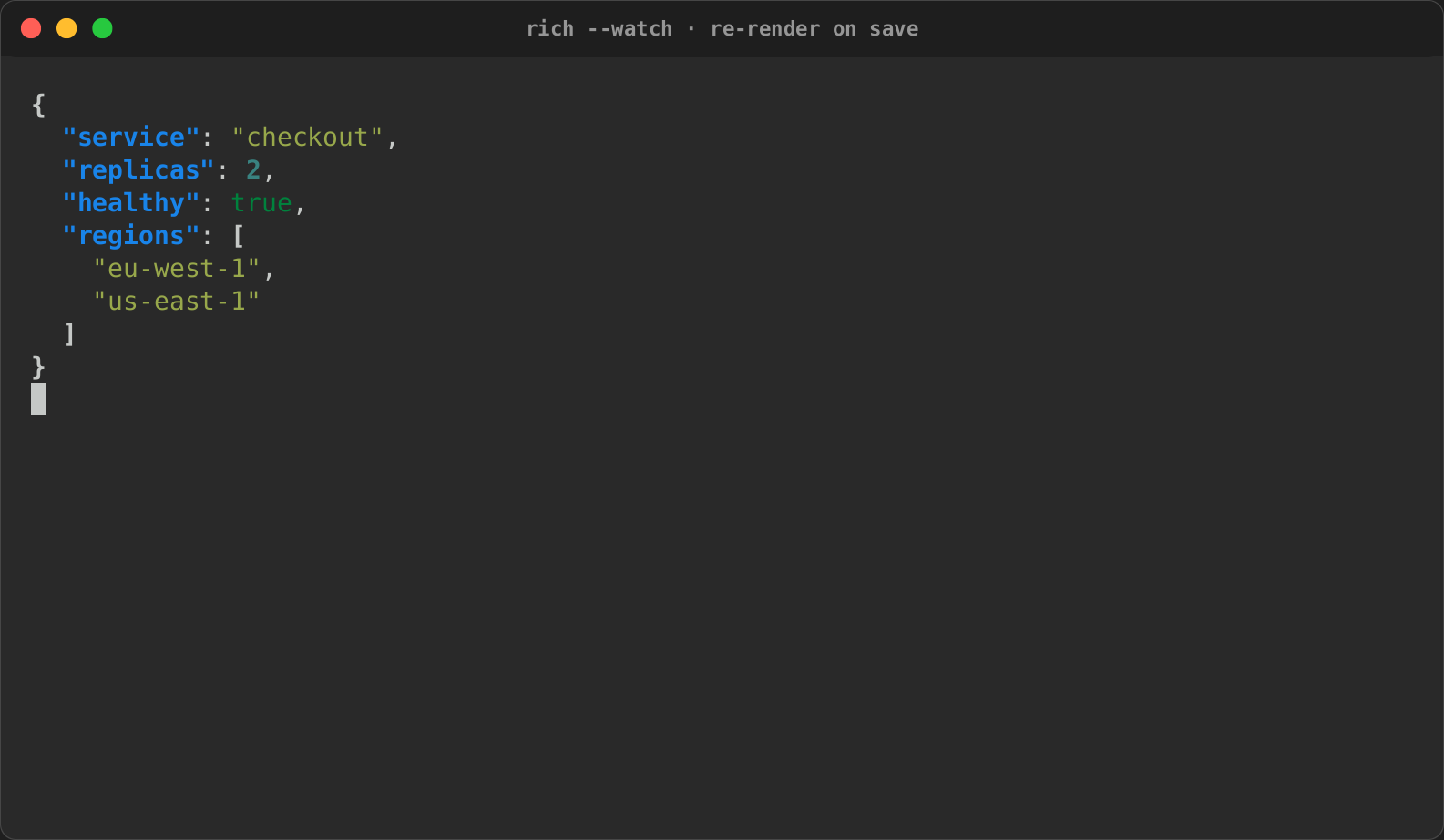

Before the edit	After the edit

Tape · Cast · GIF · Page

Page and search

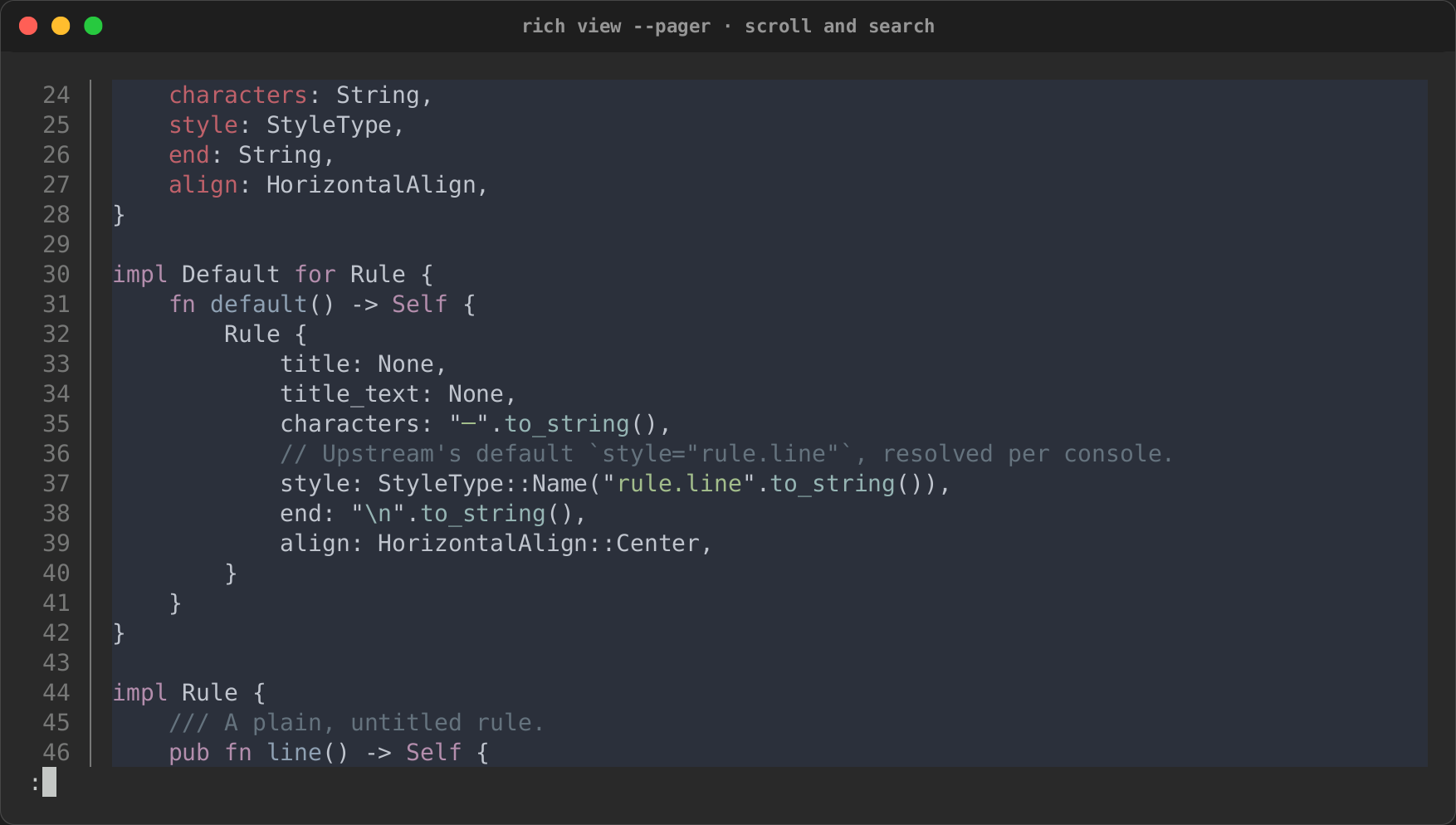

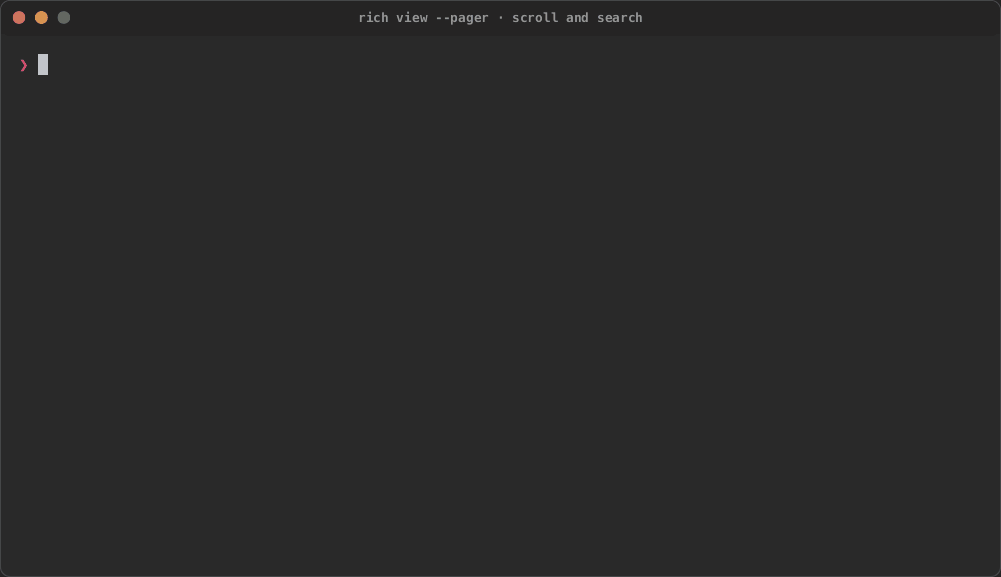

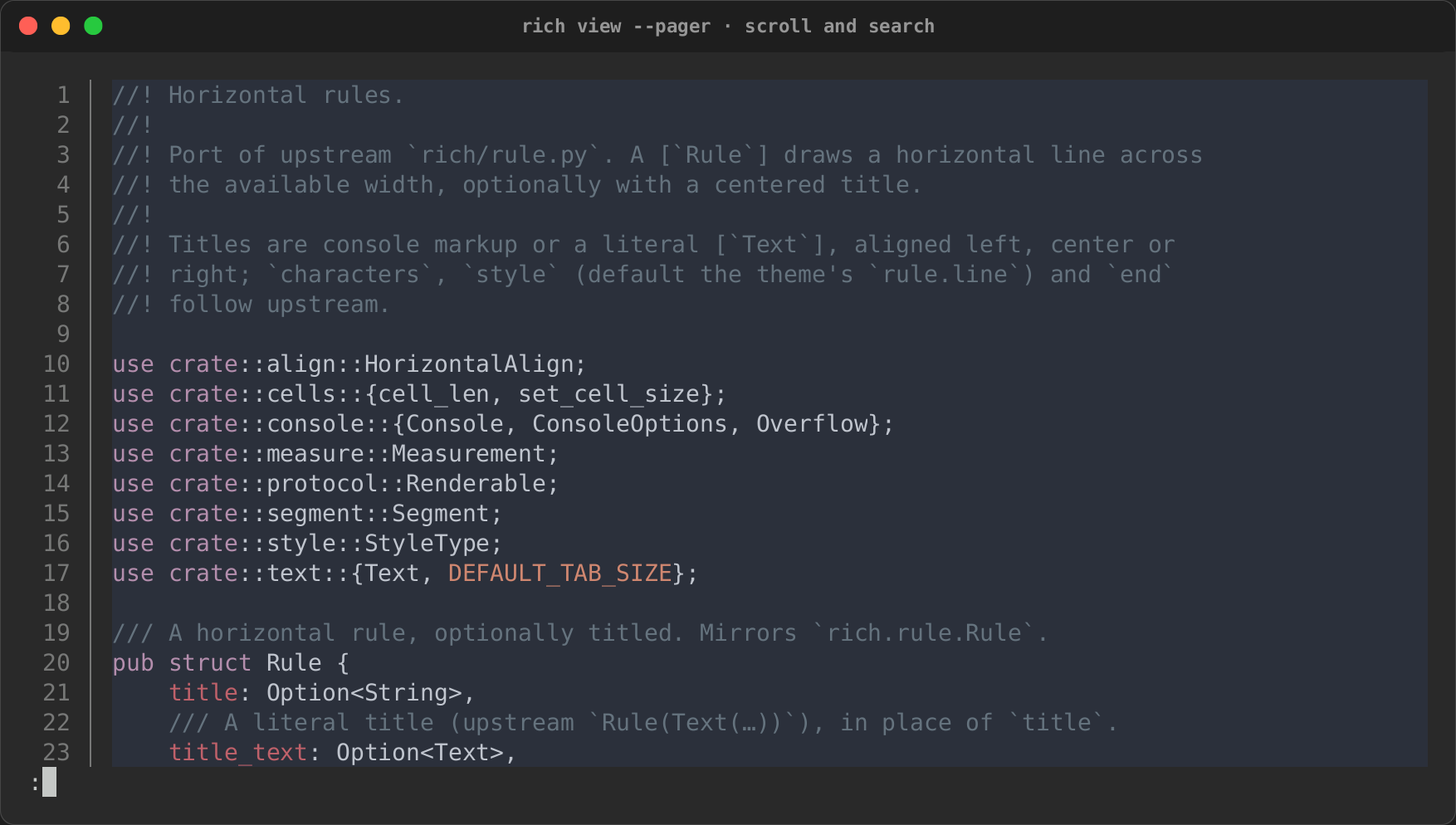

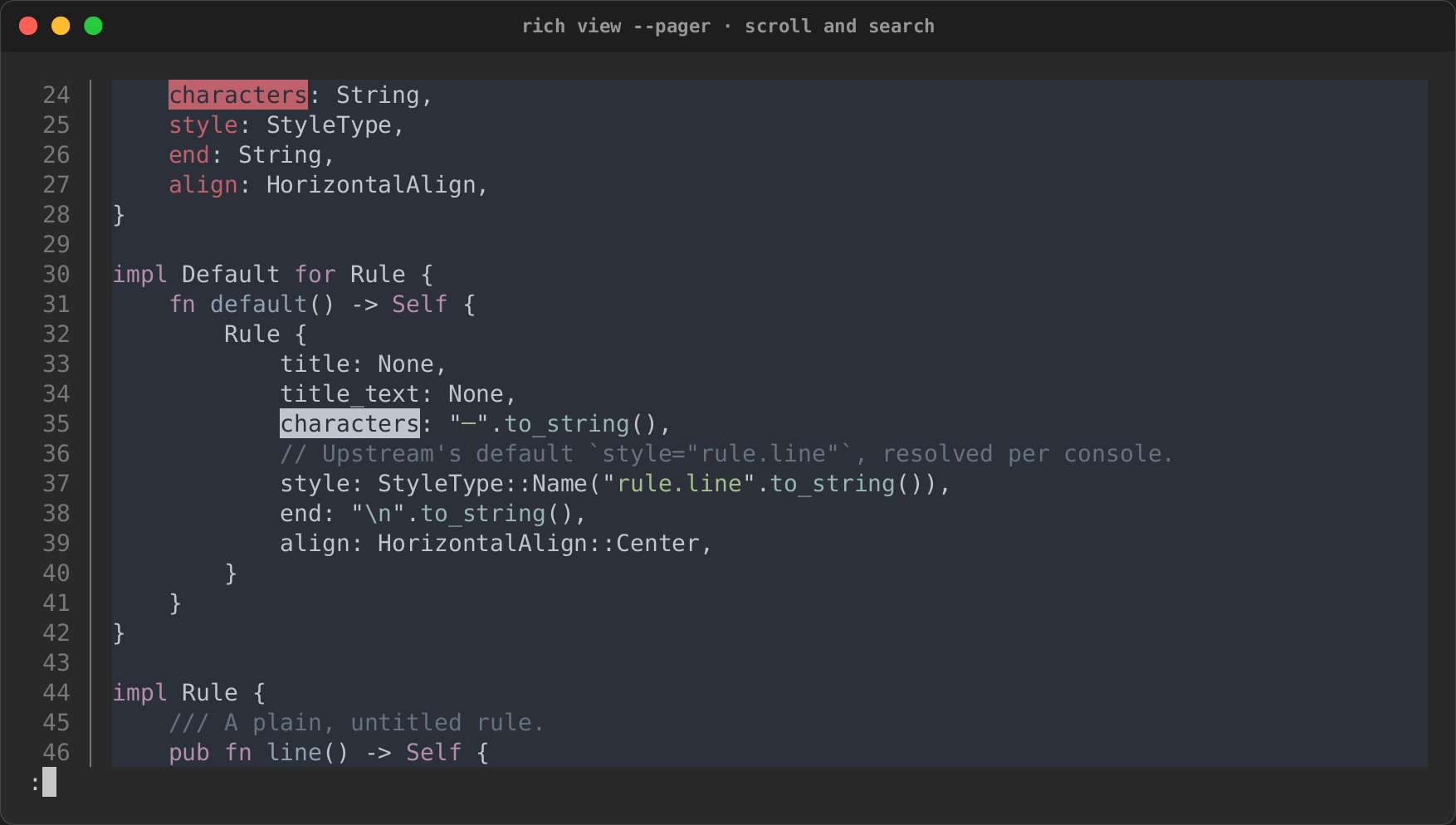

rich view --pager numbers and highlights a file, then hands it to less: page down, then /characters to search.

Opened	Paged down	Searched

Tape · Cast · GIF · Page

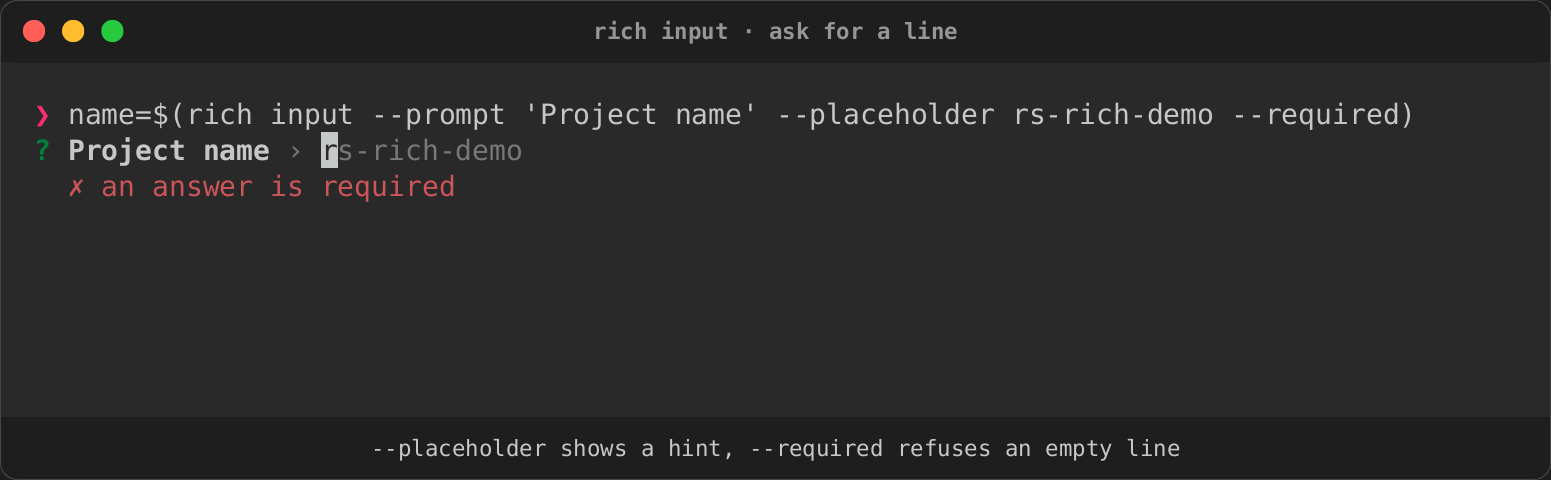

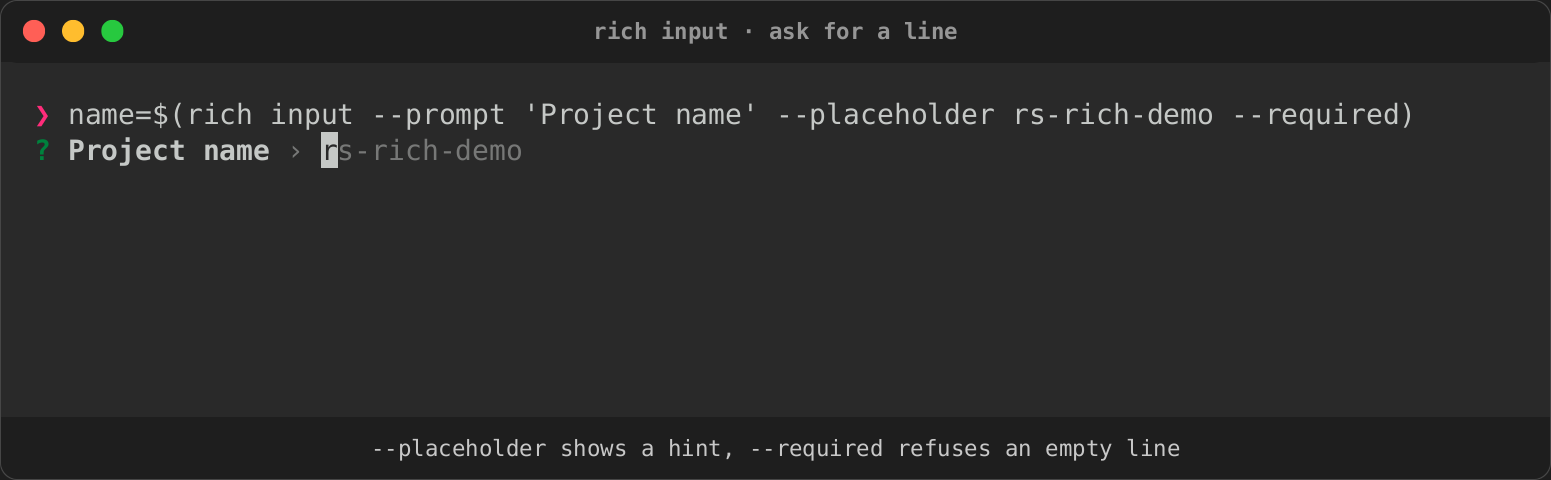

Ask for a line

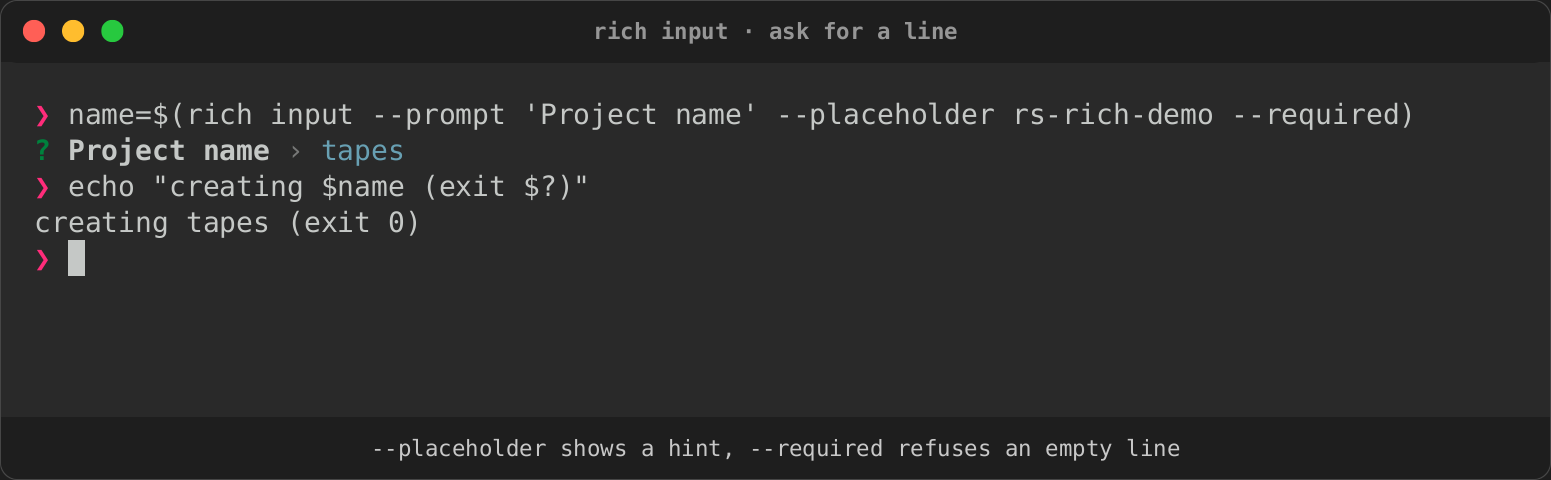

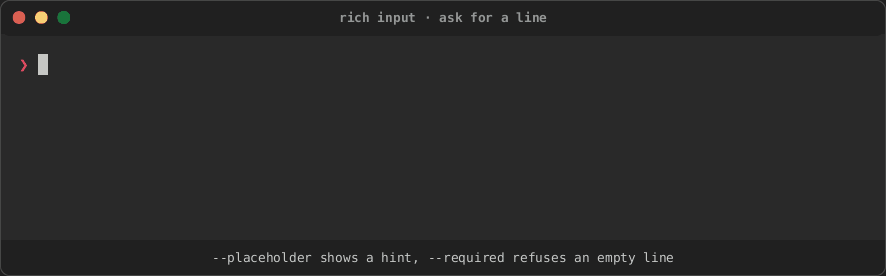

rich input reads one line for a script. --placeholder shows a hint while the line is empty, and --required refuses an empty answer with an error under the line. The answer is captured with $(…).

Placeholder	Required	Answered

Tape · Cast · GIF · Page

Components

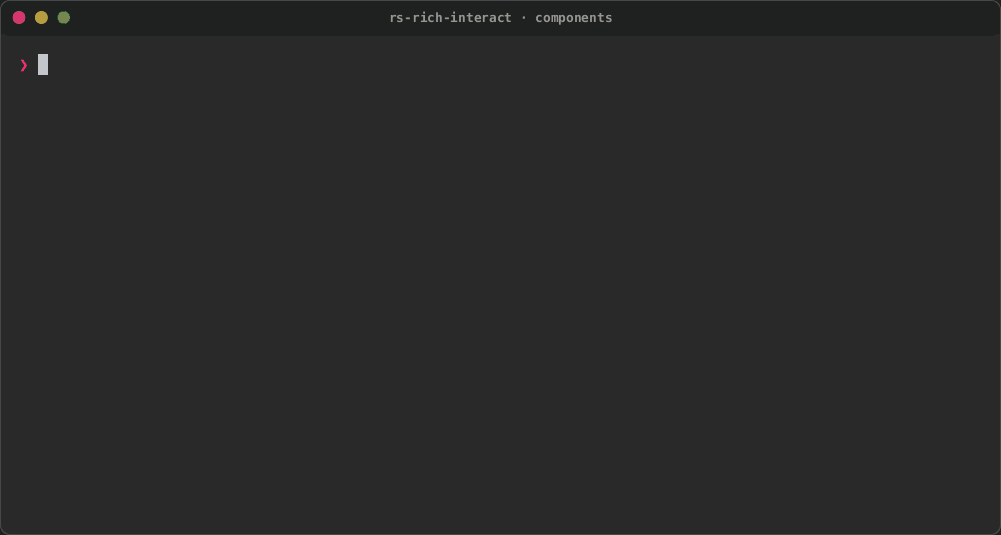

Every rs-rich-interact component, one after another, recorded in a small fixture project:

• a fuzzy file picker with a highlighted preview;
• a multi-select;
• an input with suggestions and validation;
• a confirmation sheet with a diff and four choices;
• a form that reports an error under its field;
• a pager that searches.

See Interactive components.

Select	Input	Confirm
Form	MultiSelect	Pager

Tape · Cast · GIF · Page

Ask for more in a script

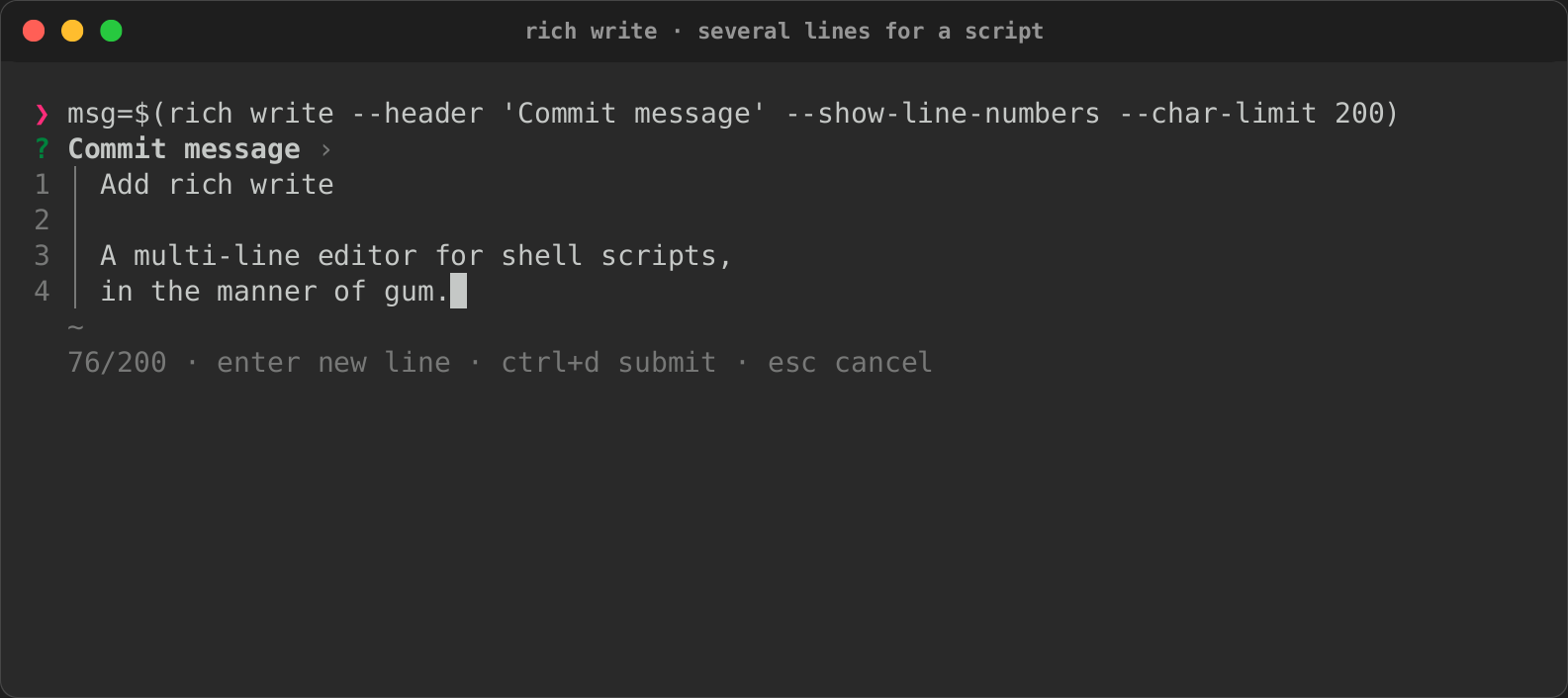

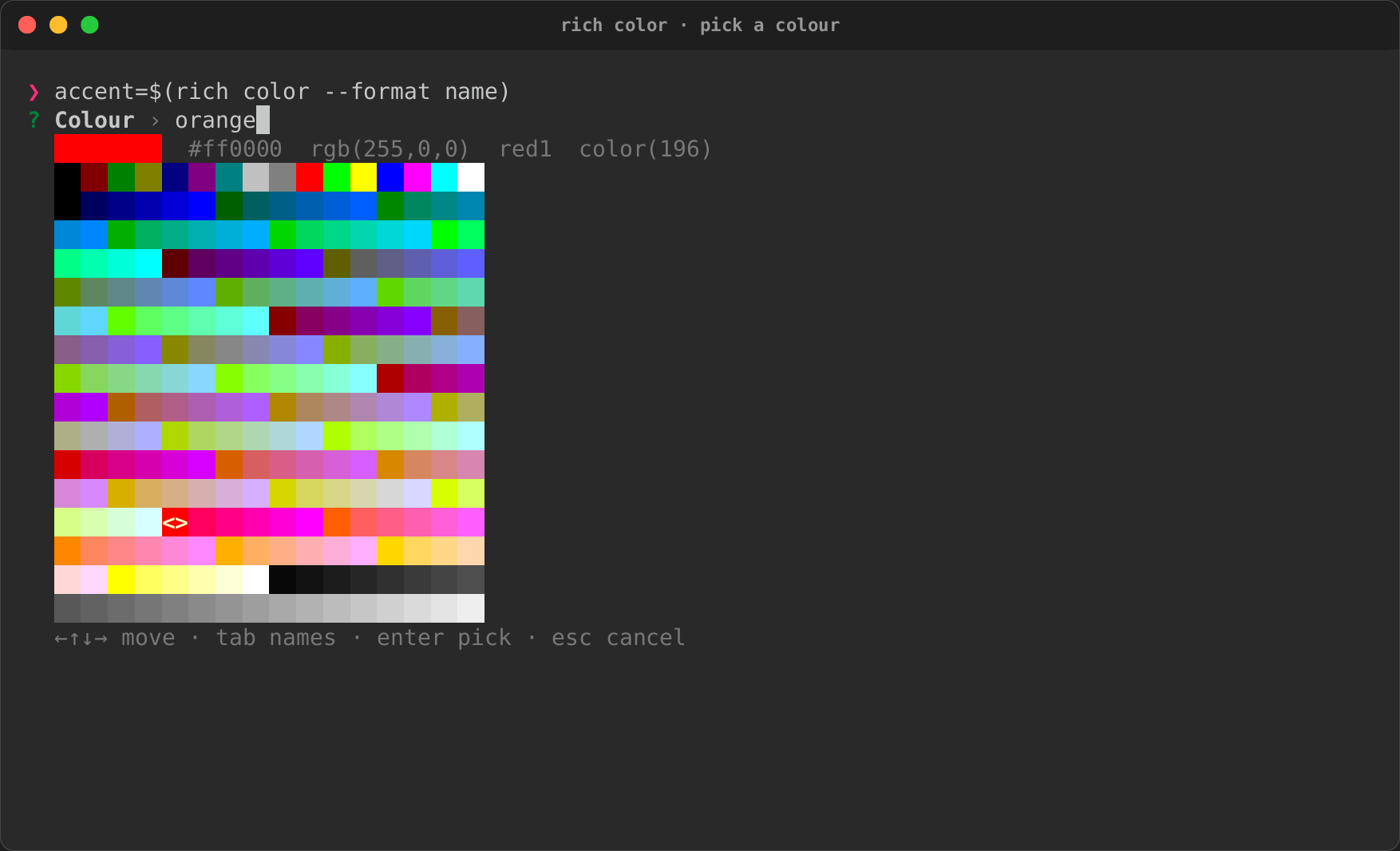

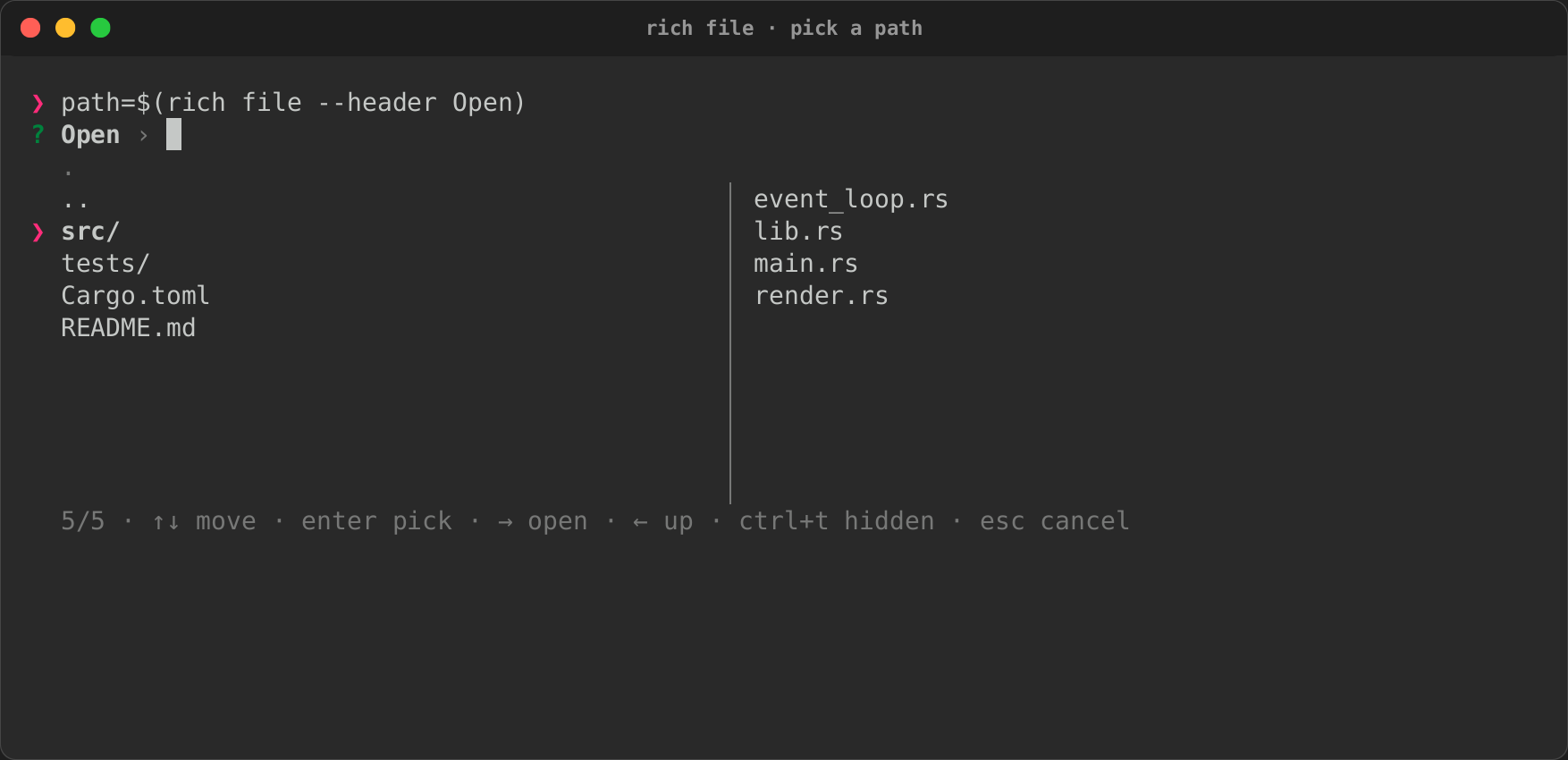

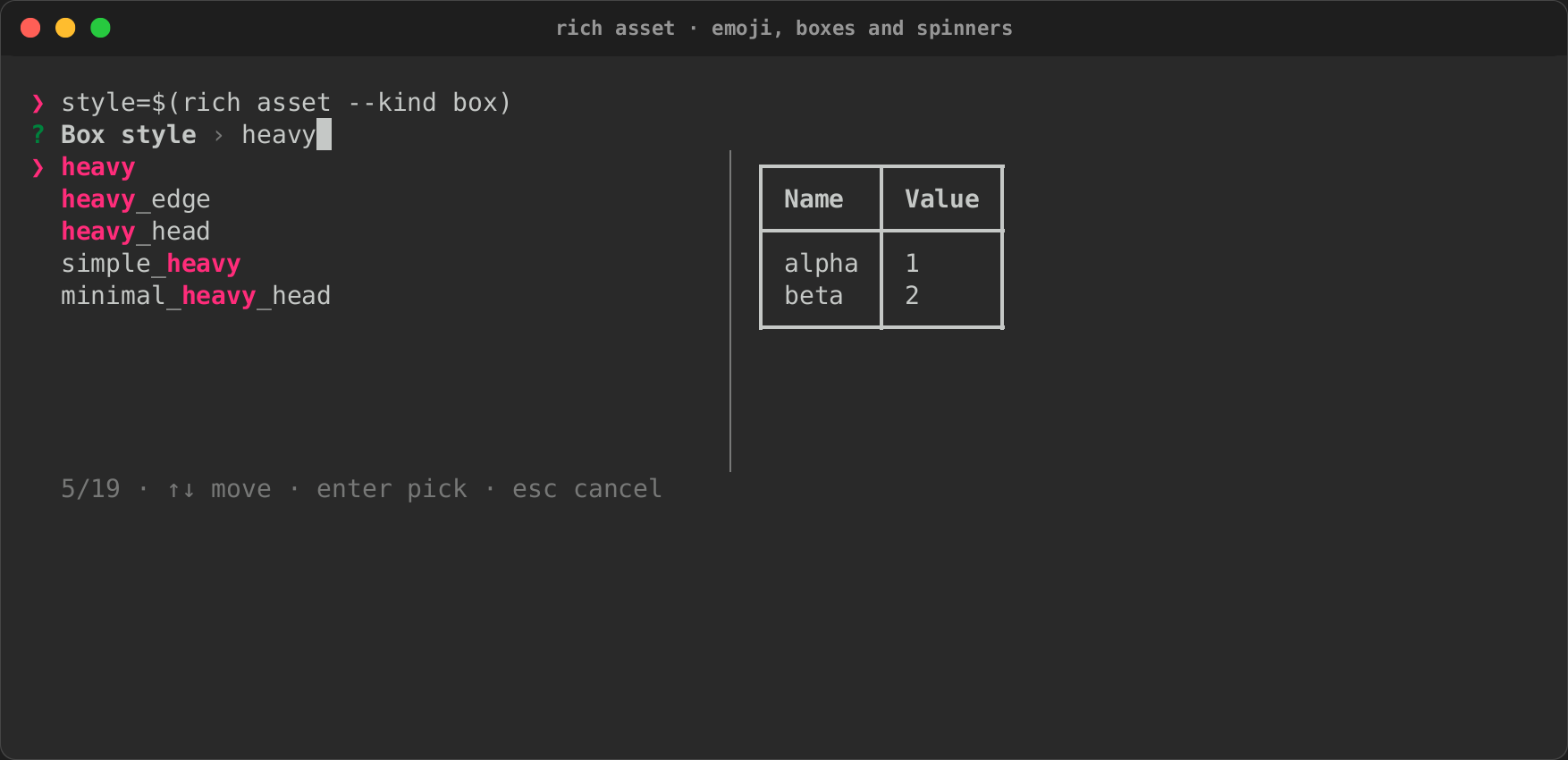

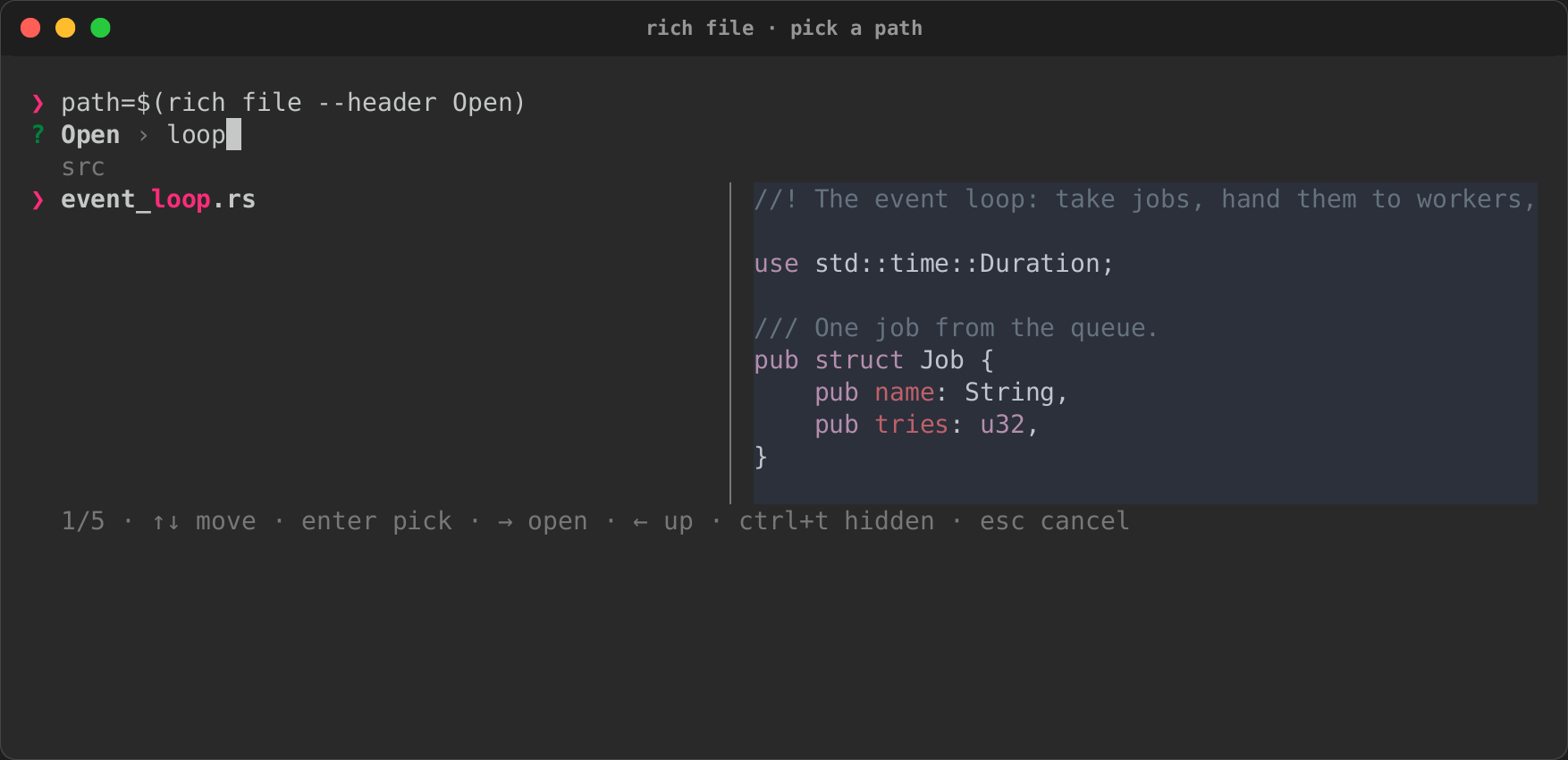

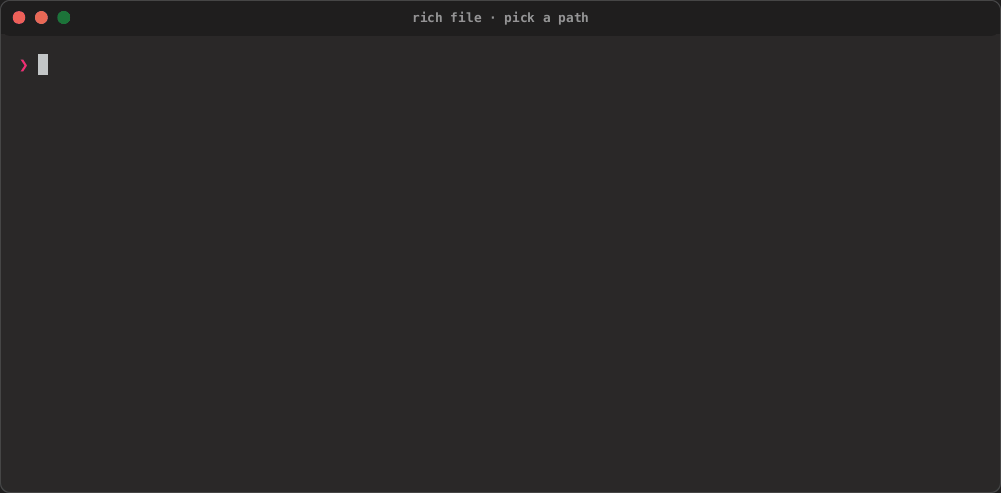

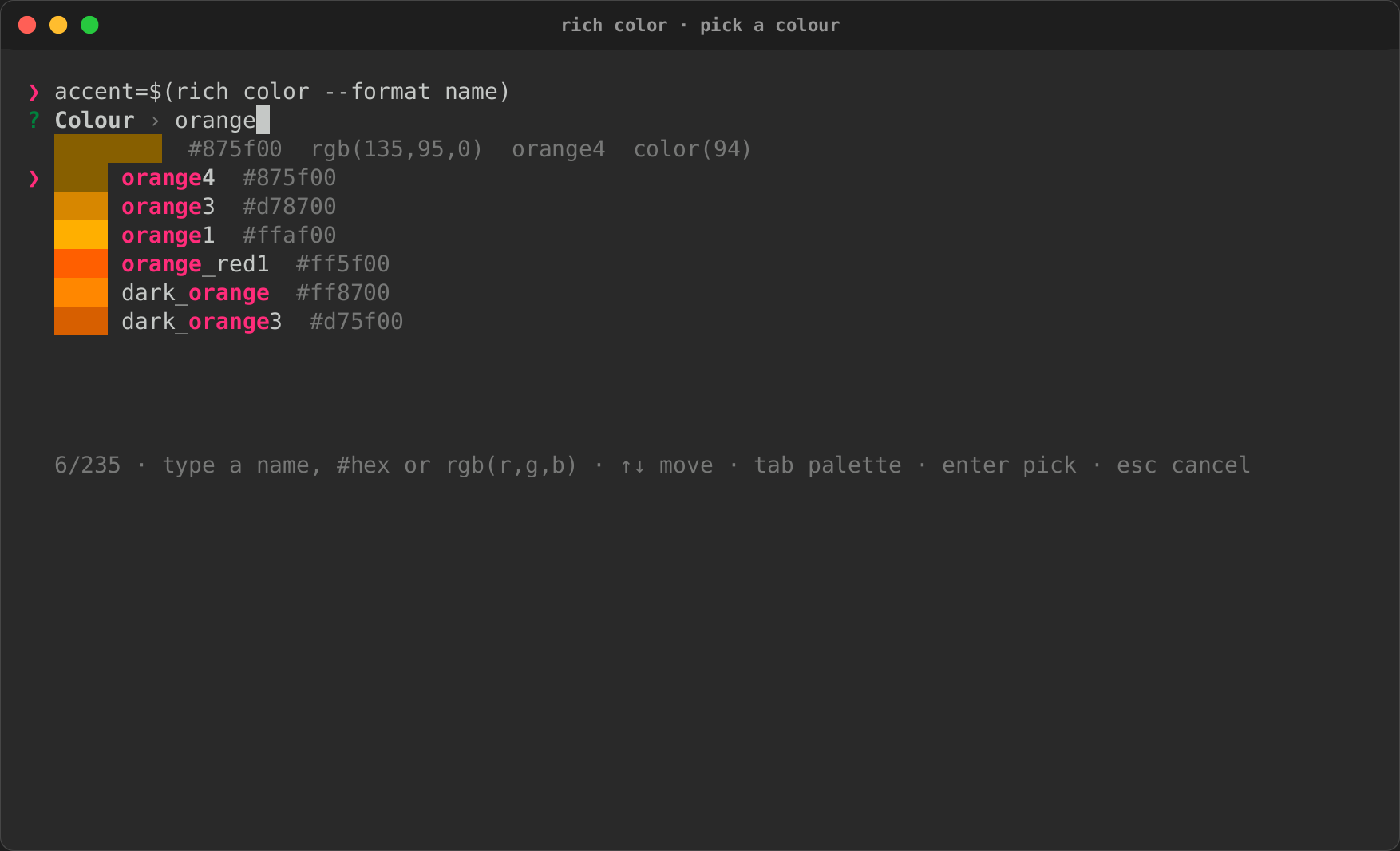

rich write, rich file, rich color and rich asset, each captured into a shell variable with $(…): several lines of a commit message, a path picked from the fixture project with its preview, a colour from the names and the palette, and an emoji and a box style used together. See Ask in a script.

rich write	rich file	rich file
rich color	rich color	rich asset

write tape · cast · page · file tape · cast · page · color tape · cast · page · asset tape · cast · page

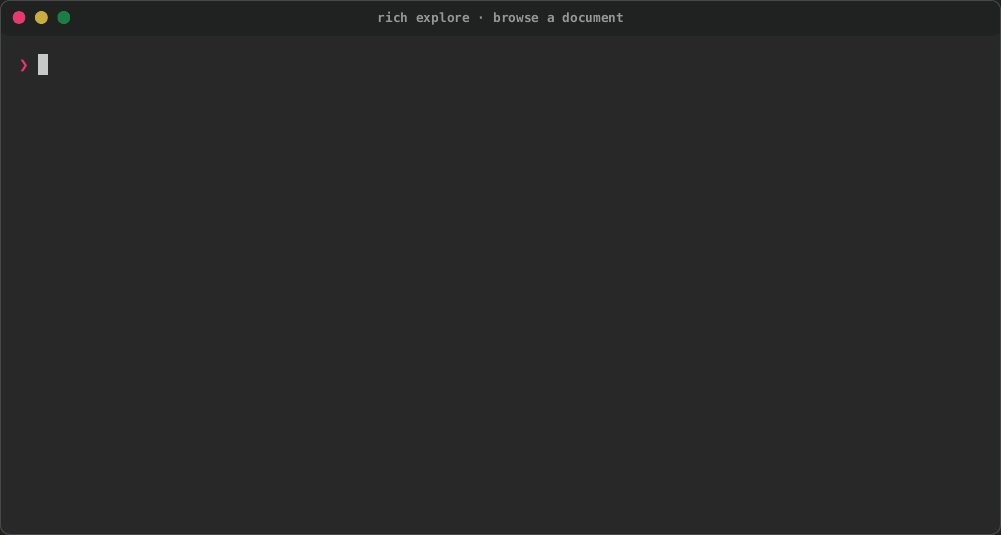

Explore a document

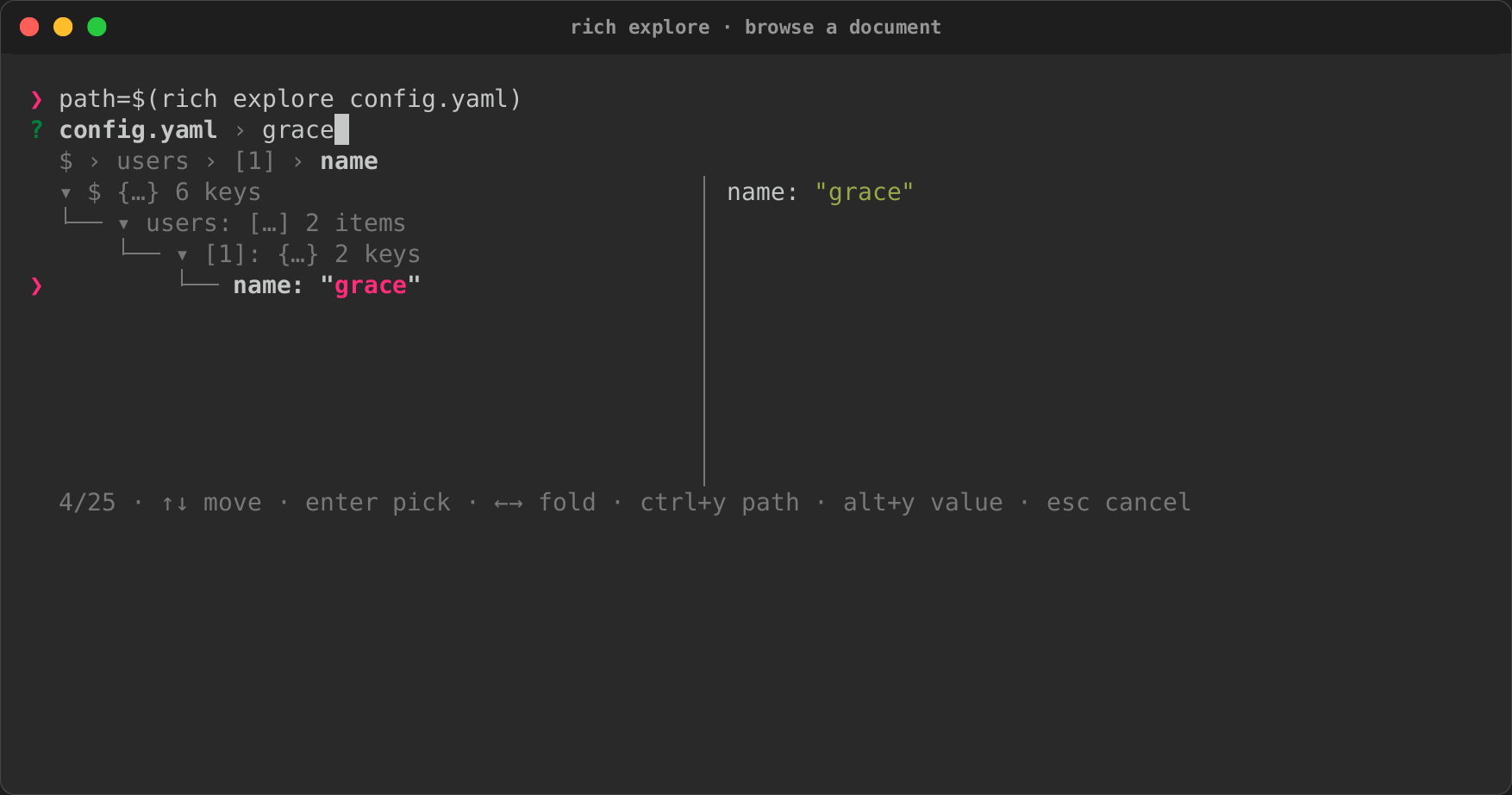

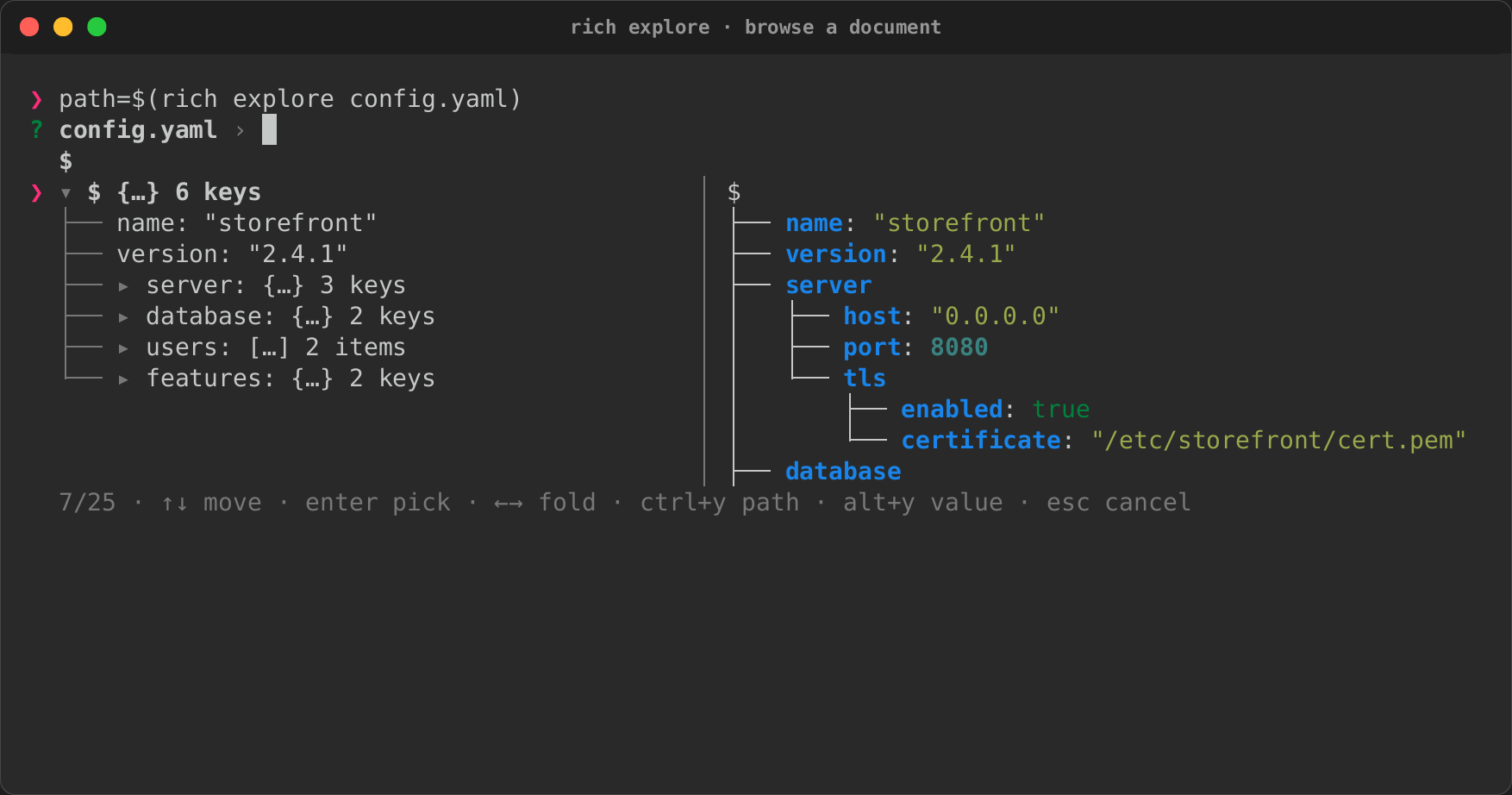

rich explore on a YAML file: a container opened, the breadcrumbs following the cursor, the path copied, a search that keeps the match's ancestors, and the JSONPath captured by the script. See Explore it interactively.

Folded	Opened	Searched

Tape · Cast · GIF · Page

An interactive component

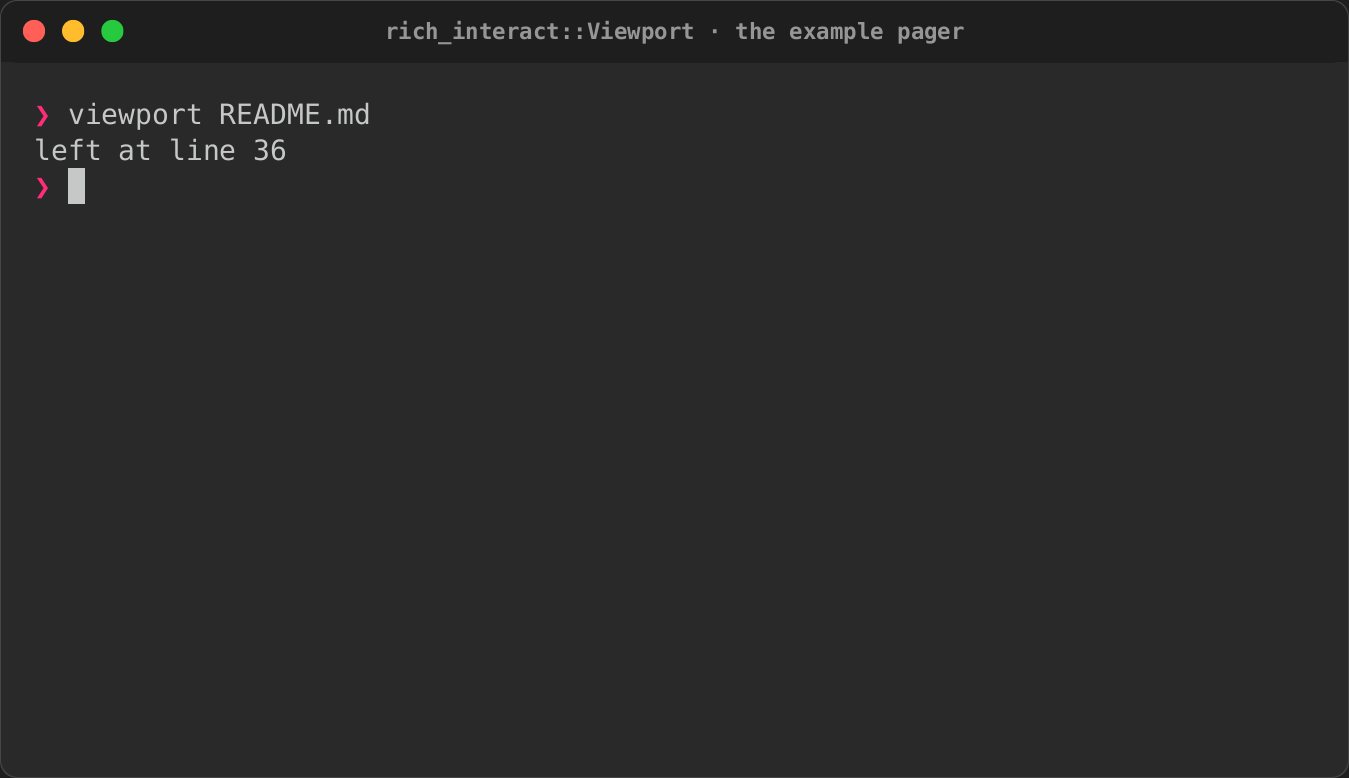

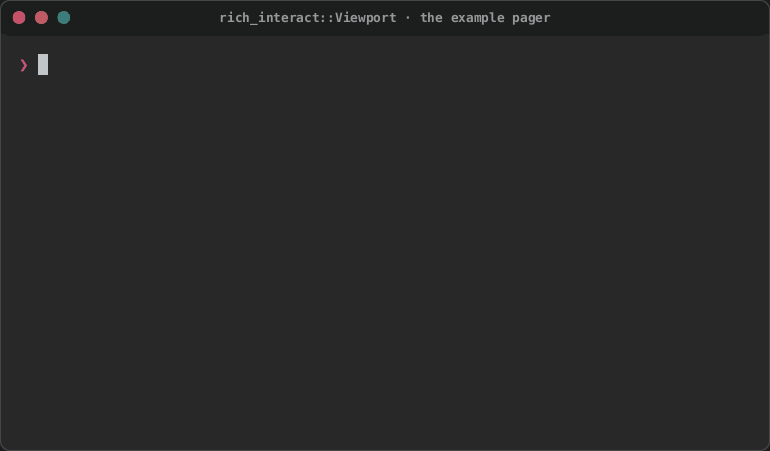

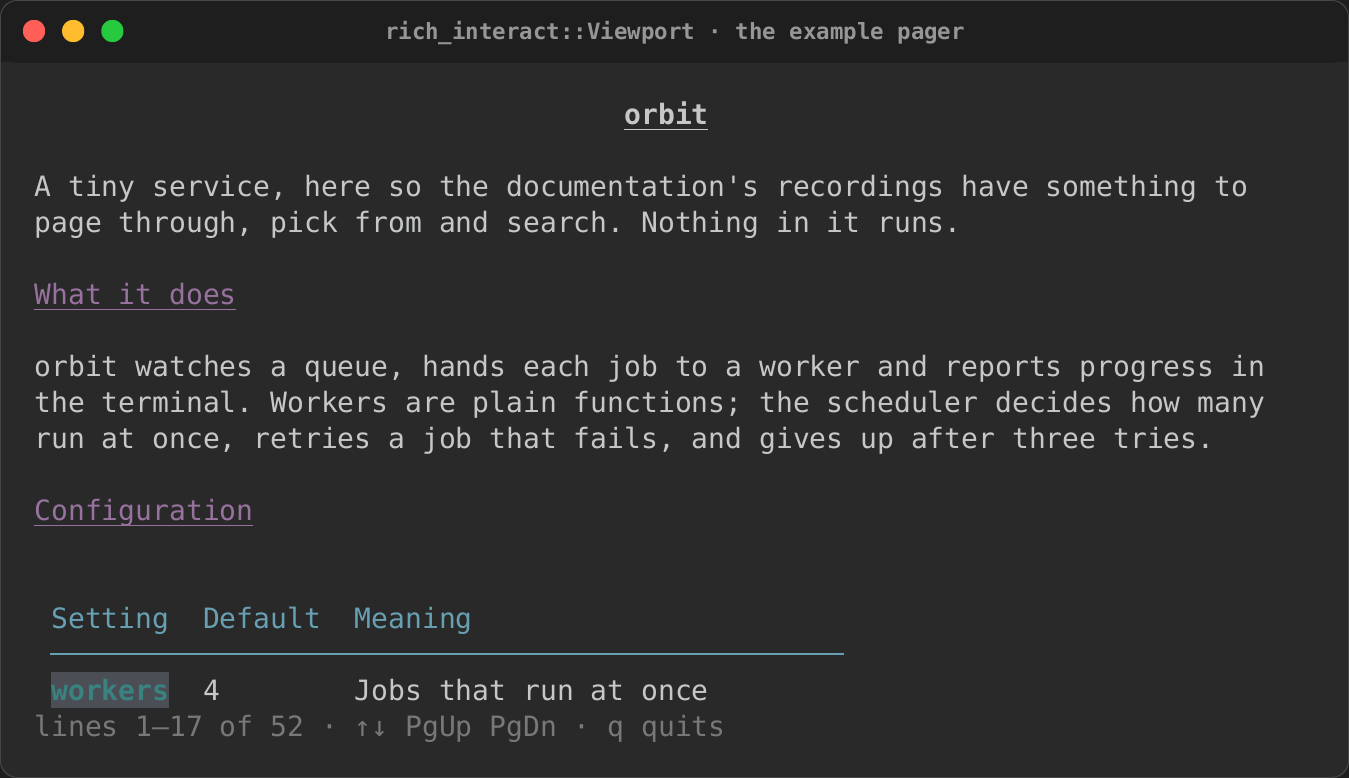

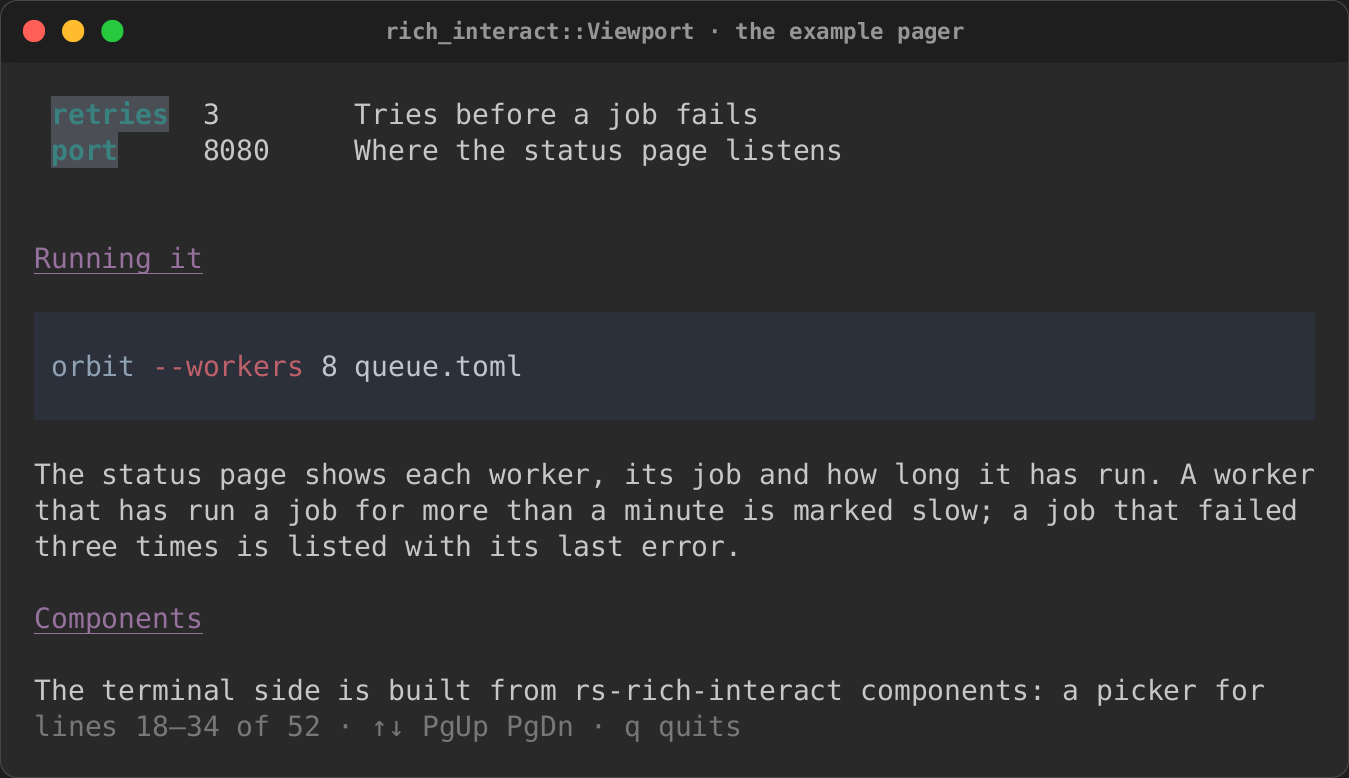

rs-rich-interact's Viewport, run as its example pager, pages a Markdown file on the alternate screen. Each key repaints only the cells that changed. Enter gives the terminal back, as it was, with the line it was left at. See Interactive components.

Opened	Paged down	Given back

Tape · Cast · GIF · Page

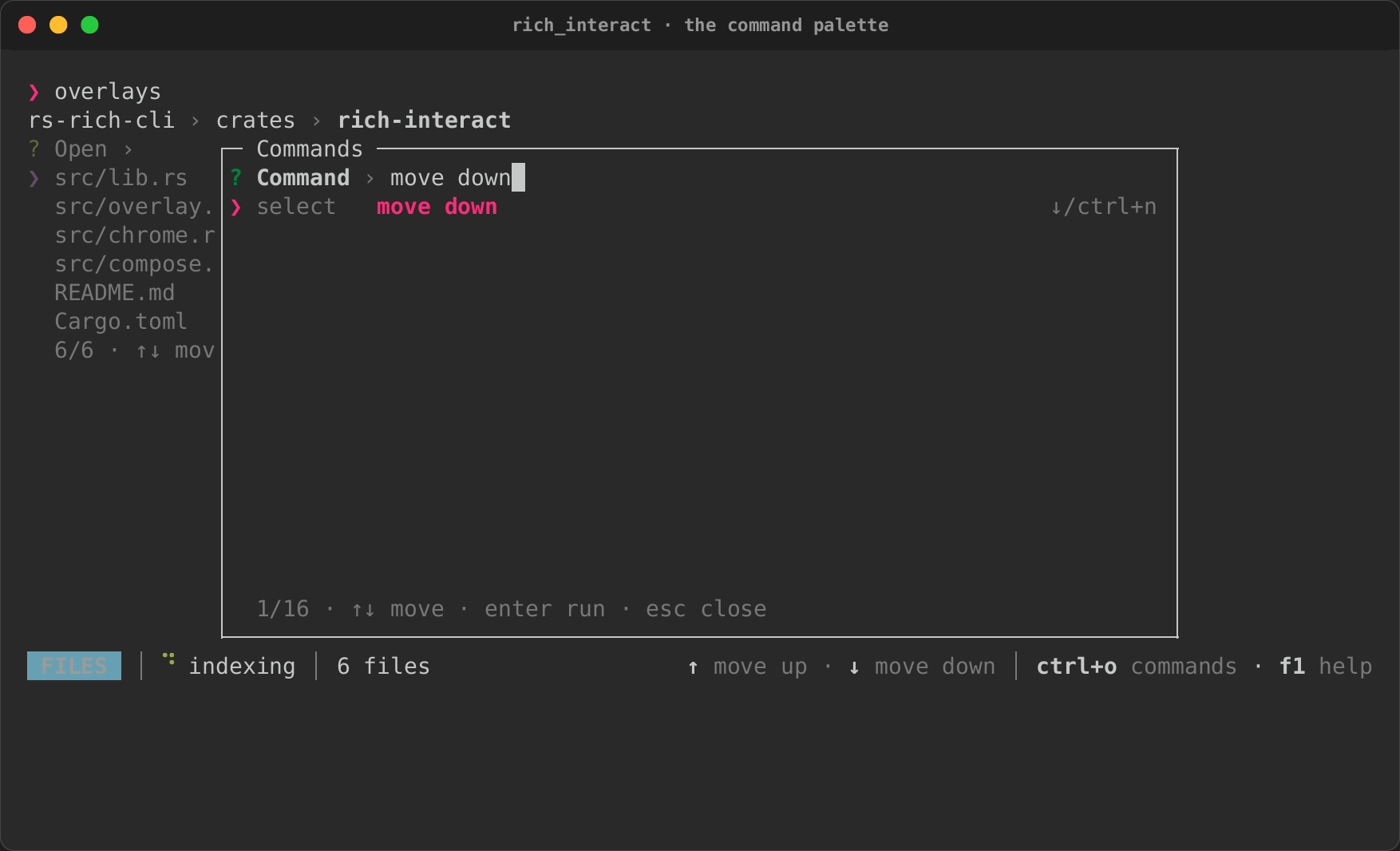

Overlays and chrome

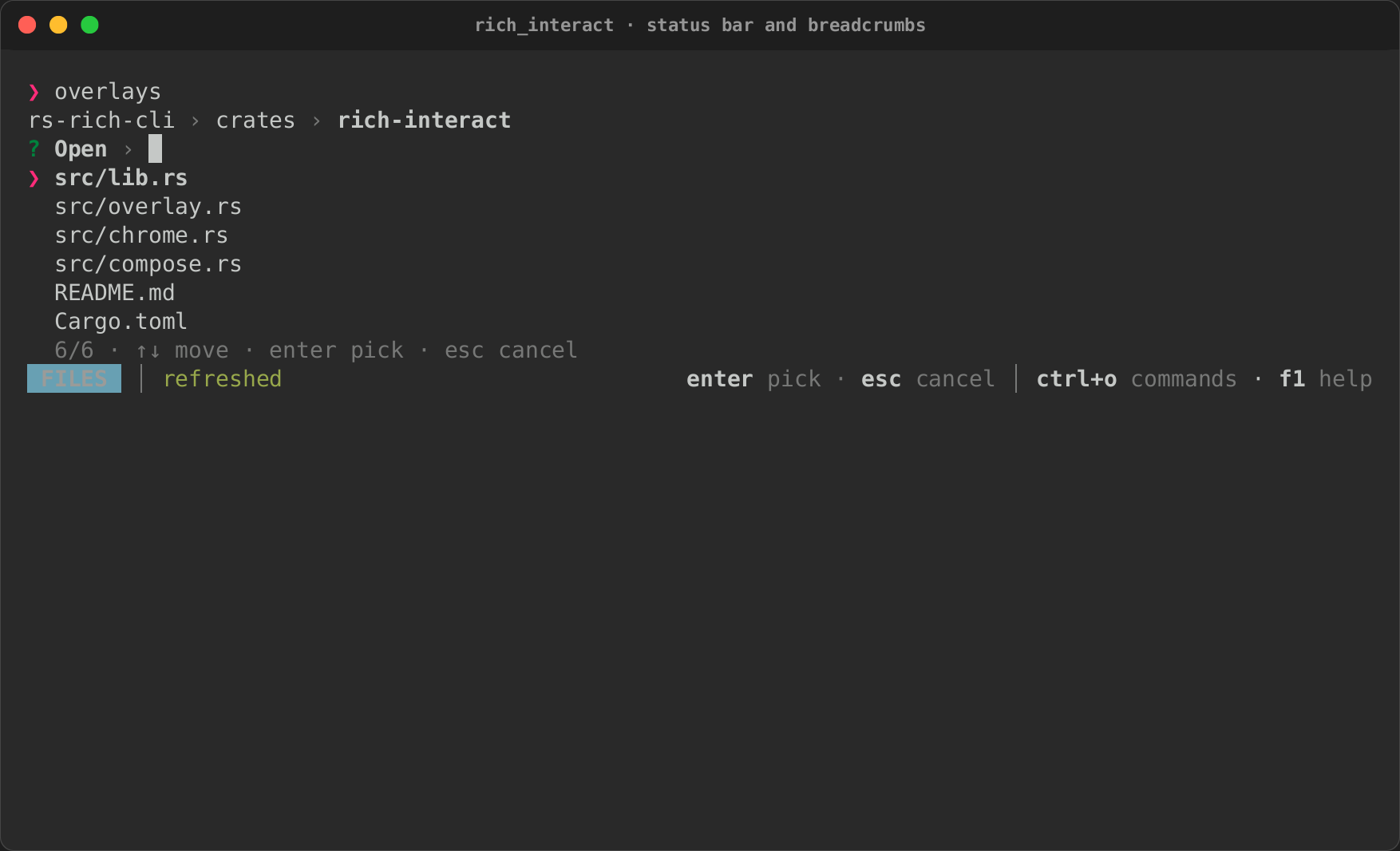

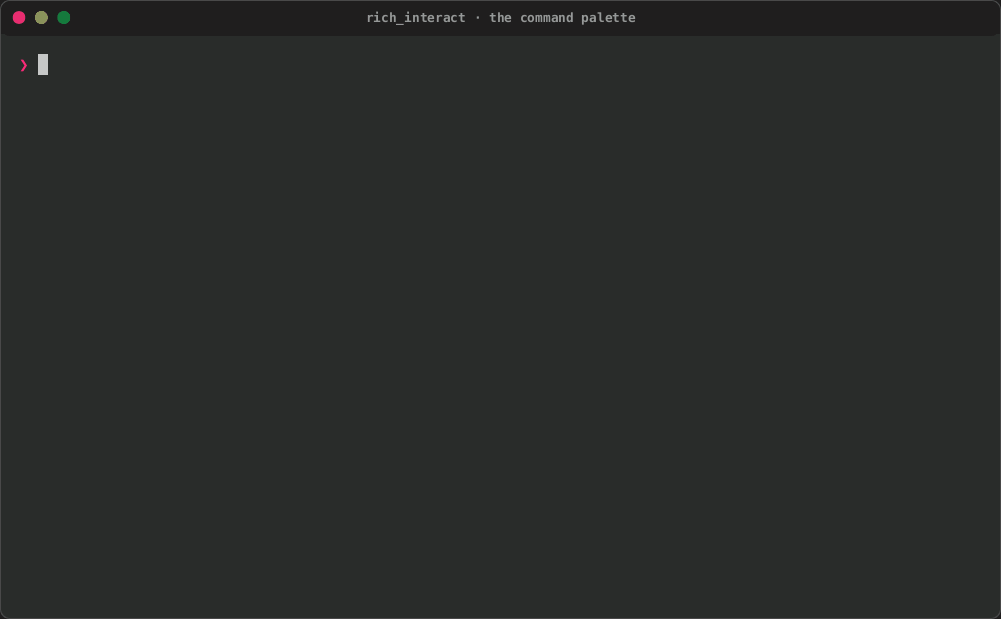

rs-rich-interact's overlays and chrome, run as its overlays example: a file list wrapped in Overlays. Ctrl+O opens the command palette, which lists every key the list has, by category, with its shortcut, and runs the one picked. The help overlay groups the keys and searches them as you type. Under the list, a status bar shows a badge, a spinner, a note and key hints from the keymap. Breadcrumbs sit over the list, and Ctrl+K opens the region's actions in a modal. See Overlays and chrome.

The palette	Searched	Run

Tape · Cast · GIF · Page

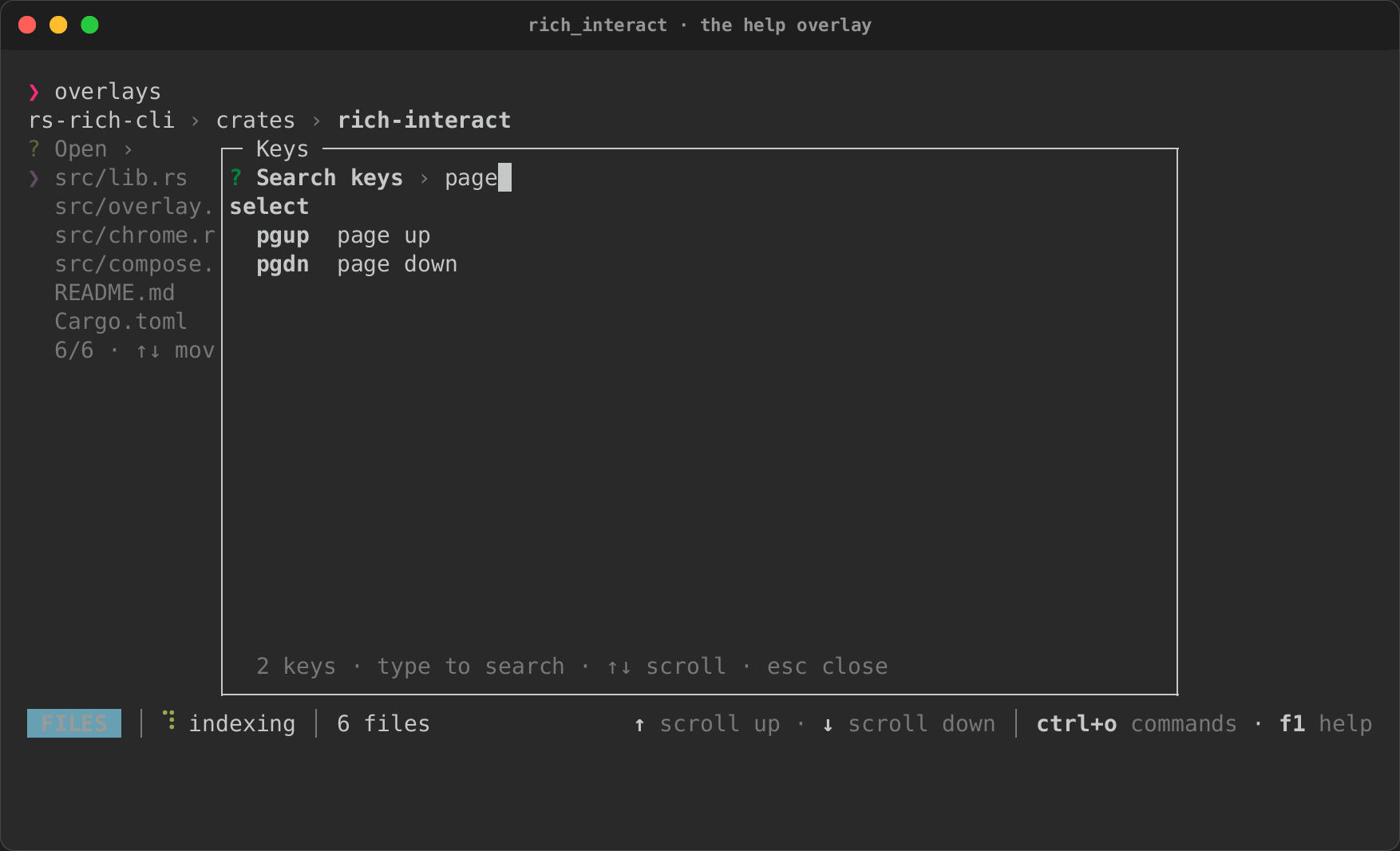

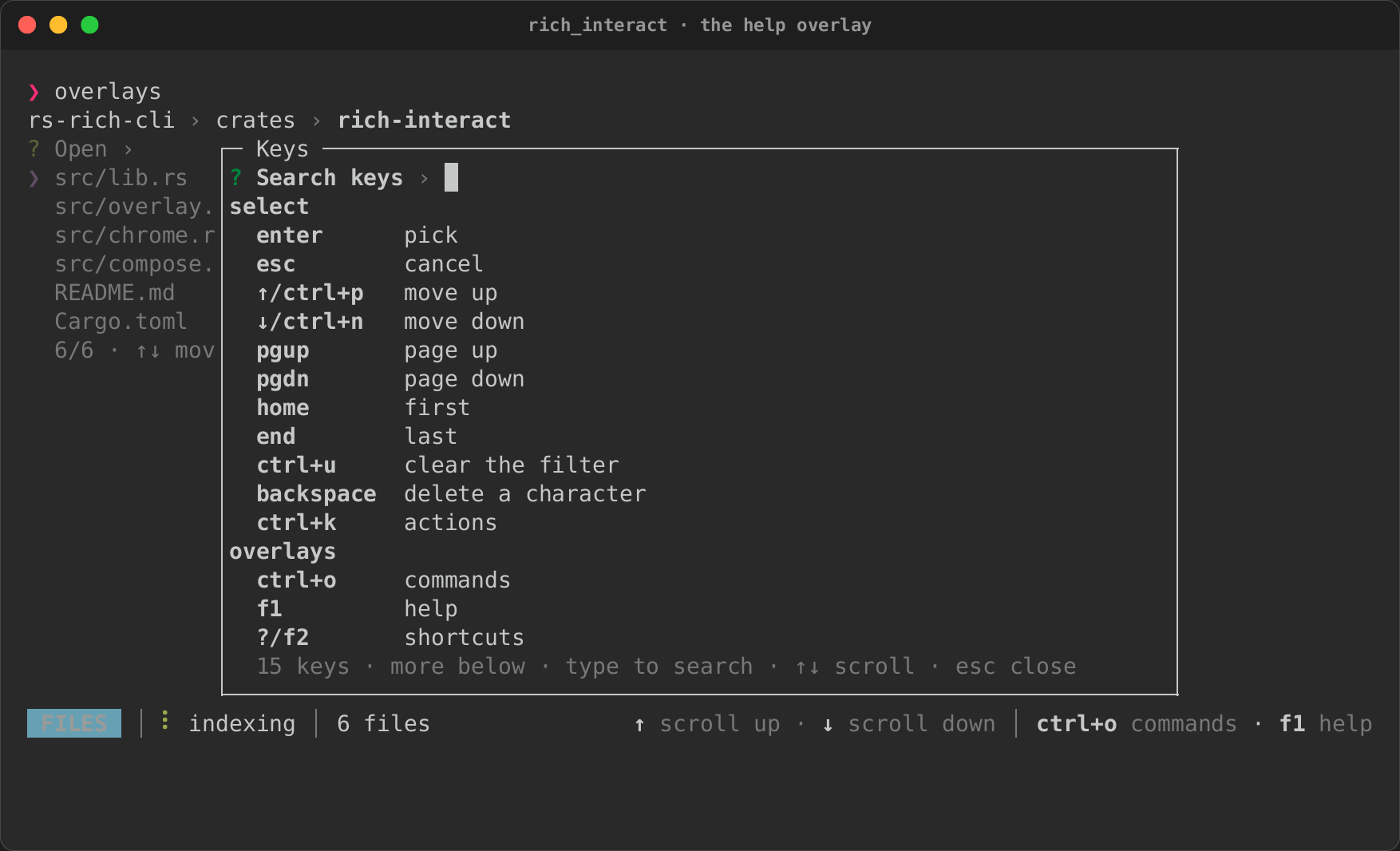

Help	Searched

Tape · Cast · GIF · Page

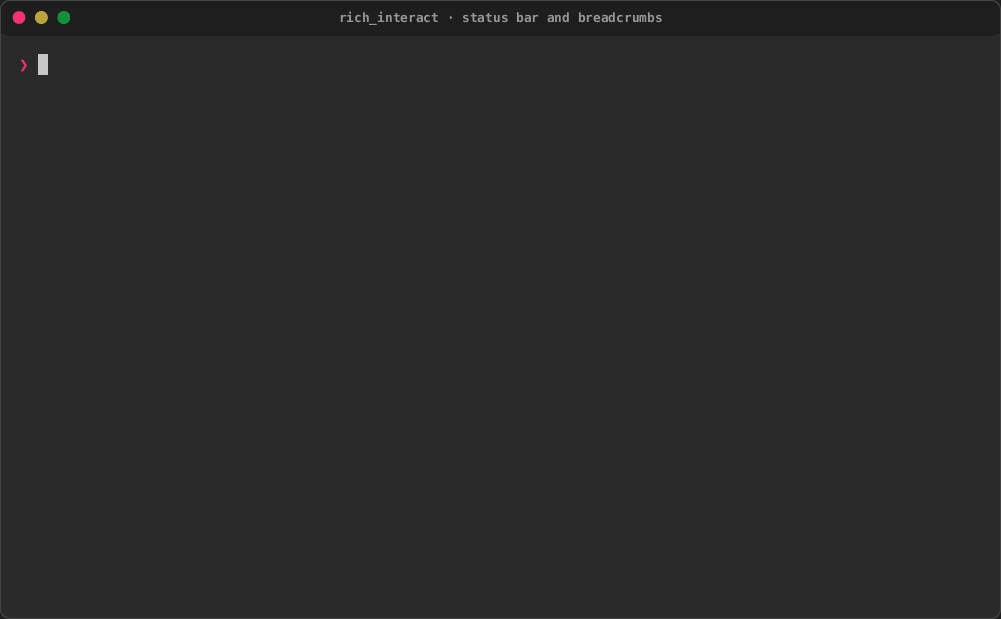

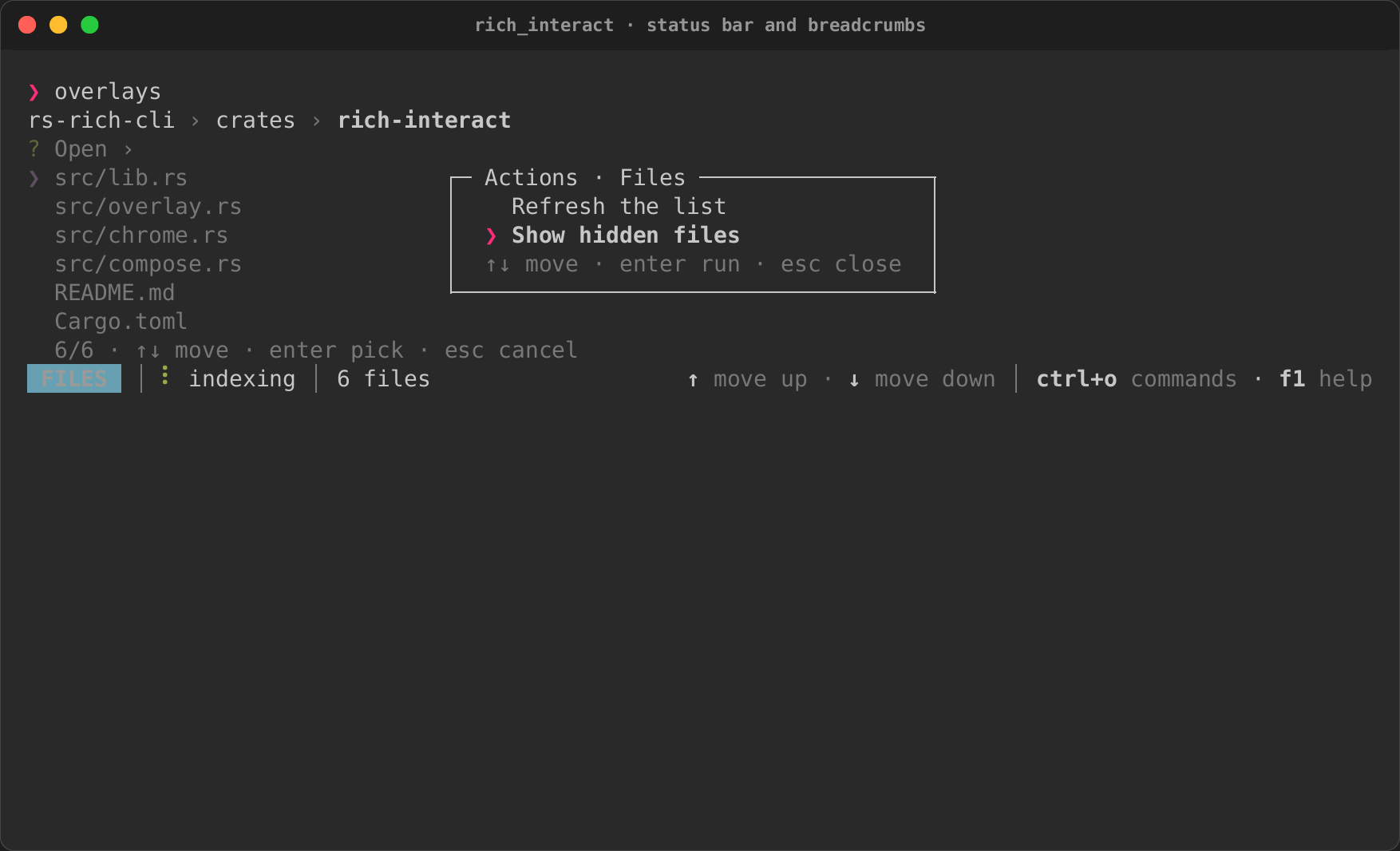

The status bar	Region actions	A command ran

Tape · Cast · GIF · Page

Charts from data

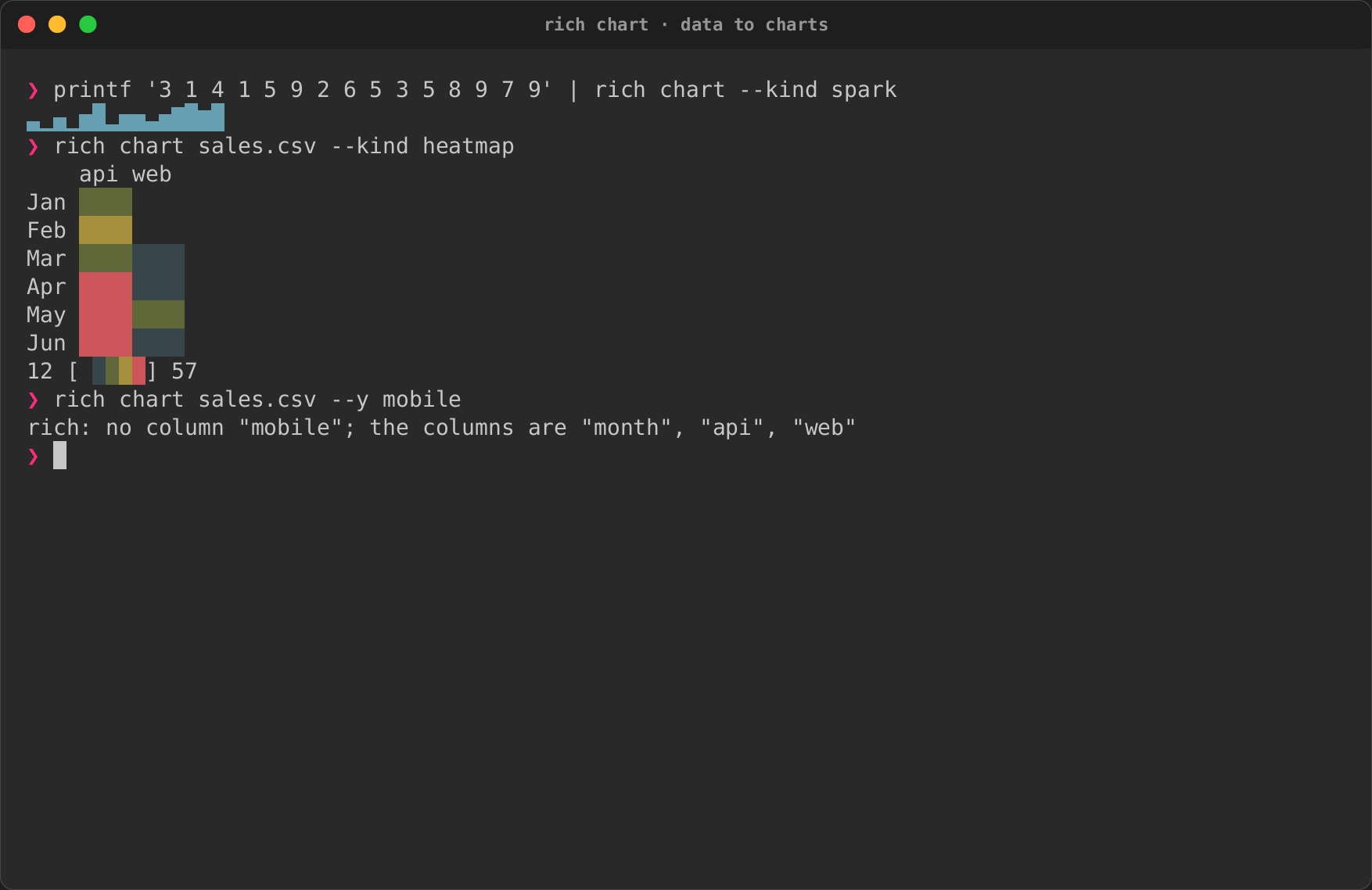

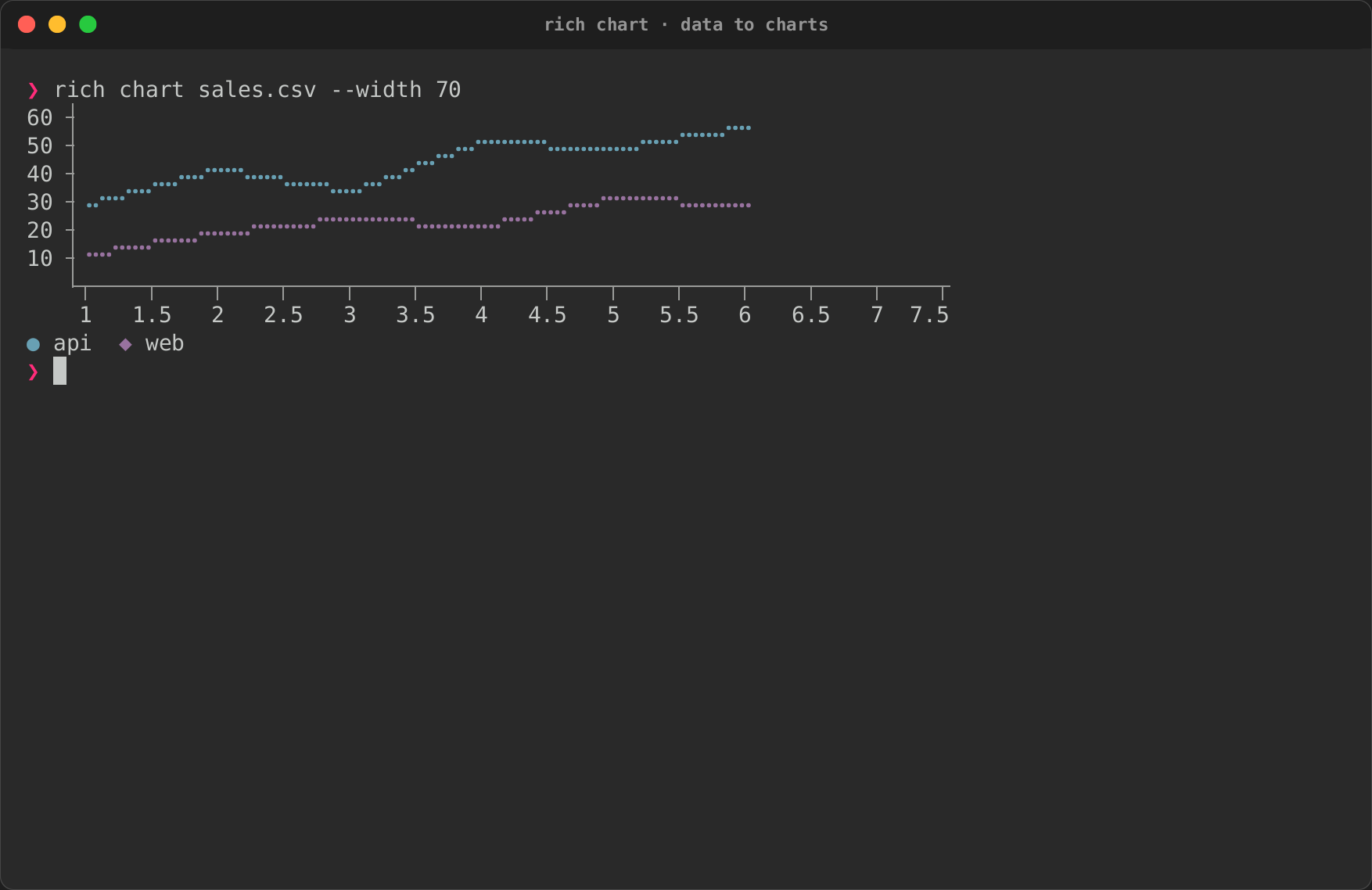

rich chart draws CSV, JSON or numbers piped in: bars labelled by a column, every numeric column as a line, a sparkline from printf, a heatmap, and a column that is not there refused with the ones that are. See the charts guide.

Bars	Lines	Piped in, and a mistake

Tape · Cast · GIF · Page

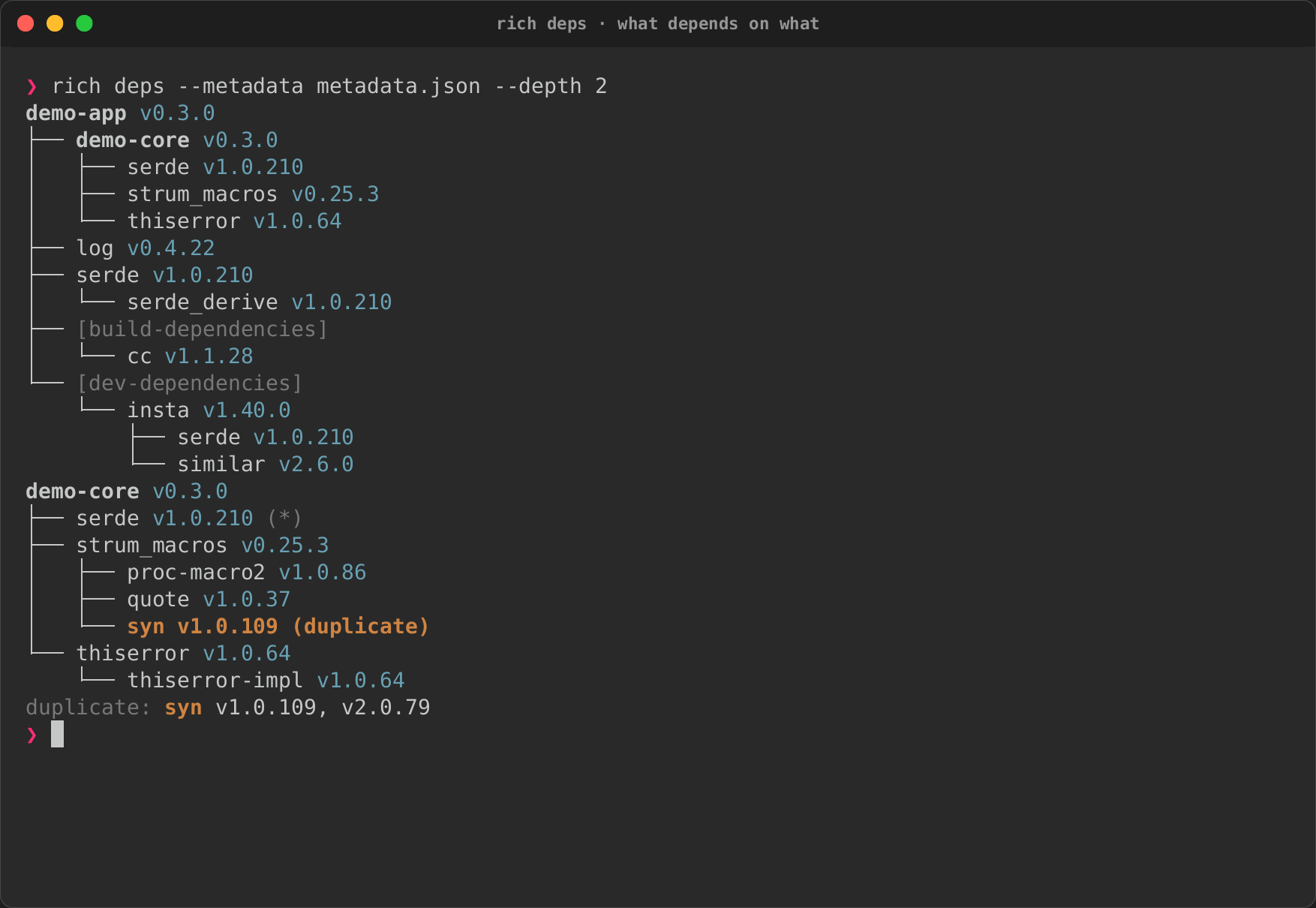

Dependency trees

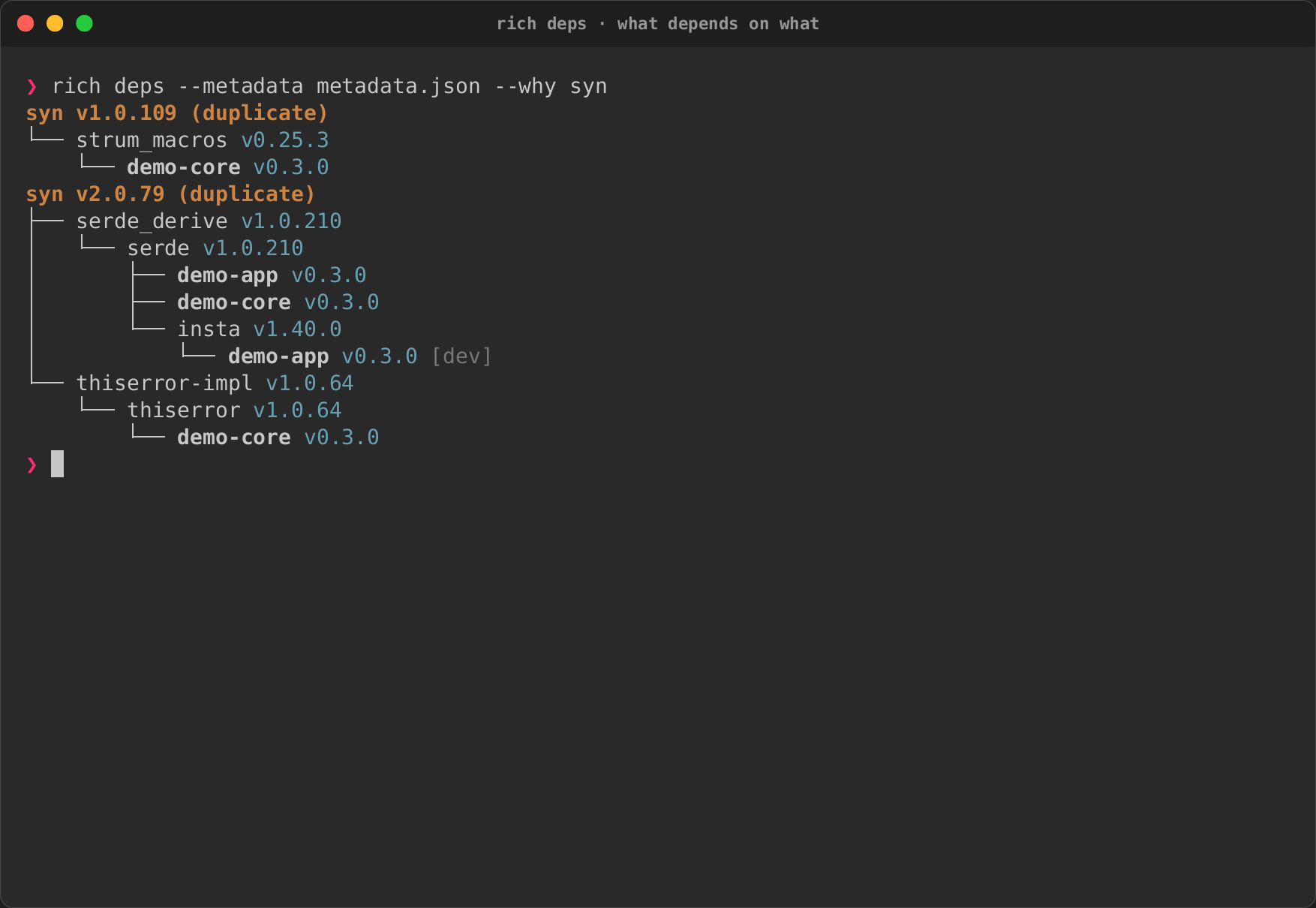

rich deps draws a Cargo workspace's dependencies from cargo metadata (here a saved copy, so the recording never changes): a tree that marks crates resolved at several versions, --why for what pulls a crate in, and --graph for the same through the diagram layout. See Dependencies and schemas.

Tree	Why syn	Graph

Tape · Cast · GIF · Page

DOT in Markdown

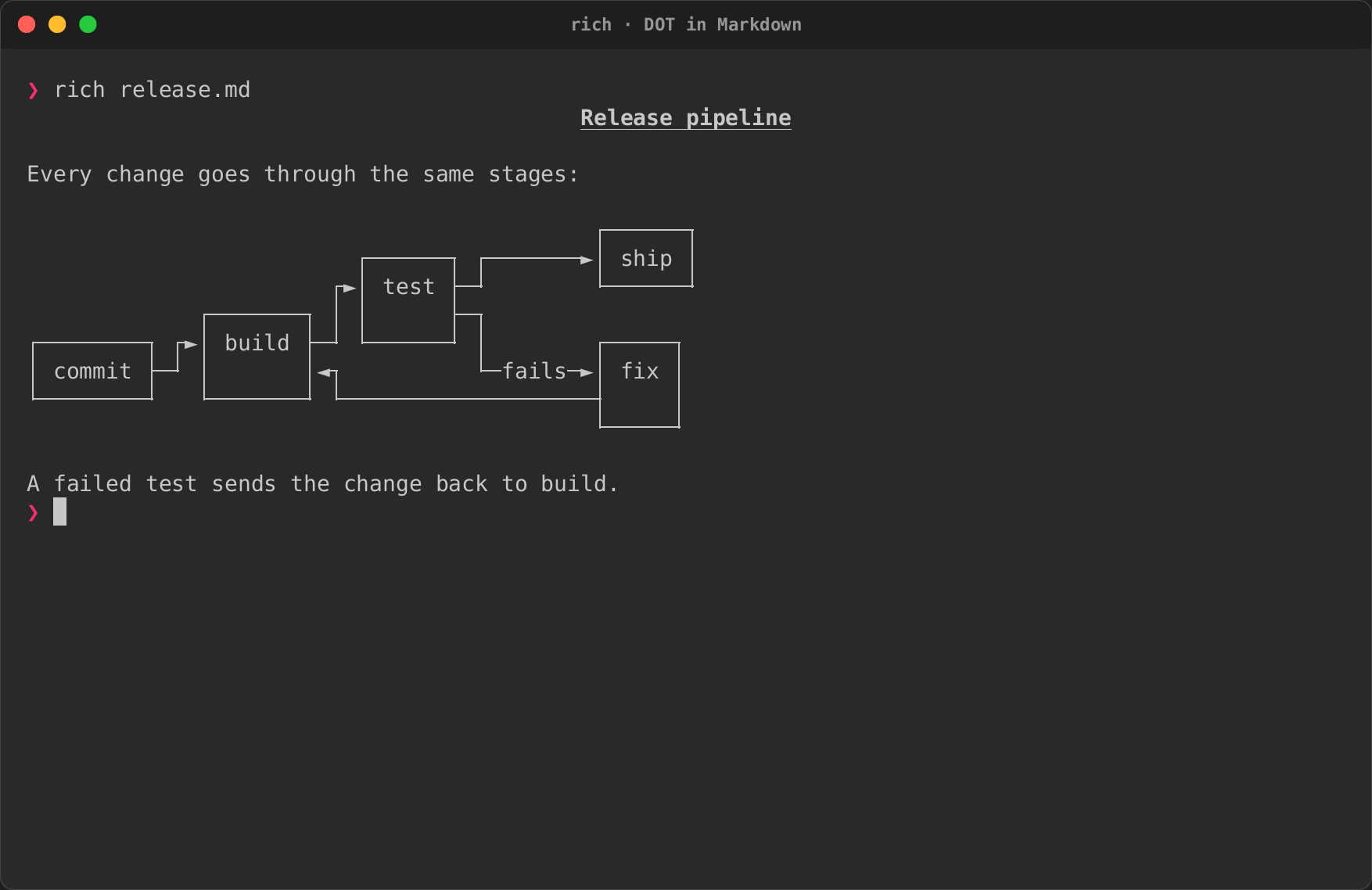

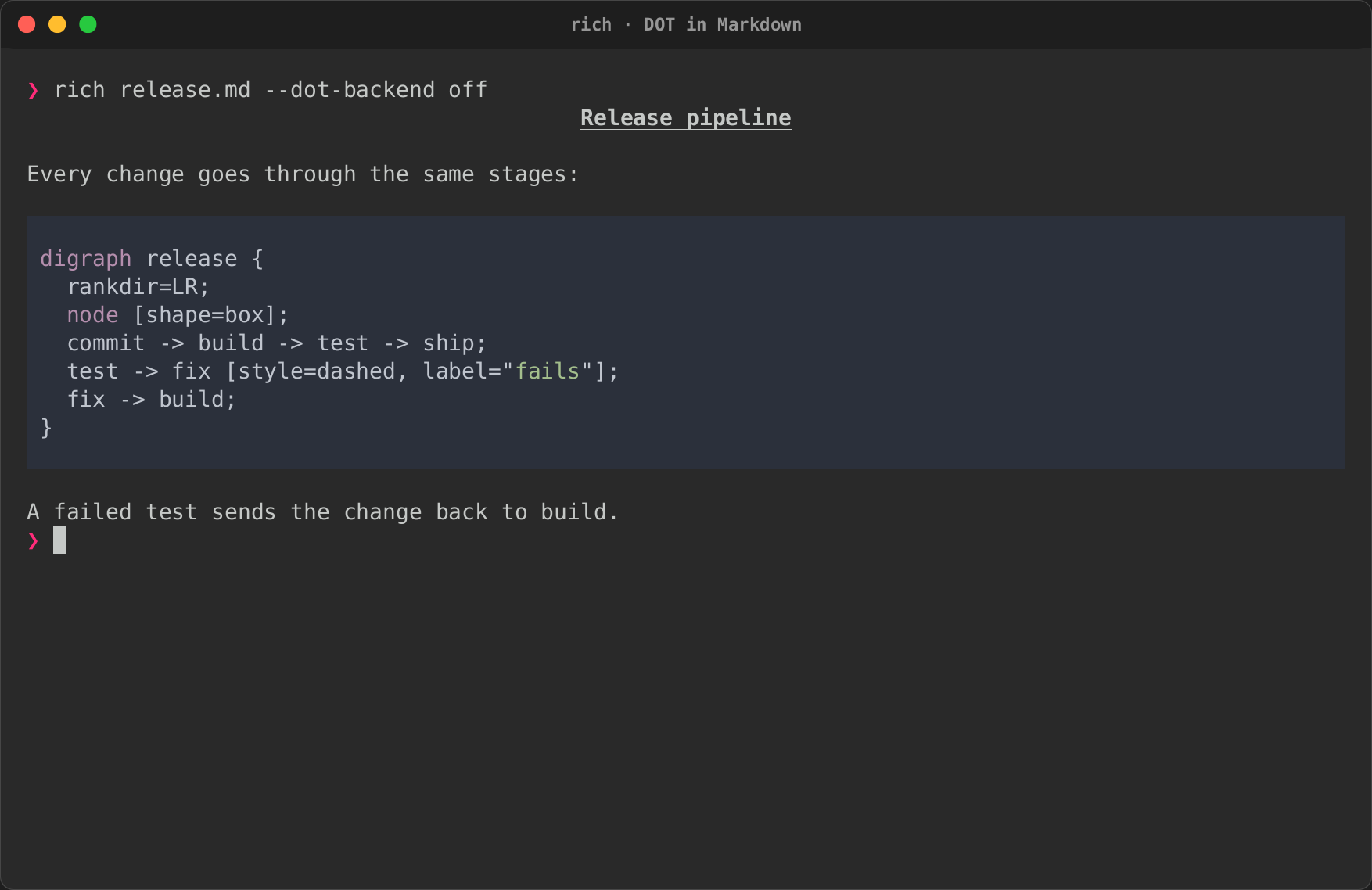

A ```dot fence in a Markdown document is drawn in place of the code block; --dot-backend off leaves it as code, as upstream renders it. See the diagrams guide.

Drawn	--dot-backend off

Tape · Cast · GIF · Page

Micro assets

Emoji-sized images in text, :micro:name:. A pseudo-terminal speaks no image protocol, so these show each asset's emoji, or its image as half-block cells with RICH_MICRO=blocks; a Kitty, iTerm2 or Sixel terminal draws the image itself in the same cells. See the built-in library for the images.

Tape · Cast · GIF · Page

Making an asset: a 128×128 PNG previewed through the pipeline, written into the user layer with rich micro create --add, listed and used.

Through the pipeline	Added and used

Tape · Cast · GIF · Page

Which mode a terminal gets, and why: rich doctor with the variables kitty and iTerm2 set.

Tape · Cast · GIF · Page

rich micro: the built-in library listed, status/loading previewed, and :micro: codes in --print --emoji text.

List	Preview	In text

Tape · Cast · GIF · Page

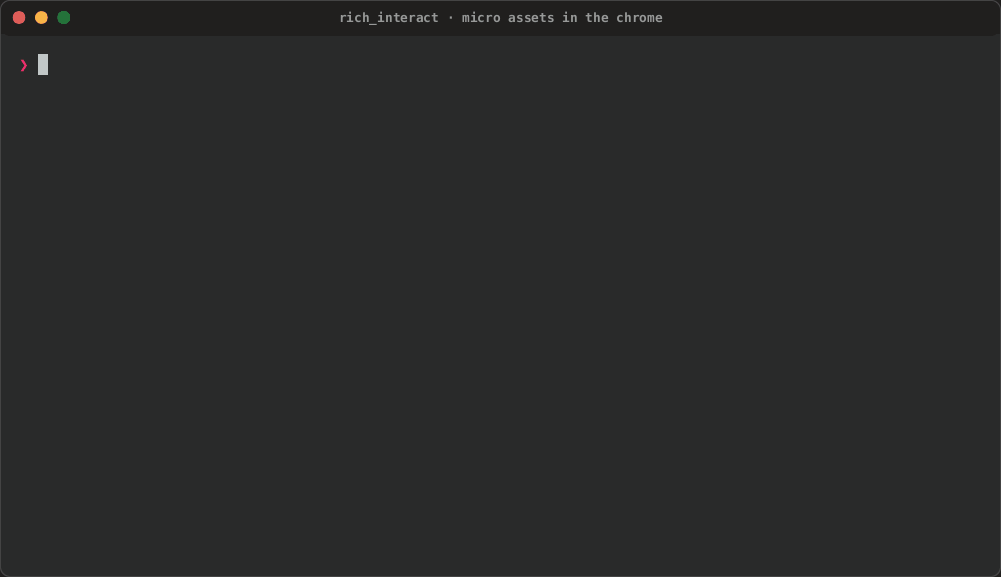

Micro assets in the interactive views: an icon per row, a badge in the status bar, an icon on the first crumb and before each of the command palette's categories, then rich explore --icons.

Chrome	Palette	Explorer

Tape · Cast · GIF · Page · Explorer tape

How it works

A tape is a short script, one step per line. This is the watch tape:

# rich --watch re-renders a file every time it is saved.
Set Title "rich --watch · re-render on save"
Set Size 90x22
Write service.json '{"service": "checkout", "replicas": 2, "healthy": true, "regions": ["eu-west-1", "us-east-1"]}'
Type "rich --watch service.json"
Sleep 300ms
Enter
Wait /"replicas": 2/
Sleep 1s
Screenshot before
Exec "sed -i 's/\"replicas\": 2/\"replicas\": 5/' service.json"
Wait /"replicas": 5/
Sleep 1s
Screenshot after
Ctrl+C
Wait /❯\s*$/

rich record runs it: the CLI's own recorder, built on the rs-rich-record crate. It starts a shell (bash unless the tape sets another) on a pseudo-terminal with a pinned environment (a temporary home and working directory, TERM=xterm-256color, truecolor, UTF-8, UTC), puts the binaries under test first on PATH, and follows the screen with a terminal emulator. Wait blocks until the screen shows the given text or matches a /regex/, so a tape never depends on a fixed delay.

From one run it writes, under docs/media/tapes/<tape>/:

• for each Screenshot: a PNG, an SVG with selectable text, and a plain-text grid of the screen. The SVG and the text grid come from the same frame as the rest of rich's export, so a screenshot looks like any other rich SVG;
• the whole session as an asciinema cast, with the keys pressed;
• a GIF with the keys shown as they are pressed, and an MP4 when FFmpeg is installed;
• an HTML page (<tape>.html, the Page links above): a small player and the screenshots, all inline, with text you can select. It fetches nothing and plays only when asked;
• provenance.json: the tape's fingerprint, the recorder and rich versions, the commit, and the screenshots written, so the next run removes only the ones the tape no longer takes.

Box-drawing characters are drawn as lines rather than font glyphs, so table borders join between rows, and block, quadrant and braille characters are drawn as shapes, so images and progress bars have no seams. Text uses DejaVu Sans Mono and emoji use Twemoji, in colour, both embedded in the recorder, so a PNG or GIF looks the same on every machine; --font FILE chooses another text font. An emoji cluster such as 👩‍👧, 👍🏽, ❤️ or 🇺🇸 takes one cell as wide as rich measures it, so the columns after it line up.

Step	Meaning
Set Size 100x28, Set Title "…", Set TypingDelay 40ms, Set Timeout 15s, Set Env NAME value	Configure the session
Set WindowFrame off, Set Caption "…", Set KeyOverlay off	Presentation: leave out the window frame (title bar and buttons) around PNGs, SVGs and video; add a line of text under them and under the page's player; leave out the keys shown in video and the player. The frame and the overlay are on by default
Output gif png, Output demo.html	Write only these formats (png, svg, cast, gif, mp4, html; text grids always), or name the file a per-tape format goes to, as in VHS. Several words or lines add up; --format can still narrow them
Set Shell zsh	Run in bash (the default), zsh, fish or sh, each without your profile or rc files and with the same ❯ prompt. CI records in all four
Write FILE "text", Exec "command"	Prepare or change files, outside the terminal
Type "text"	Type into the terminal, one character at a time
Enter, Tab, Space, Backspace, Escape, arrows, Home, End, PageUp, PageDown, Ctrl+C	Press a key; a number after it repeats it
Wait "text", Wait /regex/	Wait until the screen shows it, or has since the previous step began (so fast output that scrolls past is not missed)
Sleep 500ms	Pause the recording
Screenshot NAME	Save the screen
Hide, Show	Leave steps out of the recording
Resize 80x24	Resize the terminal
Mask /regex/ "text"	Replace matches in the text grids --check compares, for output that differs on every run such as temporary paths or timings; images keep what was shown

Shells and emoji

A tape can type and print emoji, and the recorder draws them as the program measures them: rich, and modern terminals, give 👩‍👧 two cells. A shell's line editor may not agree. bash, zsh and fish take character widths from the C library, which counts 👩‍👧 as four, so moving the cursor back across a joined emoji at the prompt (Left, Home, Backspace) redraws the line in the wrong place, as it does in a real terminal. The command that runs is still right; only the echoed line is garbled. Keep such text out of line editing: put it in a file with Write and run that, or have the program print it.

The docs' tapes use bash, as CI does. macOS ships bash 3.2, whose line editing is older than CI's; rich record warns when it finds a bash older than 4, and a newer one (brew install bash) first on PATH gives recordings that match.

Regenerate everything, or check it as CI does:

cargo build -p rs-rich-cli -p rs-rich-interact --bins --examples
rich=target/debug/rich
$rich record --bin-dir target/debug --output docs/media/tapes docs/tapes/*.tape
$rich record --check --bin-dir target/debug --output docs/media/tapes docs/tapes/*.tape

Record your own

rich record is not limited to rich: a tape can drive any program you can start from a shell, in bash, zsh, fish or sh (Set Shell). Write a tape, then:

rich record demo.tape                       # writes recordings/demo/
rich record --format gif,png demo.tape      # only the GIF and the PNGs
rich record --format html demo.tape         # the page: a player and the screenshots
rich record --window-frame off --caption 'Save to redraw' demo.tape
rich record --check demo.tape               # fail if a screenshot changed

Option	Meaning
--output DIR	Write to DIR/<tape>/ (default recordings)
--check	Compare each screenshot's text with DIR/<tape>/<name>.txt instead of writing, and report screenshots the last write listed that the tape no longer takes; exits non-zero on any difference
--format LIST	Any of png, svg, cast, gif, mp4, html, or all (the default). Text grids are always written. A tape's Output narrows it further
--window-frame on\|off, --caption TEXT, --key-overlay on\|off	Override the tape's Set WindowFrame, Set Caption and Set KeyOverlay
--no-video	Skip the GIF, the MP4 and the HTML page's player
--bin-dir DIR	Put DIR first on the session's PATH (default: the directory of the running rich)
--font FILE	Draw PNG and GIF text in another font

$REPO in a tape is the directory rich record was started in, so a tape can copy fixtures (Exec "cp $REPO/fixtures/data.json ."). Linux and macOS are supported; on Windows it builds through ConPTY but needs the tape's shell on PATH, and is experimental. Use the recorder from Rust through the rs-rich-record crate: tape::parse, record::record, then record::write or record::check.

Limits, and what a tape can do

A tape is code: record only tapes you trust. Exec runs its command with sh, and everything Type sends runs in the shell, with your user's permissions. The recorder pins the environment and works in a temporary directory so recordings repeat, not to contain the tape.

What the recorder does limit, so a mistake fails clearly rather than filling the disk or memory:

Limit
Terminal size	Set Size and Resize from 2x2 to 500x200
Durations	Sleep, Wait and Set Timeout at most 3600s
Write	A relative path inside the working directory: no /…, no ..
Exec	60 seconds; the first 64 KiB of its error output is reported
Tape names	A tape's name is its output directory: ...tape (named ..) is refused
Stale screenshots	Removed only when provenance.json lists them from an earlier run; other files in the output directory are never touched
Frames	At most 12 a second; a burst over 32 KiB is kept as a repaint of the screen
Video	The first 5 minutes; a GIF, MP4 or HTML page of a longer recording is an error (use --no-video)
Images	At most 100 million pixels; a GIF at most 65535 pixels a side
